北米Model "A1470BE-A" EDITED: 2021/ 8/ 2

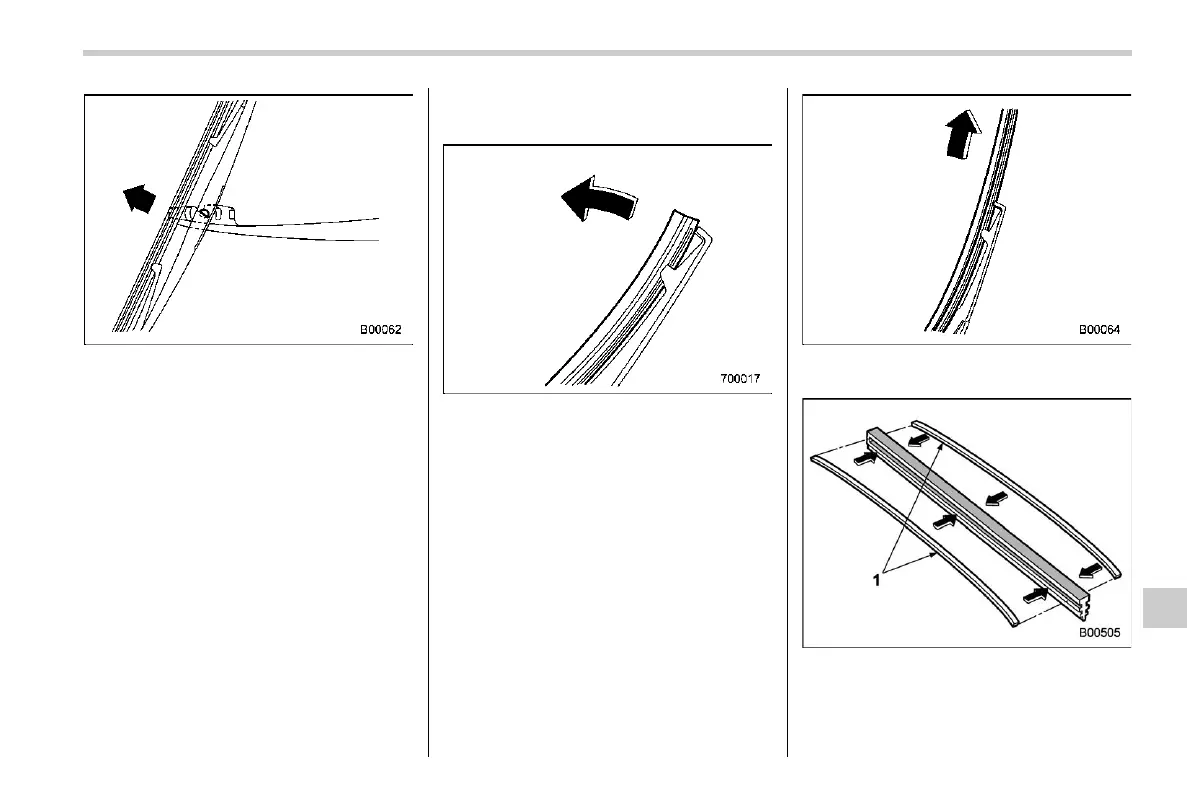

3. Pull the wiper blade assembly toward
you to remove it from the wiper arm.
4. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
5. Hold the wiper arm by hand and slowly
lower it in position.
& Rear window wiper blade
rubber
S11AZ04
1. Pull out the end of the blade rubber
assembly to unlock it from the plastic
support.
2. Pull the blade rubber assembly out of
the plastic support.
1) Metal spines
3. If the new blade rubber is not provided
with two metal spines, remove the metal
spines from the old blade rubber and install
– CONTINUED –
Replacement of wiper blades
451
11
Maintenance and service
To Next Page
