Subaru ER12 User Manual

- 15 -
Step Parts to remove Remarks and procedures Fasteners
5
Carburetor, Insulator Remove the linkage bushing from governor rod
(1) Loosen the and remove the governor lever from
the governor shaft
There is no need to remove the
bolt
(2) Remove the governor spring
(3) Remove the governor rod and the rod spring from
the carburetor
Remove the carburetor from the cylinder head
Remove the insulator
10mm box spanner or
spanner
M6×20mm:1pc
M6 Nut:1pc

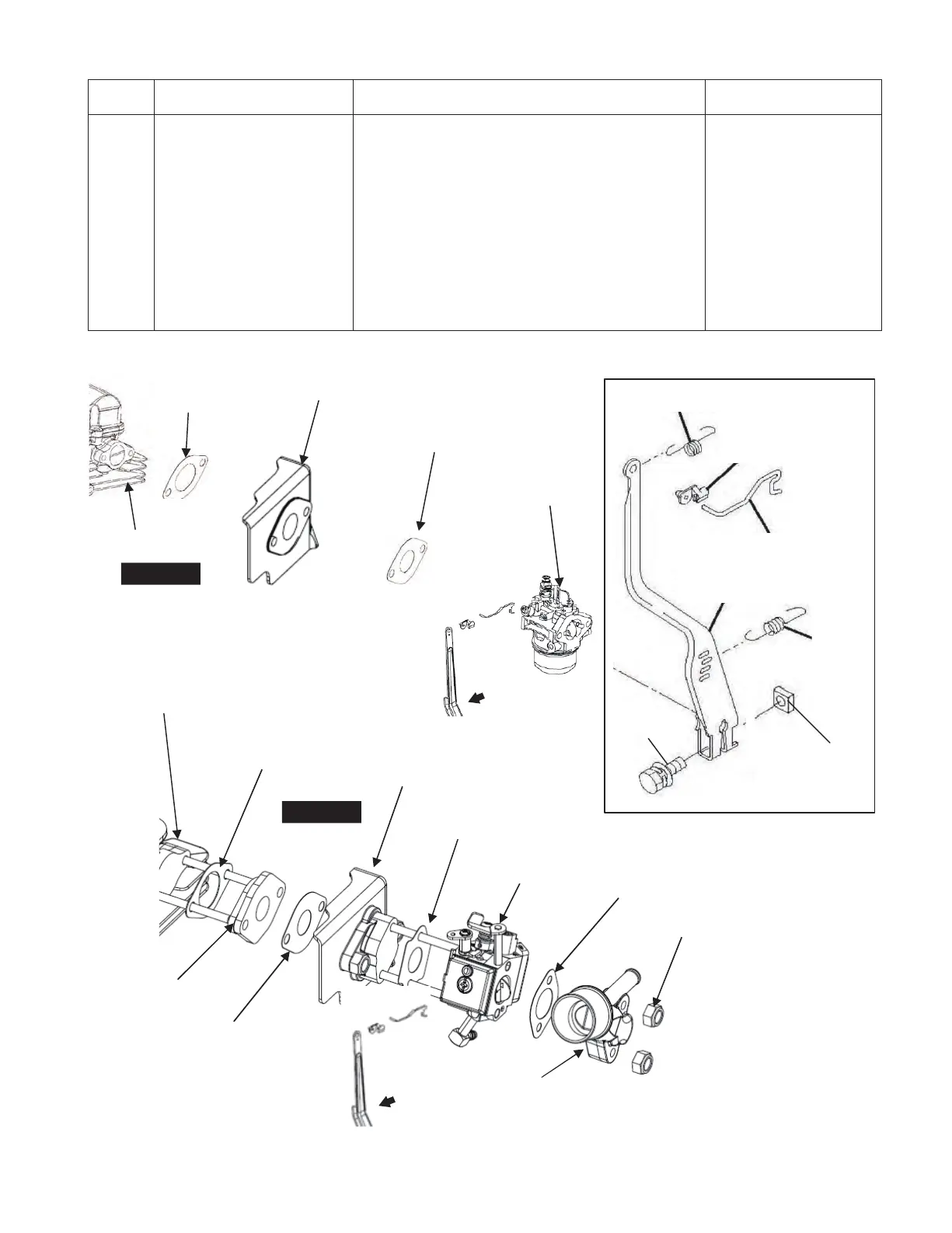

CYLINDER HEAD
GASKET
(INSULATOR)
BLACK
GASKET
(CARBURETOR)
BROWN
GASKET
(INSULATOR)
BLACK
GASKET
(CARBURETOR)
BLACK
CARBURETOR
(DIAPHRAGM TYPE)
INSULATOR 1
SELF LOCK NUT
INTAKE PIPE
INSULATOR 2
STEP 5
A
CYLINDER HEAD
GASKET
(CARBURETOR)
BROWN
CARBURETOR
(FLOAT TYPE)
INSULATOR
STEP 5
A
GASKET
(INSULATOR)
BLACK
ROD SPRING
LINKAGE BUSHING
GOVERNOR ROD
GOVERNOR LEVER
GOVERNOR
SPRING
BOLT
NUT
DETAIL A
