- 16 -
Step Parts to remove Remarks and procedures Fasteners
6

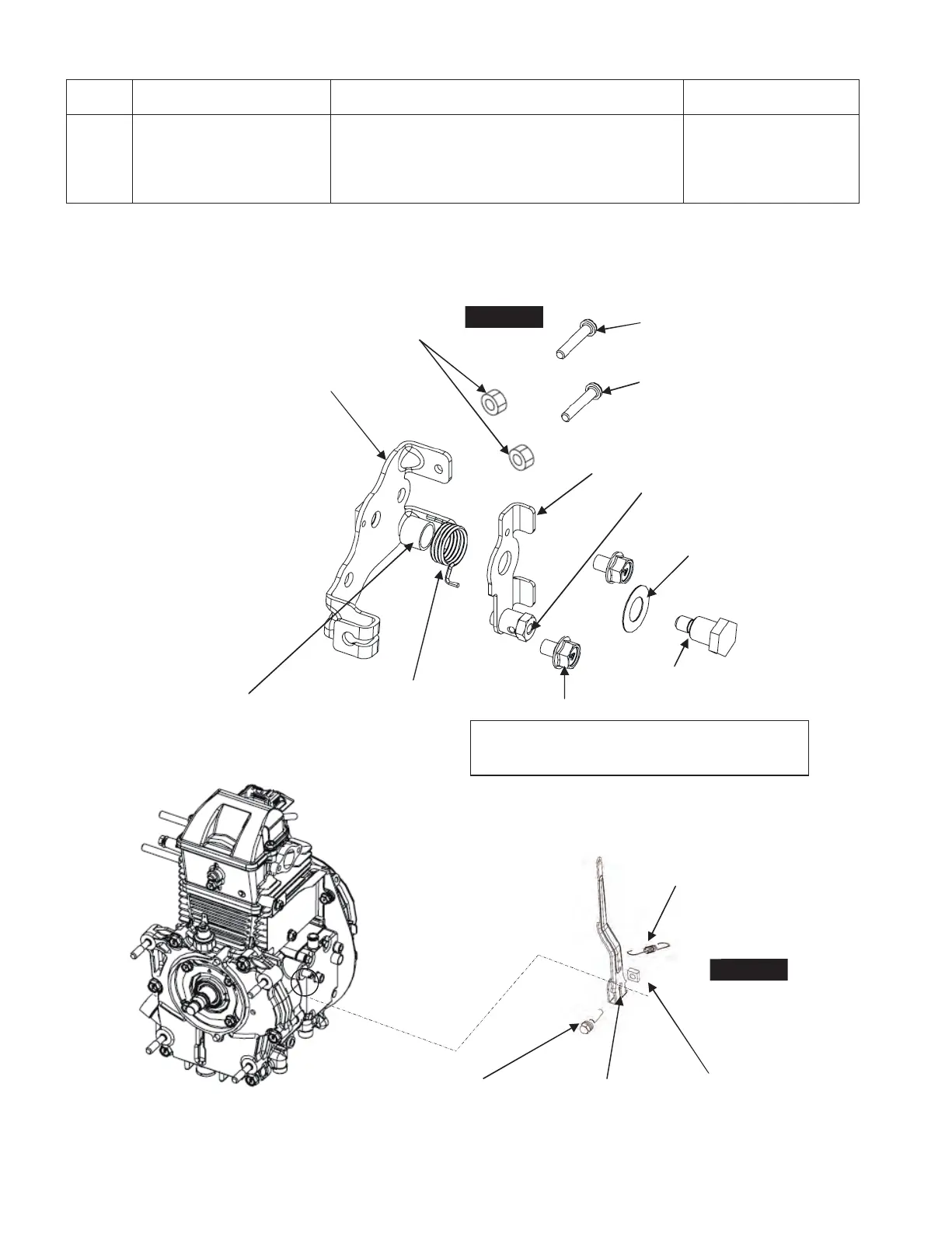

Speed control lever and
Base plate
Remove the speed control lever and base plate from
the crankcase (If necessary)
10mm box spanner
M6×10mm:2pcs
14mm box spanner
Pivot bolt:1pc
M6×20 BOLT
SPEED CONTROL AY
RETURN SPRING
SPACER
GOVERNOR SPRING
GOVERNOR LEVER
M6 NUT
STEP 6
SET SCREW (HIGH SPEED)
SET SCREW (LOW SPEED)
PIVOT BOLT Tightening torque : 7.0 - 9.0 N•m
(70 - 90 kgf•cm)
(5.1 - 6.5 ft•lb.)
SPEED CONTROL
LEVER
SWIVEL (NUT) M4 x 0.7
PIVOT BOLT
BASE PLATE
M6×10 FLANGE BOLT:2pcs.
FRICTION WASHER
(NYLON)
NUT
STEP 6
