Step Parts to remove Remarks and procedures Fasteners
7
Cylinder baffle Remove the Cylinder baffle (If necessary) 10 mm box spanner
M6 x 10 mm : 3 pcs
8
Breather Remove the breather cover and plate (If necessary) 8 mm box spanner
M6 x 20 mm : 4 pcs
9
Ignition coil Remove the spark plug cap from the spark plug
Disconnect wire of oil pressure switch
Remove the ignition coil from the crankcase
10 mm box spanner
M6 x 25 mm
：
2 pcs

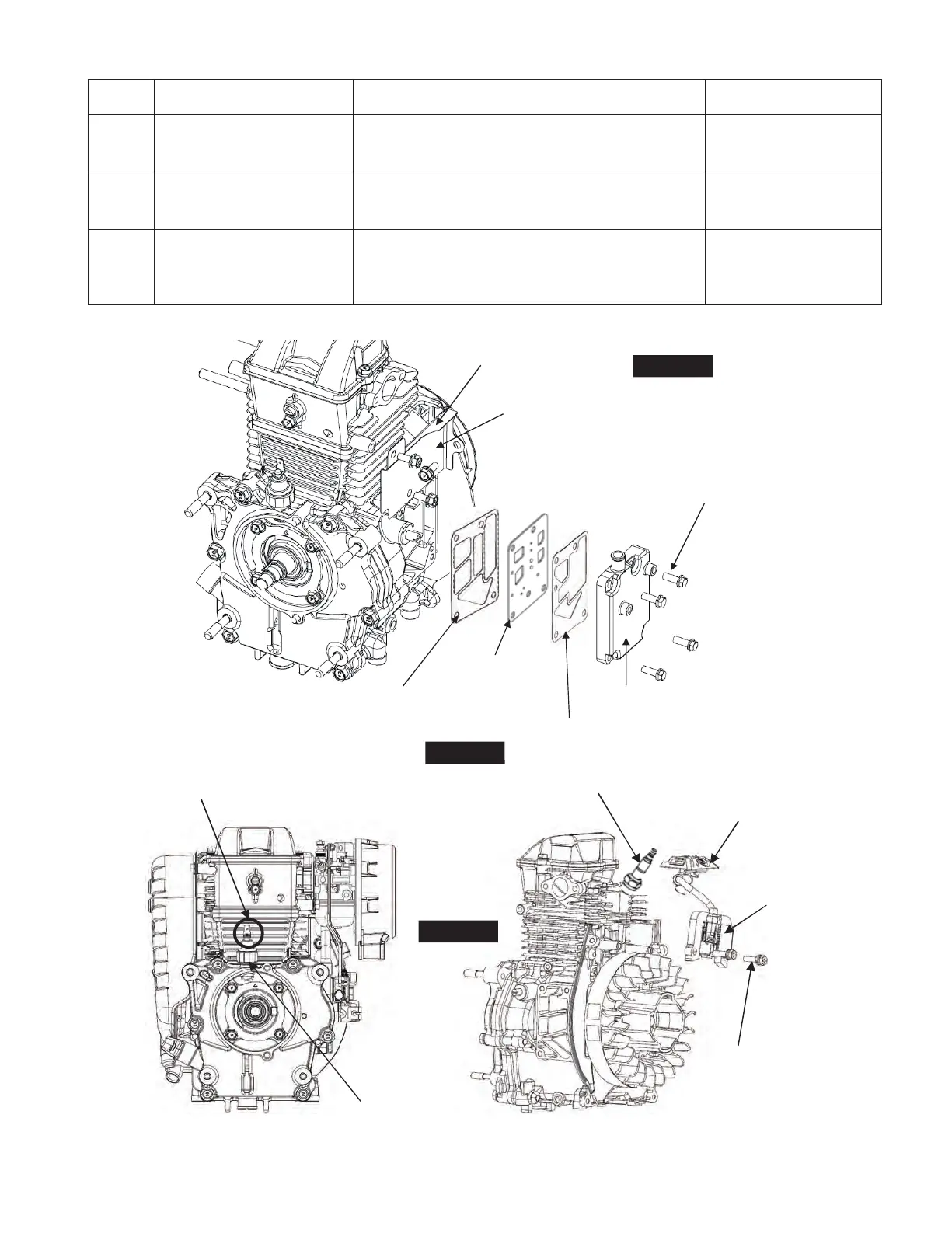

CYLINDER BAFFLE
M6×10
FLANGE BOLT:3pcs.
M6×20
FLANGE BOLT:4pcs.
GASKET
(BREATHER PLATE)
BREATHER
PLATE
GASKET
(BREATHER COVER)
BREATHER COVER
STEP 7
STEP 8
from the portion
SPARK PLUG
SPARKPLUG
RUBBER CAP
IGNITION COIL
M6×20 BOLT : 2pcs.
SWITCH
(OIL PRESSURE)
STEP 9
To Next Page
