- 23 -
Step Parts to remove Remarks and procedures Fasteners
18

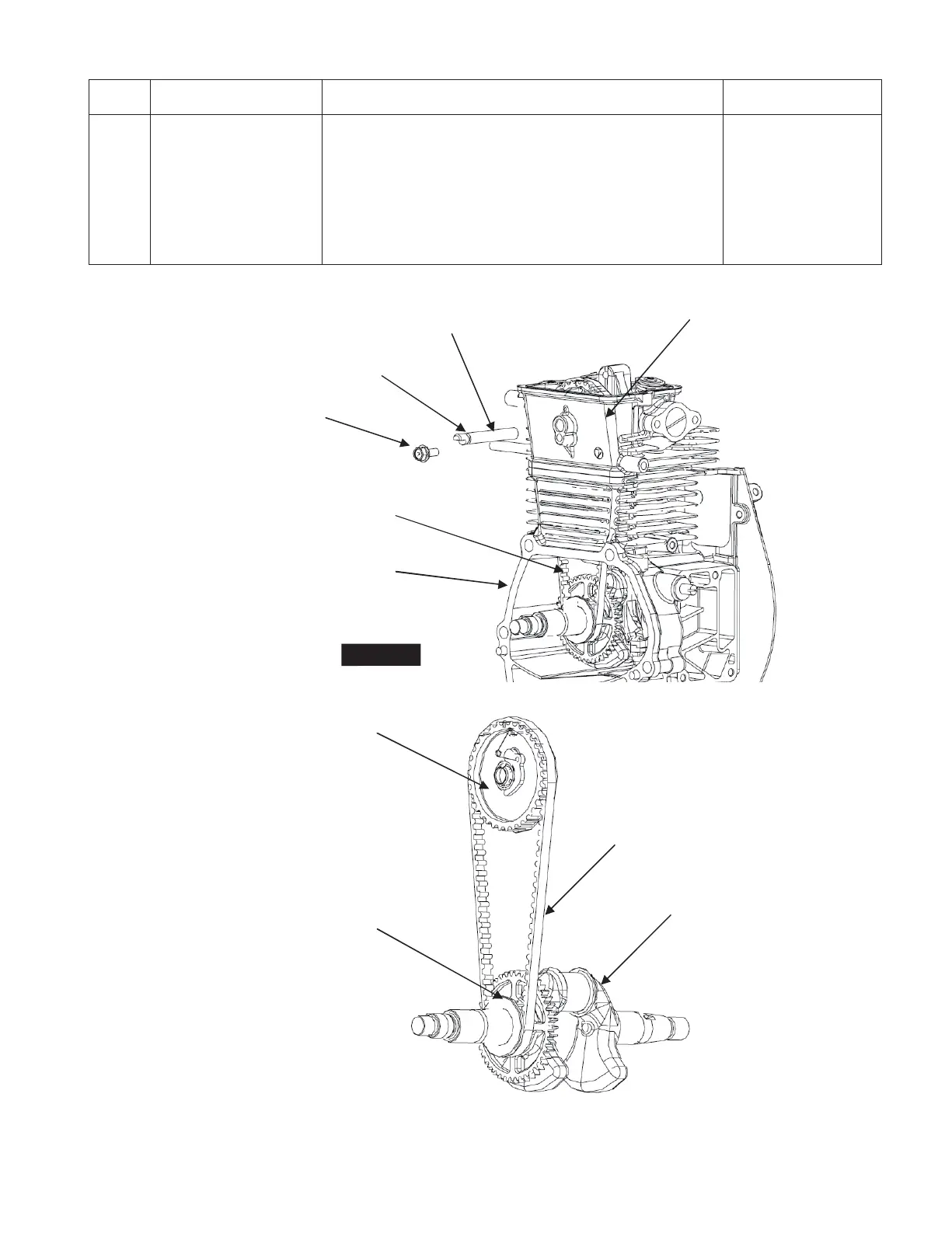

Campulley (1) Remove the retaining bolt of pin (campulley) from the
cylinder head
(2) Remove the pin (campulley), taking care not to scratch the
O-ring
(3) Remove the timing belt from the campulley and then take
out the campulley
(4) Remove the timing belt from the crankshaft
10mm box spanner
M6×8mm:1pc
Pliers
O-RING
(SYNTHETIC RUBBER)
PIN
(CAMPULLEY)
M6×8
FLANGE BOLT : 1pc.
CRANKCASE
TIMING BELT
CYLINDER HEAD
STEP 18
TIMING BELT
CAMPULLEY
CRANKSHAFT
DRIVEPULLEY
