Subaru ER12 - Page 26

- 22 -
Step Parts to remove Remarks and procedures Fasteners
16
Switch (Oil pressure) Remove the oil pressure switch (If necessary) 24mm spanner
17
Plug and suction pipe Remove the plug and suction pipe from the main
bearing cover (If necessary)
M5×12mm:2pcs

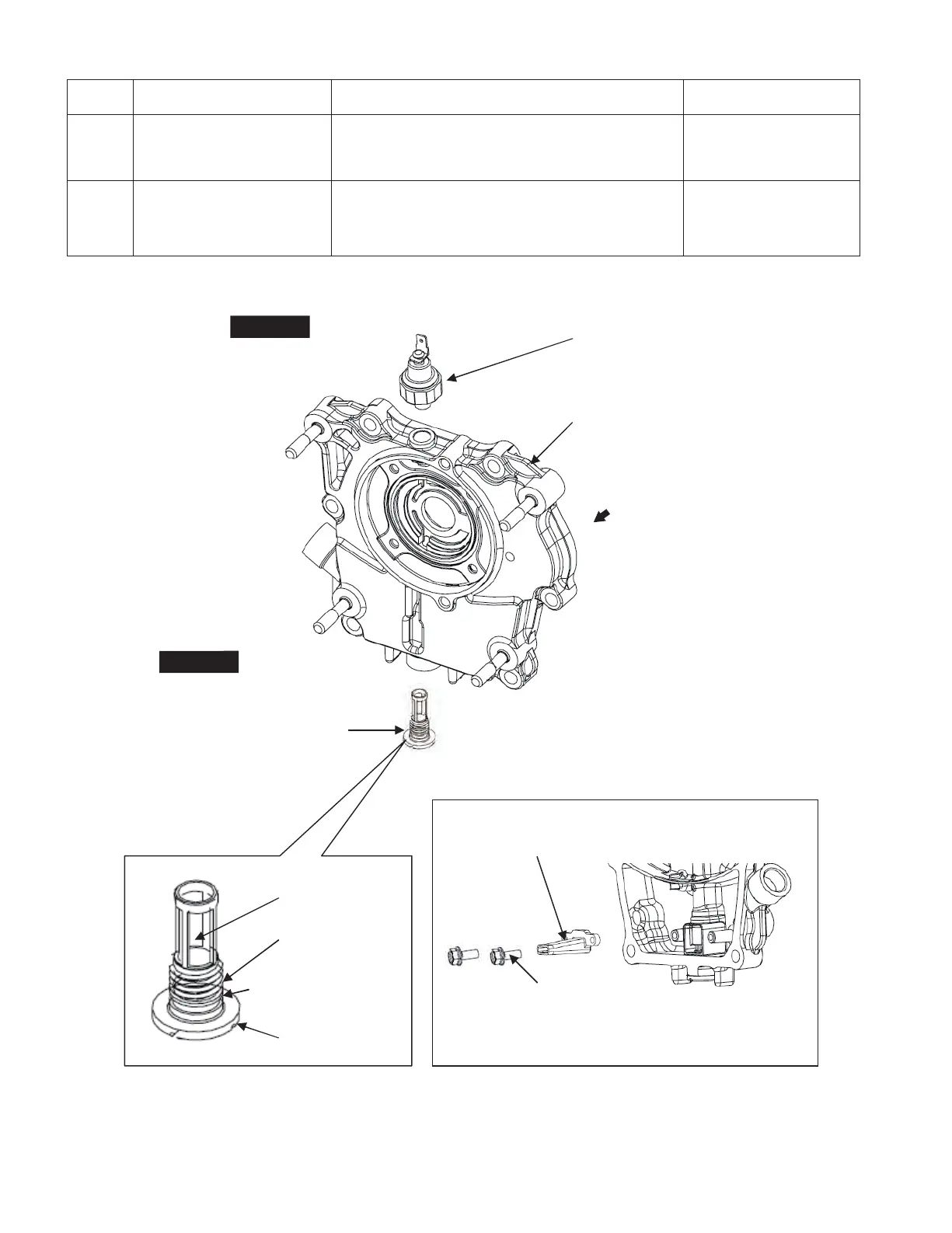

PLUG AY
(OIL FILTER)
MAIN BEARING COVER
SUCTION PIPE
M5×12 SCREW : 2pcs.
O-RING
(SYNTHETIC RUBBER)
PLUG AY
M14
MESH SCREEN
SWITCH
(OIL PRESSURE)
STEP 16
STEP 17
A
VIEW A
