(18) BAFFLE
Mount the cylinder baffle to the crankcase with
the bolts
M6 × 10 mm bolt : 3 pcs
(17) BREATHER

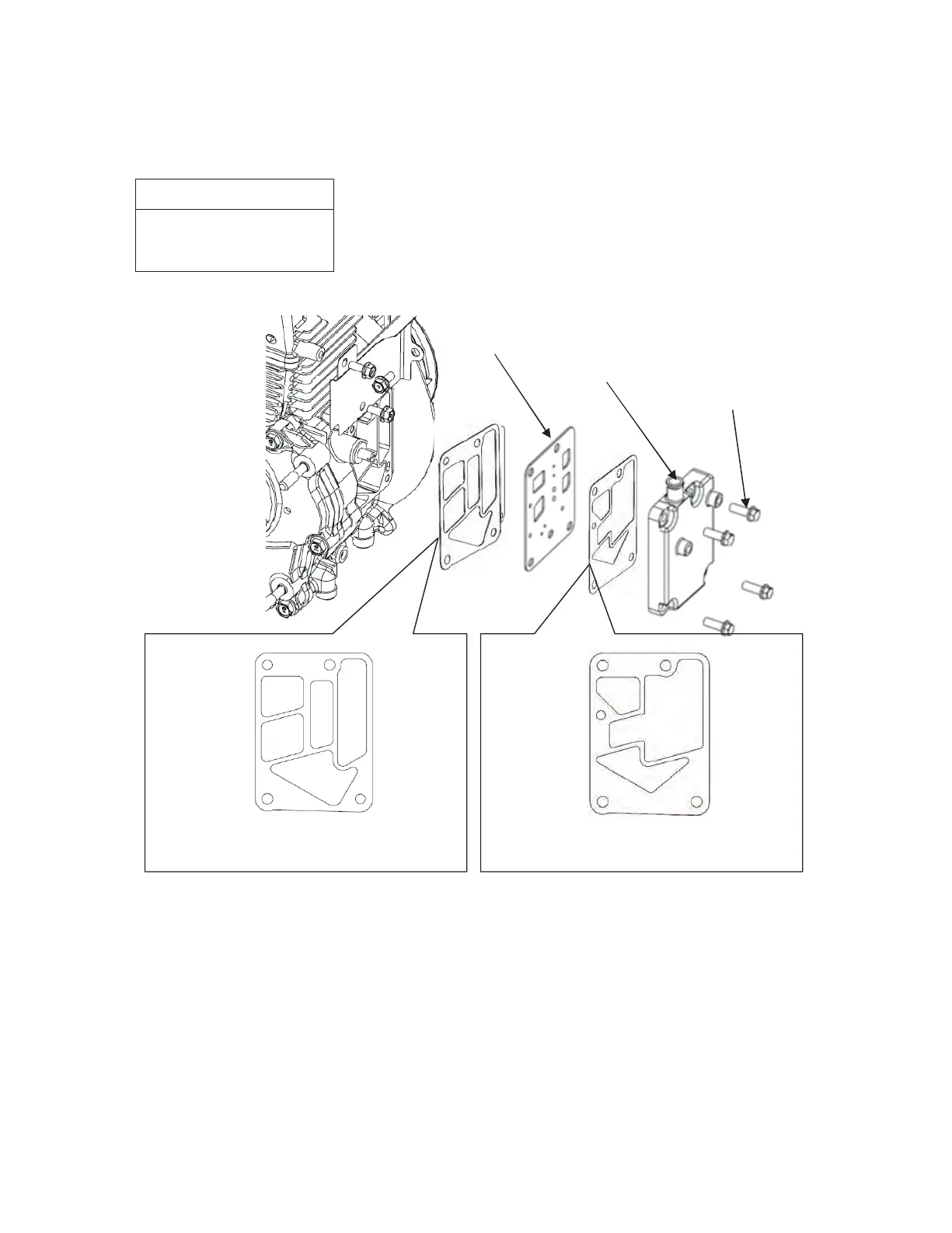

Assemble gasket (breather plate), breather plate, gasket(breather cover) refer to the following
M6 × 20 mm flange bolt : 4 pcs
BREATHER COVER
BREATHER PLATE
M6×20 FLANGE BOLT:4pcs.
FLYWHEEL
SIDE
FLYWHEEL
SIDE
GASKET (BREATHER PLATE) GASKET (BREATHER COVER)
P.T.O.SHAFT
SIDE
P.T.O.SHAFT
SIDE
Tightening torque
70 - 90 N
・
m
(70 - 90
kgf
・
cm )
(51 - 65 ft
・
lb)
