- 41 -
(23) RECOIL STARTER
Attach recoil starter to crankcase
Tighten flange bolts
M6 x 20 mm flange bolt : 2 pc
M6 x 14 mm flange bolt : 1 pcs
Insert the high tension cord from the ignition
coil into the notch of the blower housing so as
not to pinch the cord
(24) STOP SWITCH
(1) Install stop switch to blower housing
(2) Connect wires referring to the wiring diagram
(2) Mount the muffler cover on the muffler
M6 × 18 mm bolt : 3 pcs
- End of the reassembly -

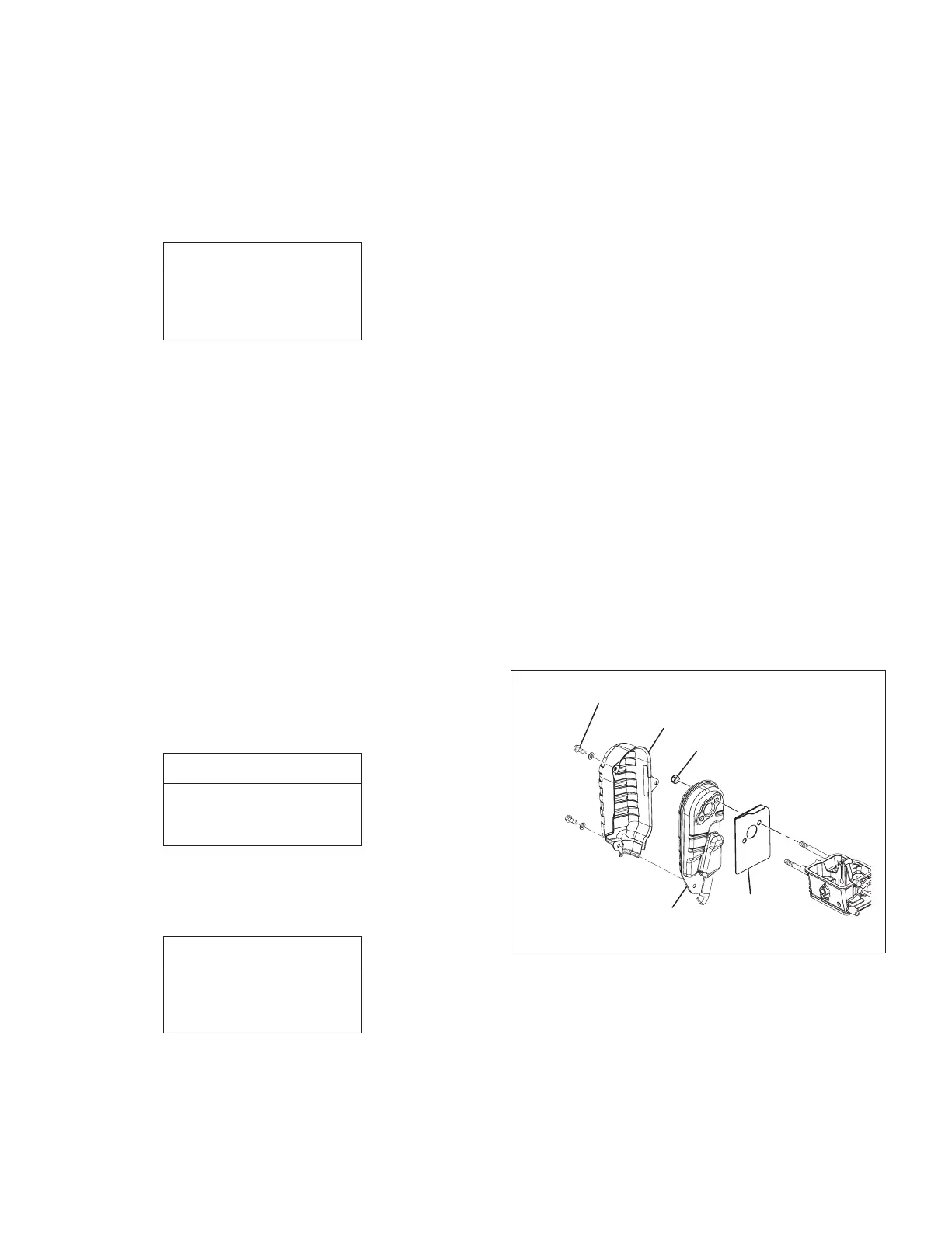

(25) MUFFLER
 (1)Mountthemufflerandthegasketonthe
cylinderhead.
Self lock nut : 2 pcs
Tightening torque
190 - 210 N
・
m
(190 - 210
kgf
・
cm )
(137 - 152 ft
・
lb)
Tightening torque
70 - 90 N
・
m
(70 - 90
kgf
・
cm )
(51 - 65 ft
・
lb)
Tightening torque
70 - 90 N
・
m
(70 - 90
kgf
・
cm )
(51 - 65 ft
・
lb)
MUFFLER COVER
MUFFLER
GASKET
(MUFFLER)
SELF LOCK NUT : 2 pcs.
M6 x 18 BOLT : 3 pcs.
