Subaru ER12 - 12-1-2 Reassembly Procedure

- 59 -
(2) Remove the components (Fig 12-3)
-1 Grip the case and loosen the set screw
-2 Take out the set screw, the ratchet guide, the
friction spring and the ratchet in that order
(3) Remove the reel (Fig 12-3)
-1 Hold down the reel gently to keep it from
escaping from its case and rotate it slowly
back and forth by quarter turns until it moves
smoothly
-2 Lift the reel up little by little and take it out of
the case
-3 If the spring is about to pop out of the reel,
repeat steps (3)-1 and (3)-2
12-1-2 REASSEMBLY PROCEDURE
(1) Put the reel back into the case
-1 Apply grease to the surface of the case
(Fig12-4)
-2 Adjust the position of the inner end of the
spring in the reel (Fig 12-5)
-3 Hold the reel in such a way that the inner end
of the spring hooks onto the shaft hook and
then place the reel carefully back into the
case
-4 Turn the reel gently counterclockwise to
confirm that the spring is hooked
GREASE
SHAFT HOOK
Position where the inner end of the
spring touches to the rib of the bearing.
SET SCREW
RATCHET
GUIDE
FRICTION
SPRING
RATCHET
REEL
STARTER
KNOB
STARTER
CASE
STARTER SHAFT
(SHAFT HOOK)

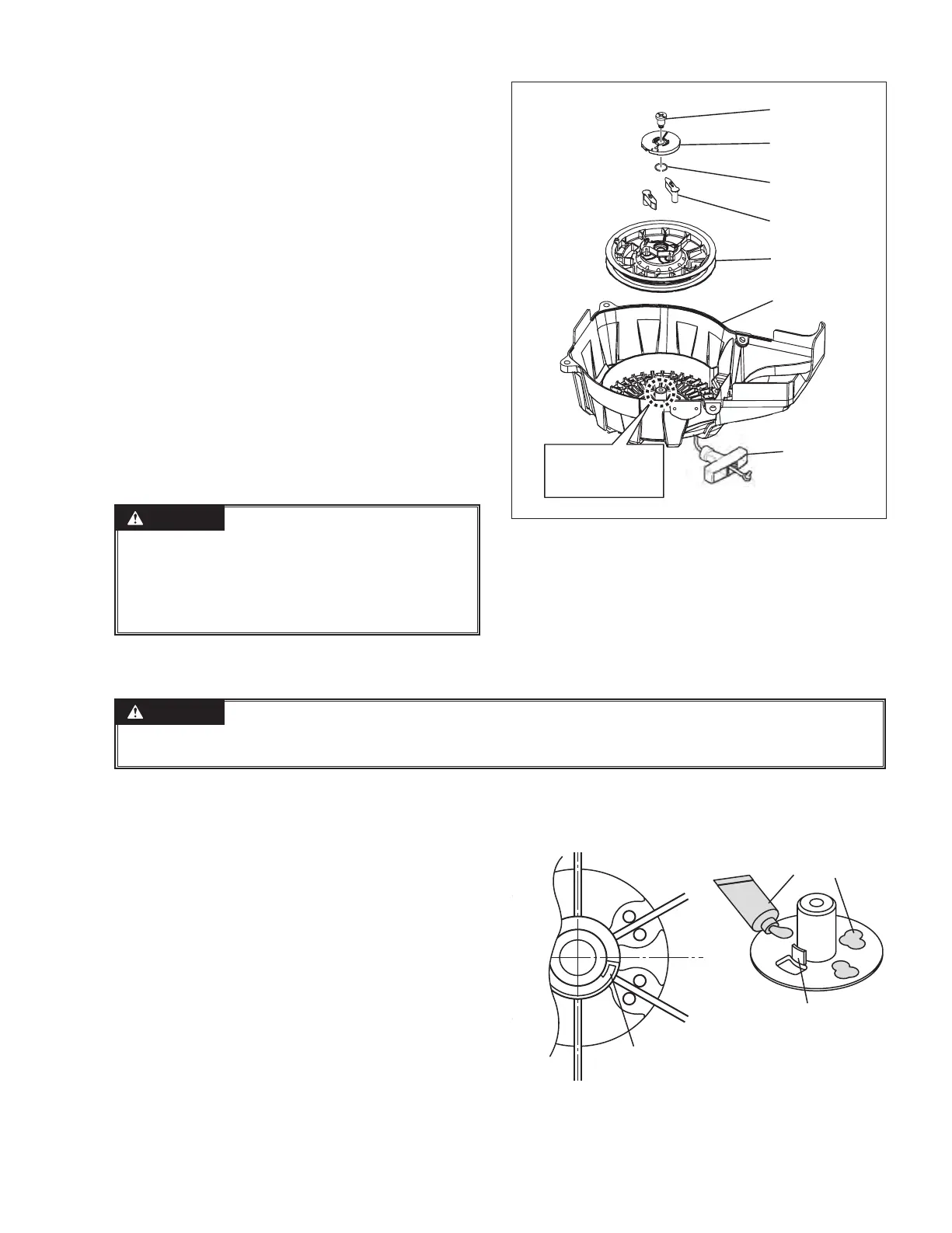

Fig12-3
Fig12-5
Fig12-4
Disassembly is completed
Put on the protective glasses prior to start reassembly.
Since the spring is stored in the reel,
make sure not to drop or shake the reel
after removing it. Place it on a level
surface such as a table.
CAUTION
CAUTION
