Engine compartment overview

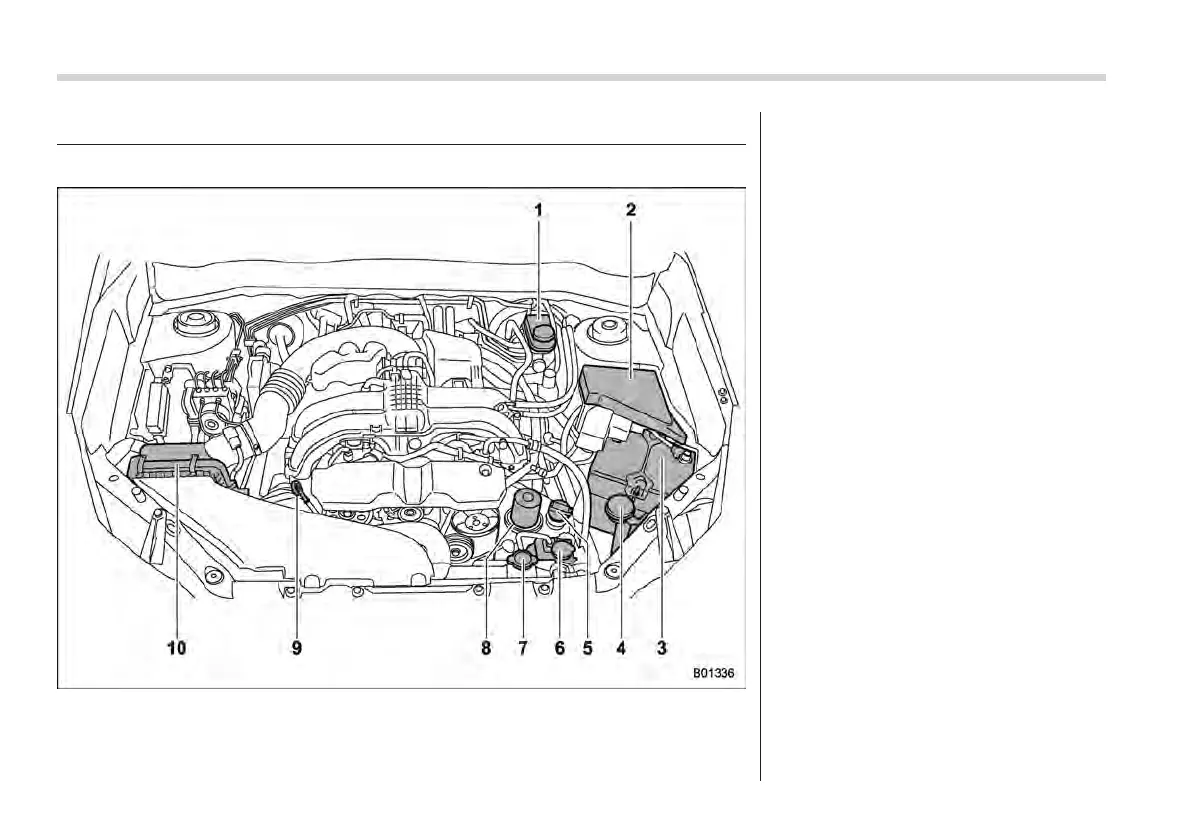

& Non-turbo petrol engine models
The illustration above is for left-hand drive models. The location of item No. 1 (Brake and
clutch fluid reservoir) for right-hand drive models is the opposite of that shown here.
1) Brake fluid reservoir/Clutch fluid reservoir
(MT) (page 11-27)
2) Fuse box (page 11-46)
3) Battery (page 11-44)
4) Windshield washer tank (page 11-38)
5) Engine oil filler cap (page 11-15)
6) Engine coolant reservoir (page 11-20)
7) Radiator cap (page 11-20)
8) Engine oil filter (page 11-17)
9) Engine oil level gauge (page 11-15)
10) Air cleaner case (page 11-22)
