& Replacing the air cleaner
element
Replace the air cleaner element according
to the maintenance schedule in the
“Warranty and Maintenance Booklet”. Un-
der extremely dusty conditions, replace it
more frequently. It is recommended that
you always use genuine SUBARU parts.

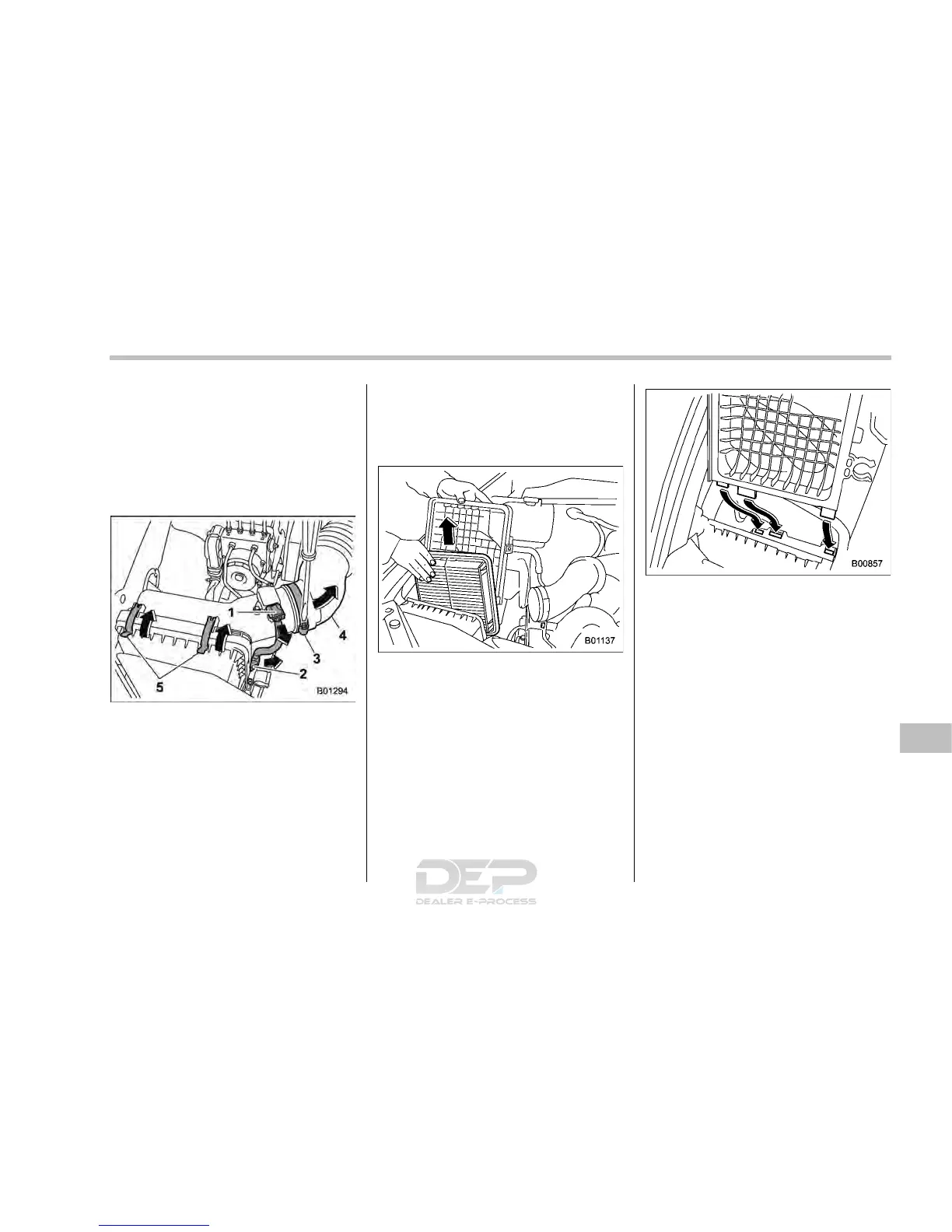

1) Connector
2) Clip
3) Clamp
4) Air intake boot
5) Clip
1. Unplug the connector that is attached
to the top of the air cleaner case.
2. Detach the connector cable from the
clip on the right side of the air cleaner
case.
3. Loosen the screw on the clamp and
pull the air intake boot out of the air
cleaner case.
4. Unsnap the two clips holding the air
cleaner case (rear).
5. Open the air cleaner case and remove
the air cleaner element.
6. Clean the inside of the air cleaner case
(both front and rear) with a damp cloth and
install a new air cleaner element.
7. To install the air cleaner case (rear),
insert the thre e projections on the air
cleaner case (rear) into the slits on the
air cleaner case (front).
8. Install in the reverse order of removal.
Maintenance and service/Air cleaner element
11-13
