6-11
#7013455 - Revision A - April, 2009
Component Access/Removal
International W
International W
ine Storage
ine Storage
(ICBWS)
(ICBWS)
Series
Series
Lower Duct Grille and Lower Duct
The lower duct grille rests on top of the lower fan
shroud assembly, with notches at each side of the grille
fitting over tabs that are molded into the fan shroud.
Screws then pass through the holes in the duct grille
and the top flange of the lower duct into self retaining
U-type nuts that are attached to the front of the lower
fan shroud assembly. Notches at the bottom of the
lower duct’s side flanges fit over locating screws pro-
truding from the side covers and screws toward the top
of the duct secure the duct to stand-off brackets.
To remove the lower duct grille and lower duct (See
Figure 6-22):
1. Extract duct grille mounting screws.
2. Lift duct grille up and pull forward.
3. Extract lower duct mounting screws.
4. Pull top of duct forward, about 20-45 degrees from
vertical, then lift the duct up off of locator screws.
Lower Evaporator Fan Assembly
The lower evaporator fan assembly is attached to the
rear wall of the compartment with screws.
To remove the lower evaporator fan assembly, first
remove the lower duct grille and lower duct, then (See
Figure 6-23):
1. Disconnect fan motor electrical leads.
2. Extract ground screw wire from rear wall.
3. Extract screw from the P-clamp holding fan wires.
4. Extract fan bracket mounting screws and pull
assembly from the compartment.
5. Pull fan blade from fan motor shaft.
6. Extract fan motor mounting screws and pull motor
from bracket.
Lower Evaporator Thermistor
The lower evaporator thermistor is inserted six to ten
inches into the opening below the third elbow on the left
side of the evaporator.
To remove the evaporator thermistor, first remove the
lower duct grille and lower duct, then (See Figure 6-24):
1. Pull thermistor from evaporator.
2. Cut thermistor’s wire leads six (6) to twelve (12)
inches from the back wall, then pull thermistor from
compartment.

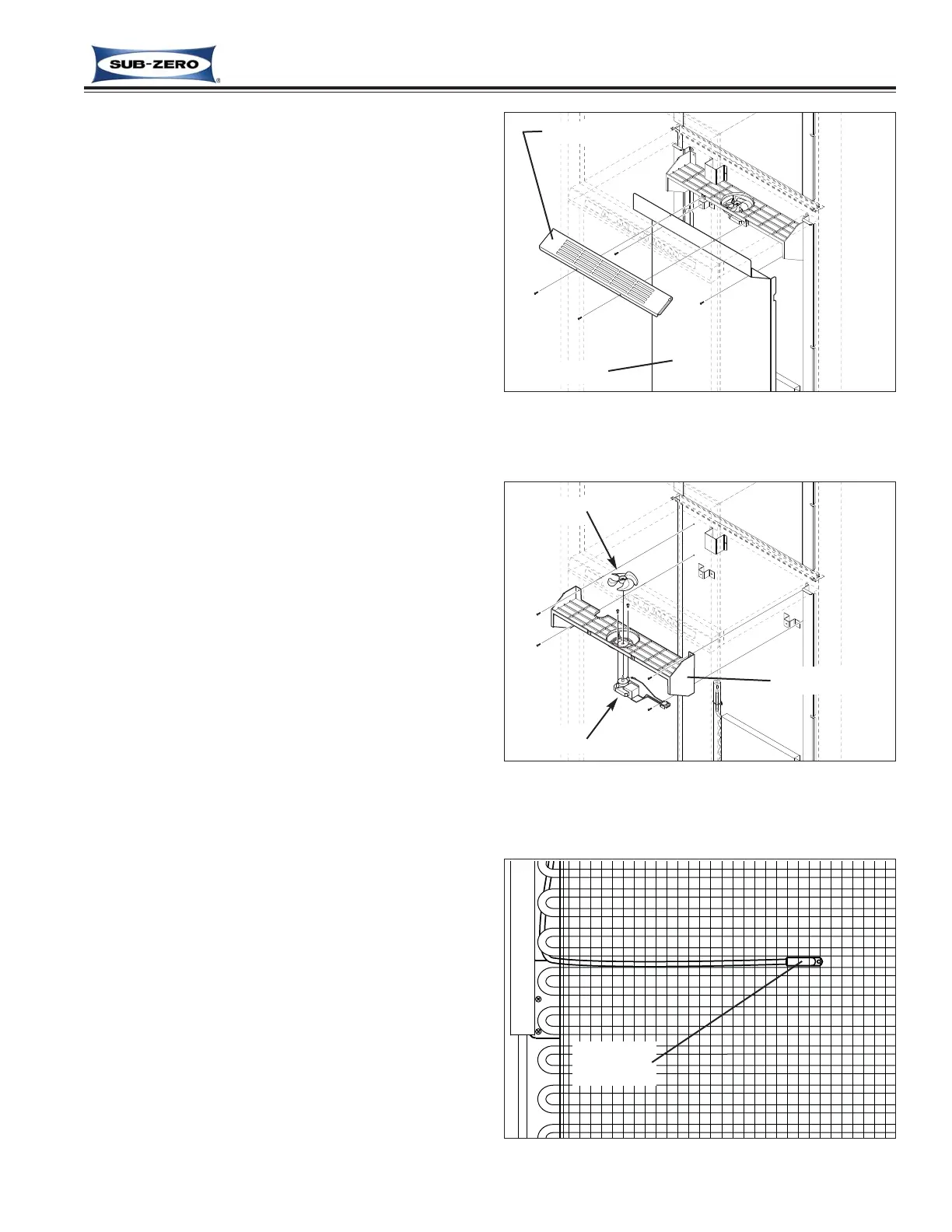

Figure 6-22. Lower Duct Grille and Duct Removal
Lower Duct
Duct Grille
Figure 6-23. Wine Rack Assembly Removal
Figure 6-24. Evaporator Thermistor Removal
Evaporator
Thermistor
Fan Bracket
Fan Blade
Fan Motor
To Next Page
