6-14
#7013455 - Revision A - April, 2009
Component Access/Removal
International W
International W
ine Storage
ine Storage
(ICBWS)
(ICBWS)
Series
Series
Condenser Fan Shroud Assembly
Tabs at the back of the condenser fan shroud fit into
grommets in the condenser’s rear bracket. A hole in
the bottom front flange of the condenser fan shroud fits
down over a threaded stud, and a nut is then applied
onto the stud. The front flange of the condenser fan
shroud assembly is then secured to the front condenser
bracket with screws.
To remove the condenser shroud assembly, first
remove the top cabinet trim, top cabinet frame and
compressor shroud, then (See Figure 6-30):
1. Extract condenser shroud mounting screws at front
of condenser.
2. Extract nut from threaded stud at base of condens-
er fan shroud.
3. Pull assembly forward slightly, disconnect condens-
er fan electrical leads, then pull the assembly from
the compressor area.
Condenser Fan Motor
The condenser fan is mounted to the condenser fan
shroud with three fan mounting brackets that hook into
grommets that are in the condenser fan shroud. At the
back of the motor, screws pass through these brackets
into the back of the fan motor. The condenser fan
blade is held onto the fan motor shaft with a nut.
To remove the condenser fan motor, first pull the con-
denser fan shroud assembly from the compressor area,
then (See Figure 6-31):
1. Extract screws securing motor to brackets.
NOTE: The brackets will unhook from the grom-
mets in the shroud after the screws are removed.
2. To remove fan blade from fan motor:
a. Grab blade and motor while turning nut coun-
terclockwise.
b. Then pull the blade from the motor shaft.
Model ICBWS-30 Compressor Area Mechanical Components

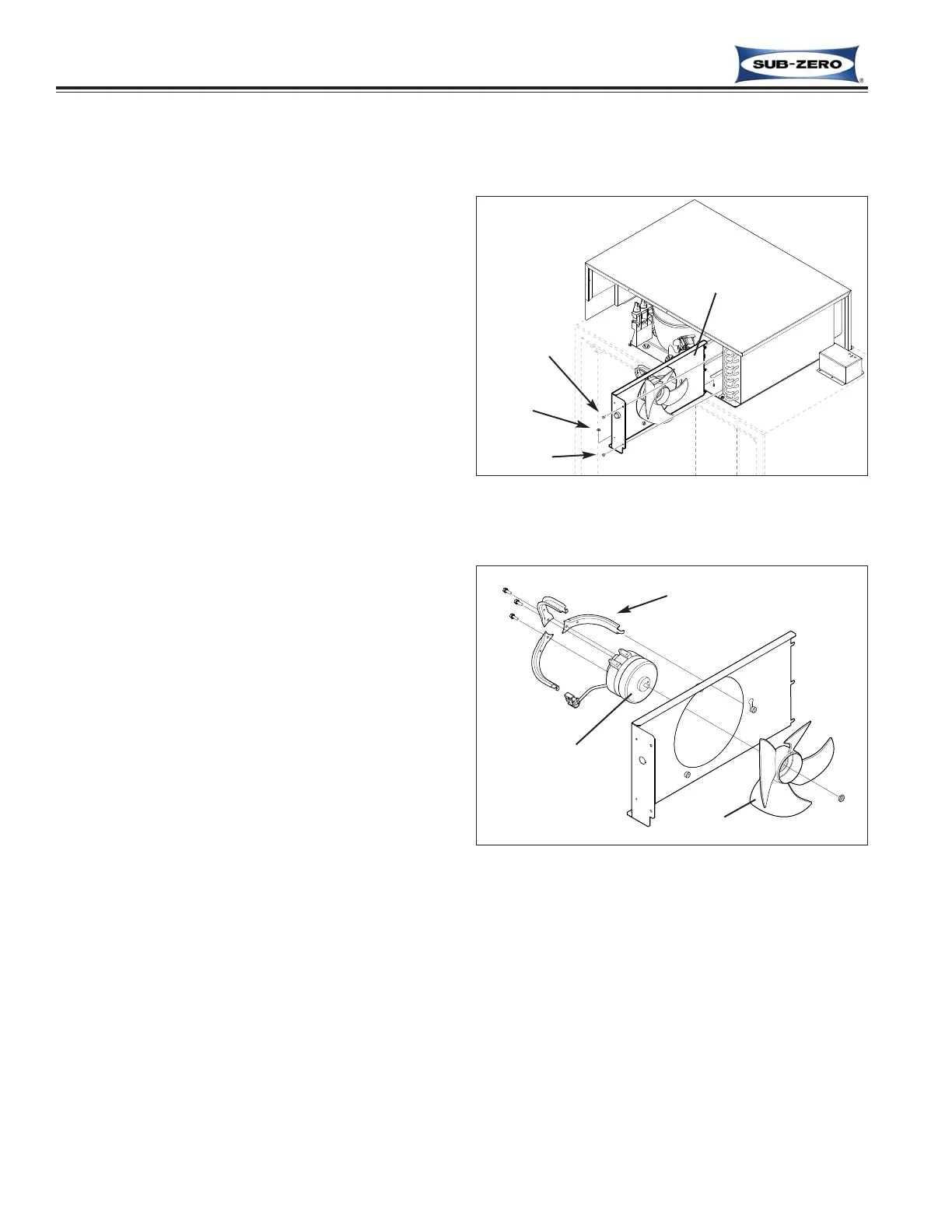

Figure 6-30. Condenser Fan Shroud Assembly
Condenser Fan
Shroud Assembly
Screw
Screw
Nut
Figure 6-31. Condenser Fan Motor Removal
Blade
Motor
Brackets
