Component Access/Removal
International W
International W
ine Storage
ine Storage
(ICBWS)
(ICBWS)
Series
Series
Refrigerant Solenoid Valve Removal
The solenoid is part of the refrigerant valve assembly,
which is secured to the top of the appliance with
screws.
To remove the valve solenoid, (See Figure 6-32):
1. With small flat-blade screwdriver, pry top of valve
solenoid housing open.
2. Disconnect electrical leads.
3. Extract screws from tubing side of valve solenoid
housing.
4. With small flat-blade screwdriver, pry bottom of
valve solenoid housing open and remove defective
solenoid.
NOTE: The solenoid is not sold separately. If replacing
a solenoid, the entire Refrigerant Valve Assembly must
be purchased and the solenoid removed from it.
Solenoid replacement does not require entering the
sealed system.

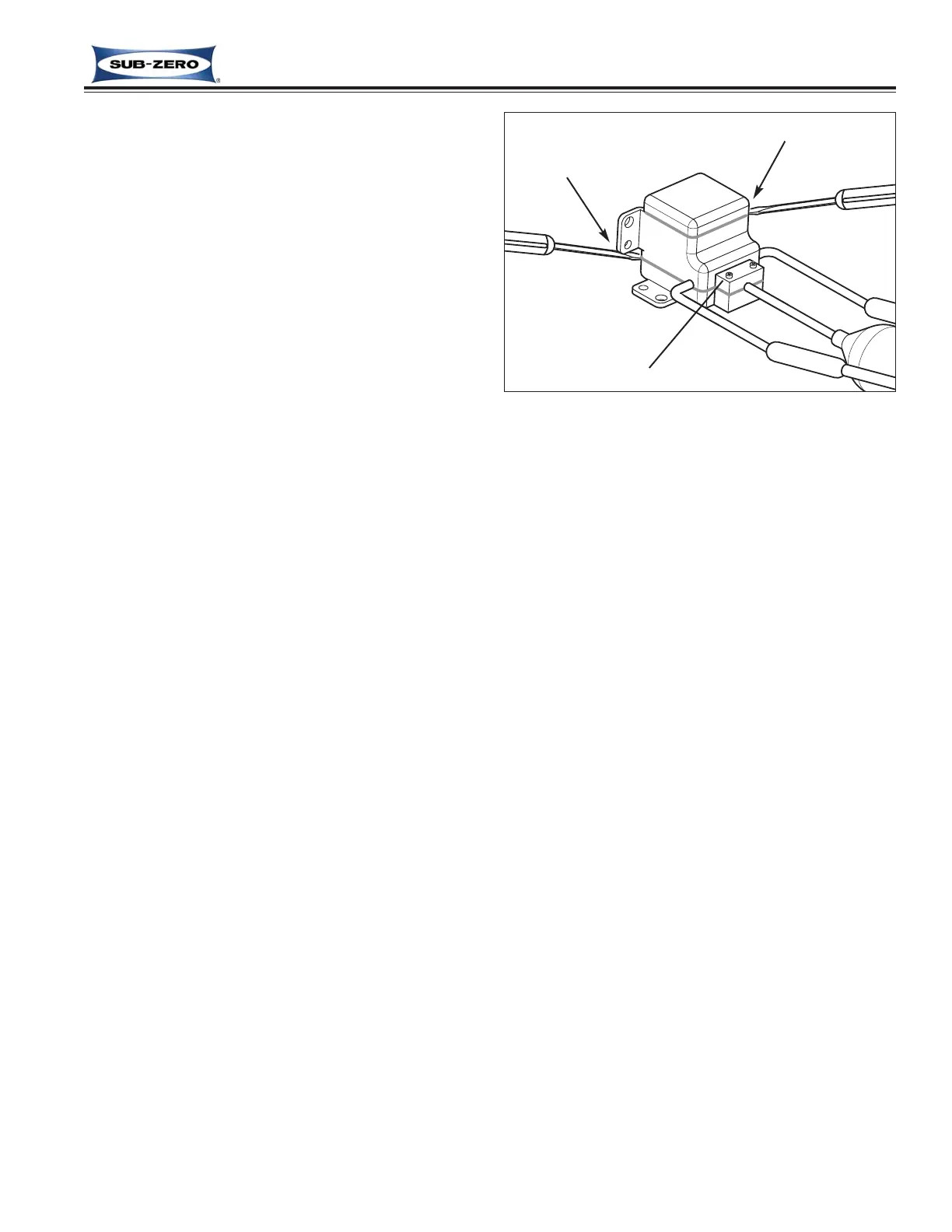

Figure 6-32. Valve Assembly Solenoid Removal
Remove screws
Pry top open
Pry bottom open
Housing
