SUEX XK - HOW TO REMOVE THE PROP LOCK PROPELLER

Rev.05 – 03/02/2021
Pag. 29/37
Cede: 71382

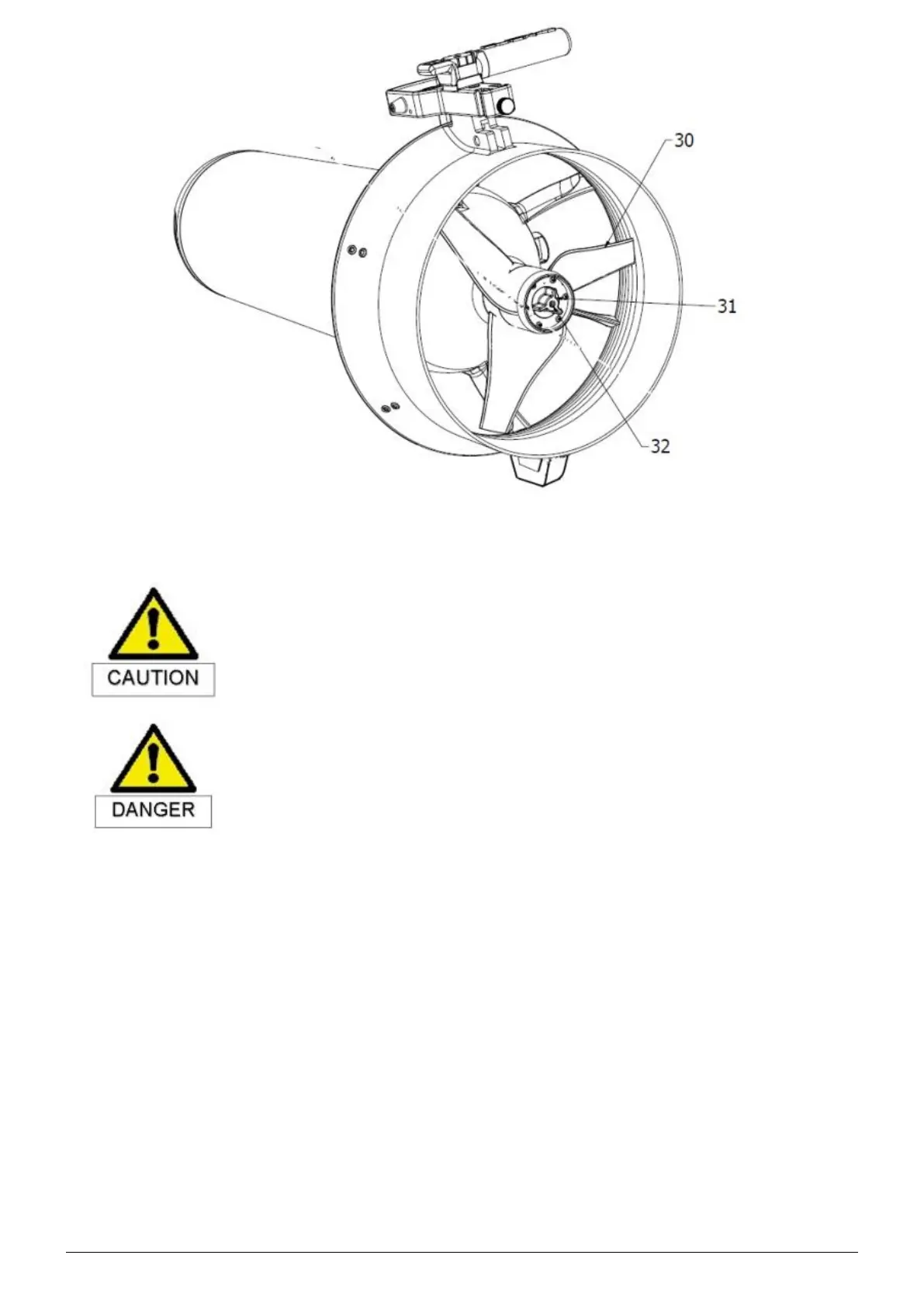

Fig.9
THE USE OF PROTECTIVE GLOVES IS ALWAYS MANDATORY
The use of the hands or other parts of the body between the propeller blades is a
potentially dangerous action, despite the existence of a safety clutch between the
propeller and the engine. In the case of replacement or removal of the prop lock
propeller, always make sure that the SCOOTER is off, or by pressing the trigger,
the propeller must not turn!
HOW TO INSERT THE PROP LOCK PROPELLER
Switch off the SCOOTER and make sure it is switched off!
Insert the motor shaft of the SCOOTER (35 - Fig.10) in the hole of the propeller (36), turn the propeller (clockwise)
until the pin (33) matches the seat (34) propeller. When you hear a click, the propeller will stop turning. Continue by
turning (CLOCKWISE) the switch (6) WITH THE FINGER ONLY, WITHOUT FORCING.
DO NOT UNSCREW OR TIGHTEN the screw (32), which has the function of
adjusting the torque of the safety clutch which has been calibrated by Suex.
Modifying this torque can cause potential DANGER as it can render the safety
system ineffective.
