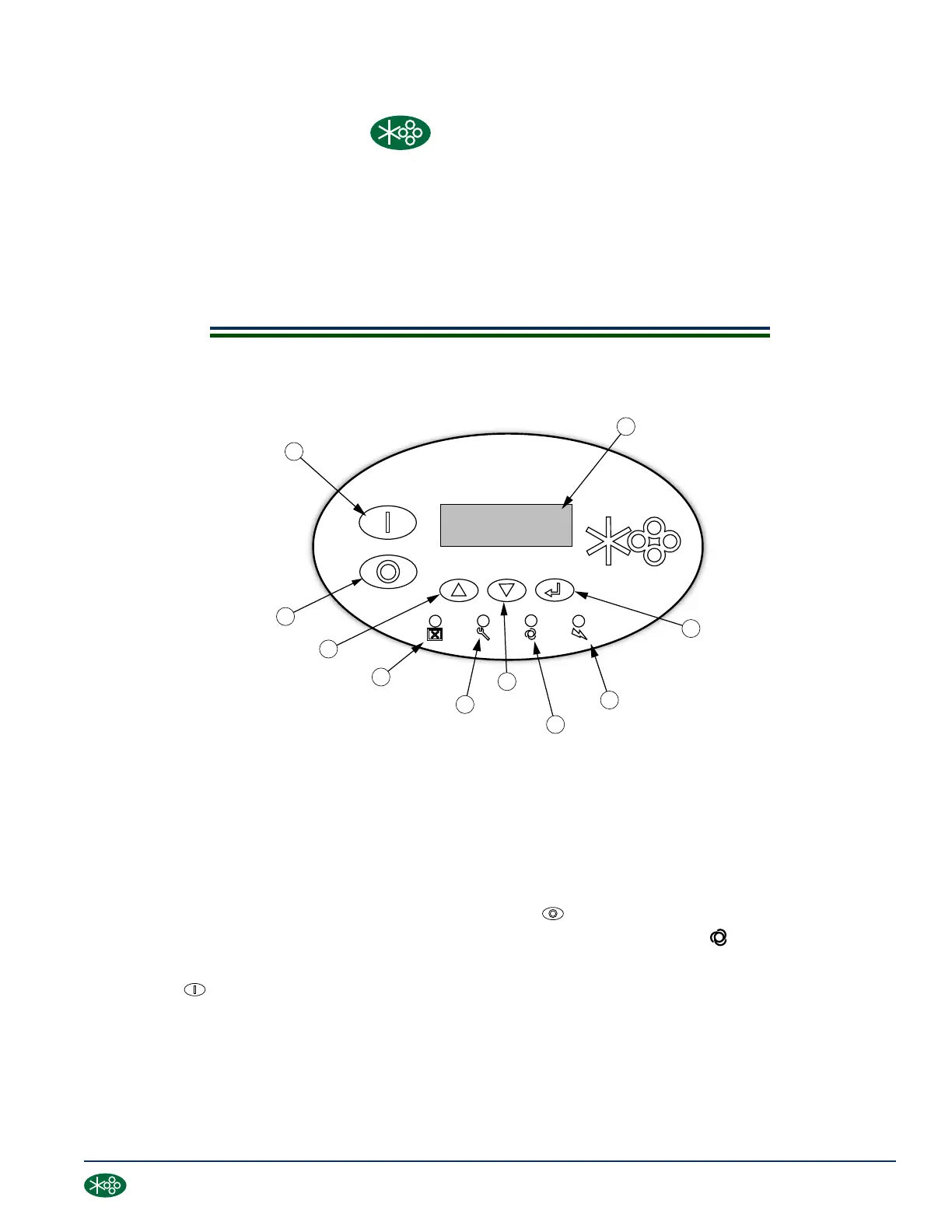

5.1 CONTROLLER LAYOUT
®
SU_0000021
6
1
7
2
8
3
9
4
10
5
1. ON
2. OFF
3. LCD Display
4. Power Indicator
5. Run Mode Indicator
6. Maintenance Indicator
7. Fault Indicator
8. Up Key
9. Down Key
10. Enter Key
Figure 5-1: WS Controller
5.2 CONTROLLER KEYPAD
The WS Controller keypad has two main pads for
compressor control.
• To start the compressor operation, press the green
Start pad " ".
• To stop compressor operation, press the red Stop pad
" ".
•
The Run mode indicator " " lights up whenever the
control is in an operating mode.
