SRL Service Manual
Revision 00
July 2007
Page 25 of 56

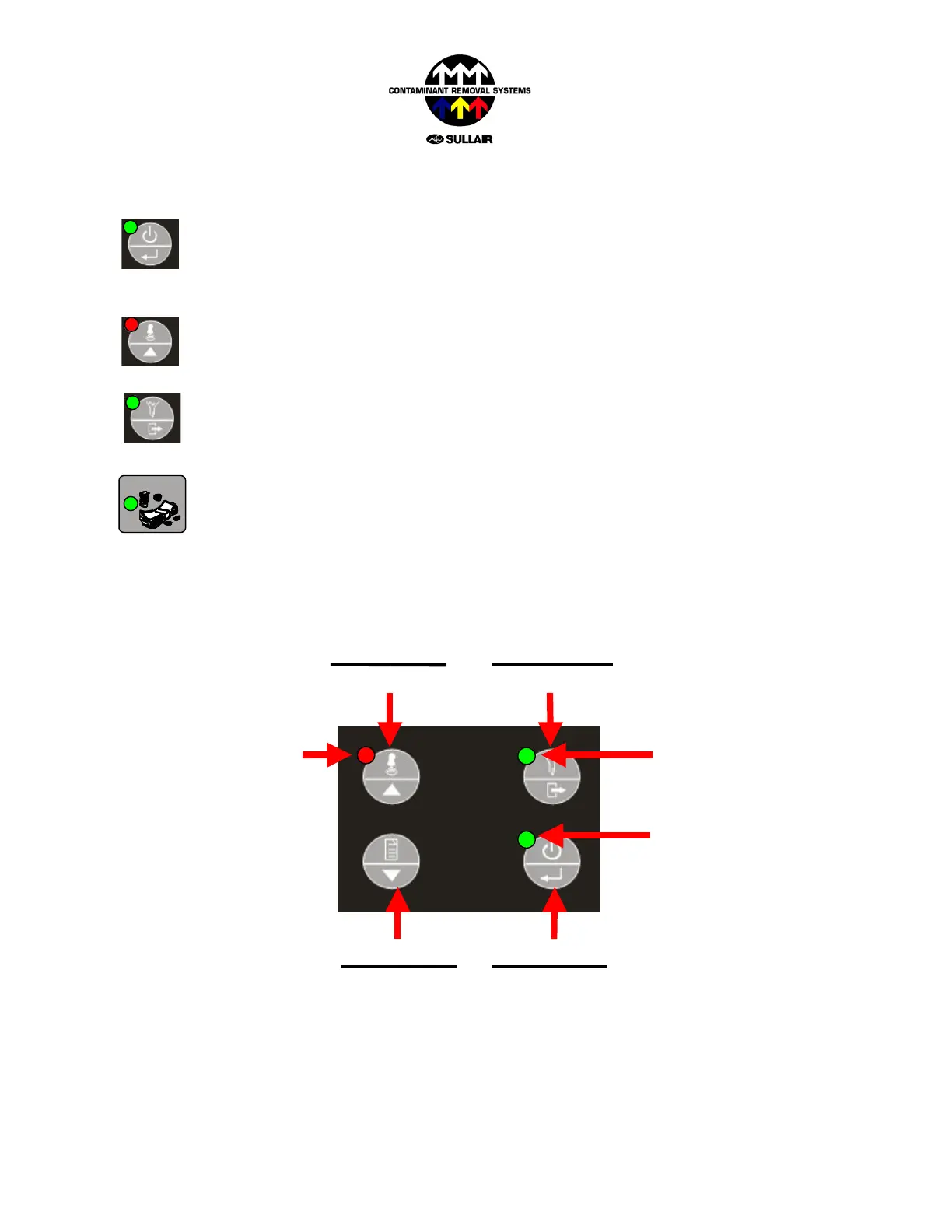

Alarm Reset
Up
Drain Test
Exit
Alarm LED
Drain LED
Power LED
Alarm Report
Down
On / Of
Enter
4.2.4.1 Lights
Power LED
o Yellow: indicates the dryer is off, but connected to a power supply.
o Green: indicates the dryer is operating.
Warning LED
o Red: indicates the dryer has a warning or alarm.
Drain LED
o Green: indicates the drain valve is open.
Energy Saving LED
o Green: indicates that the parameters for cycling the refrigerant compressor
off have been met. The refrigerant compressor is currently off (and the dryer
is therefore saving energy). Not applicable to the SRL-250.
