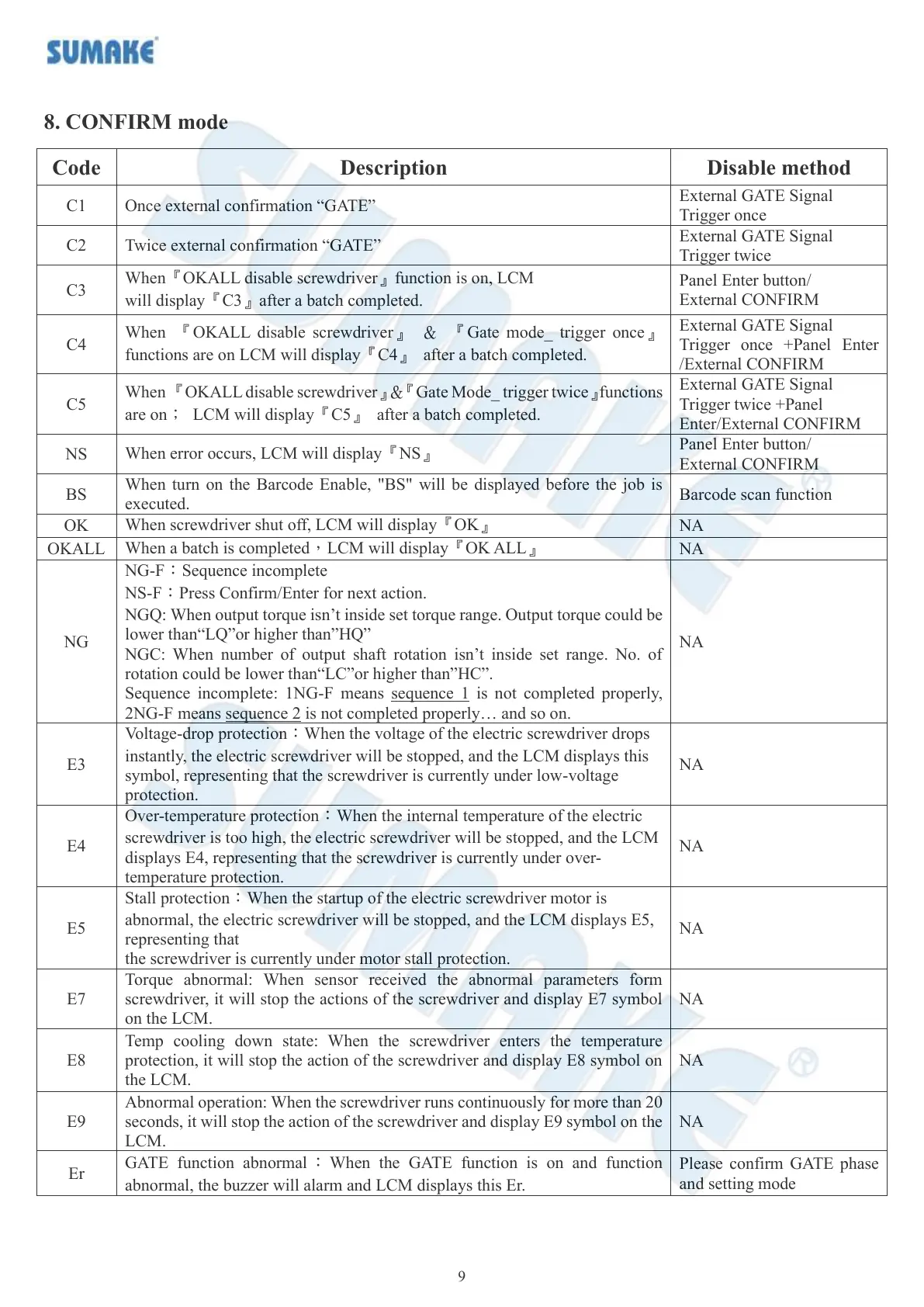

8. CONFIRM mode
Code
Description
Disable method
C1
Once external confirmation “GATE”
External GATE Signal
Trigger once
C2
Twice external confirmation “GATE”
External GATE Signal
Trigger twice
C3
When『OKALL disable screwdriver』function is on, LCM
will display『C3』after a batch completed.
Panel Enter button/
External CONFIRM
C4
When 『OKALL disable screwdriver』 ＆ 『Gate mode_ trigger once』
functions are on LCM will display『C4』 after a batch completed.
External GATE Signal
Trigger once +Panel Enter
/External CONFIRM
C5
When 『OKALL disable screwdriver』＆『 Gate Mode_ trigger twice』functions
are on； LCM will display『C5』 after a batch completed.
External GATE Signal
Trigger twice +Panel
Enter/External CONFIRM
NS
When error occurs, LCM will display『NS』
Panel Enter button/
External CONFIRM
BS
When turn on the Barcode Enable, "BS" will be displayed before the job is
executed.
Barcode scan function
OK
When screwdriver shut off, LCM will display『OK』
NA
OKALL
When a batch is completed，LCM will display『OK ALL』
NA
NG
NG-F：Sequence incomplete
NS-F：Press Confirm/Enter for next action.
NGQ: When output torque isn’t inside set torque range. Output torque could be
lower than“LQ”or higher than”HQ”
NGC: When number of output shaft rotation isn’t inside set range. No. of
rotation could be lower than“LC”or higher than”HC”.
Sequence incomplete: 1NG-F means sequence 1 is not completed properly,
2NG-F means sequence 2 is not completed properly… and so on.
NA
E3
Voltage-drop protection：When the voltage of the electric screwdriver drops
instantly, the electric screwdriver will be stopped, and the LCM displays this
symbol, representing that the screwdriver is currently under low-voltage
protection.
NA
E4
Over-temperature protection：When the internal temperature of the electric
screwdriver is too high, the electric screwdriver will be stopped, and the LCM
displays E4, representing that the screwdriver is currently under over-
temperature protection.
NA
E5
Stall protection：When the startup of the electric screwdriver motor is
abnormal, the electric screwdriver will be stopped, and the LCM displays E5,
representing that
the screwdriver is currently under motor stall protection.
NA
E7
Torque abnormal: When sensor received the abnormal parameters form
screwdriver, it will stop the actions of the screwdriver and display E7 symbol
on the LCM.
NA
E8
Temp cooling down state: When the screwdriver enters the temperature
protection, it will stop the action of the screwdriver and display E8 symbol on
the LCM.
NA
E9
Abnormal operation: When the screwdriver runs continuously for more than 20
seconds, it will stop the action of the screwdriver and display E9 symbol on the
LCM.
NA
Er
GATE function abnormal ： When the GATE function is on and function
abnormal, the buzzer will alarm and LCM displays this Er.
Please confirm GATE phase
and setting mode
