Sumake SMT-C1 - External Output Control Function Description

10
ES
Screwdriver end communication error：When the electric
screwdriver communication error occurs, the
electric screwdriver will be stopped and the LCM displays this ES.
NA
EOC
Calibration is required when EOC is stated on LCM display.
[Note]: When numbers of tightening are reached one million time, the EOC
warning comes up on display panel each time as machine turning on.
NA
ELS
When LCM displays the word ELS, it indicates that the SD card capacity is less
than 100MB, and it will stop the operation of the screwdriver. Which need to
press the Enter key to release the screwdriver freeze state.
NA
EPC
ADV MODE communication abnormal。
NA

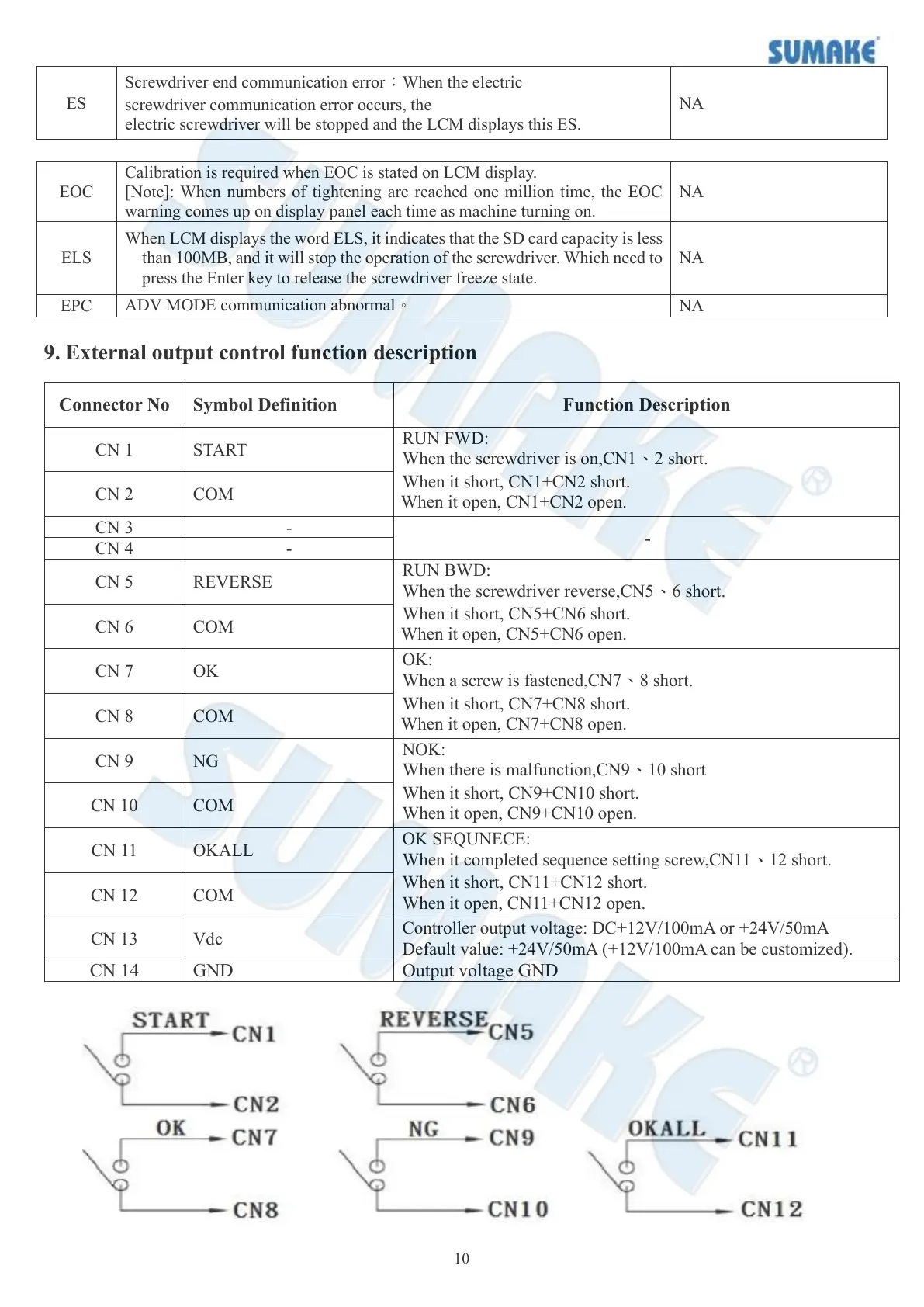

9. External output control function description
Connector No
Symbol Definition
Function Description
CN 1
START
RUN FWD:
When the screwdriver is on,CN1、2 short.
When it short, CN1+CN2 short.
When it open, CN1+CN2 open.
CN 2
COM
CN 3
-
-
CN 4
-
CN 5
REVERSE
RUN BWD:
When the screwdriver reverse,CN5、6 short.
When it short, CN5+CN6 short.
When it open, CN5+CN6 open.
CN 6
COM
CN 7
OK
OK:
When a screw is fastened,CN7、8 short.
When it short, CN7+CN8 short.
When it open, CN7+CN8 open.
CN 8
COM
CN 9
NG
NOK:
When there is malfunction,CN9、10 short
When it short, CN9+CN10 short.
When it open, CN9+CN10 open.
CN 10
COM
CN 11
OKALL
OK SEQUNECE:
When it completed sequence setting screw,CN11、12 short.
When it short, CN11+CN12 short.
When it open, CN11+CN12 open.
CN 12
COM
CN 13
Vdc
Controller output voltage: DC+12V/100mA or +24V/50mA
Default value: +24V/50mA (+12V/100mA can be customized).
CN 14
GND
Output voltage GND
