Sumake SMT-C1 - Appearance Introduction; Panel

3

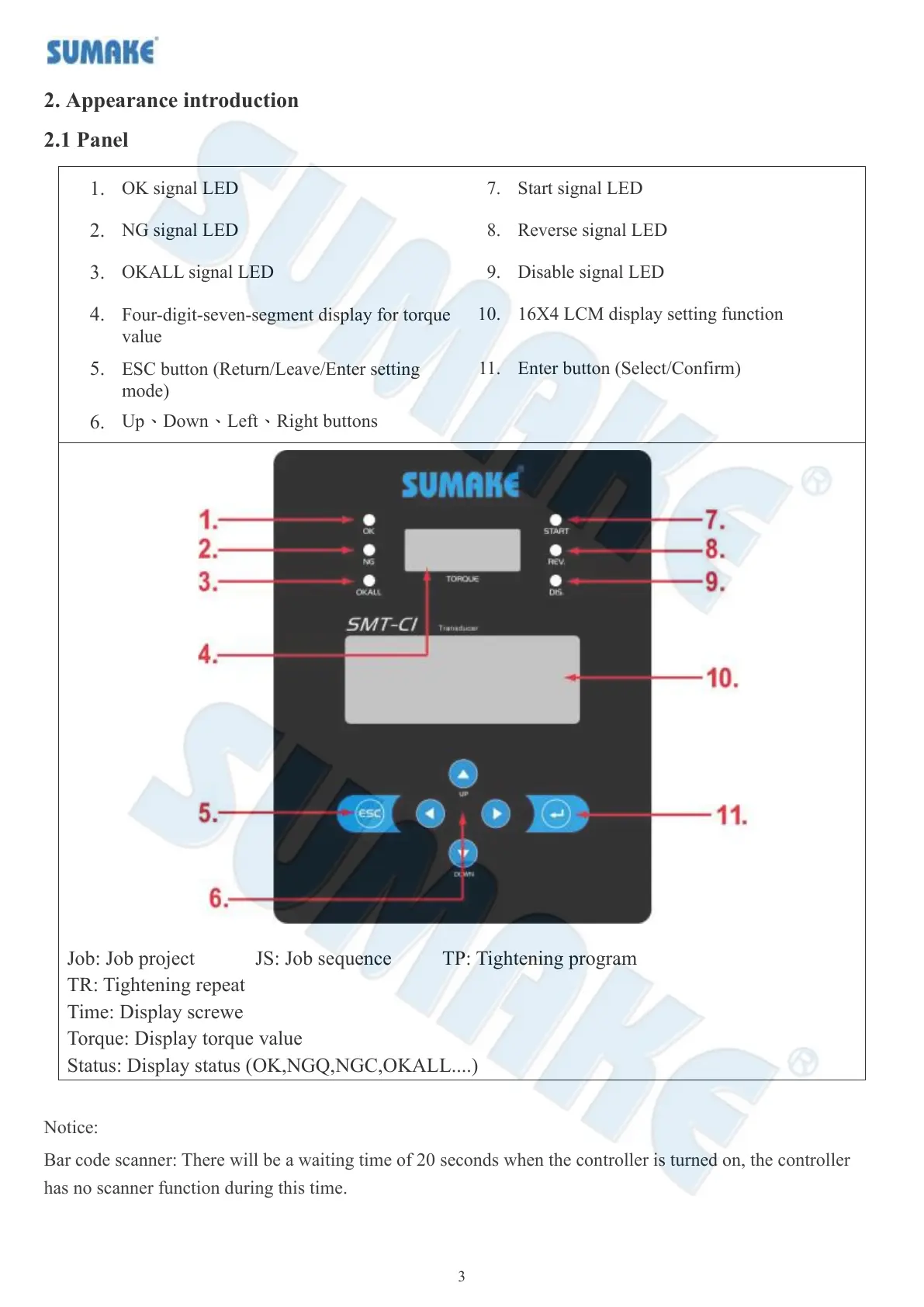

2. Appearance introduction
2.1 Panel
Notice:
Bar code scanner: There will be a waiting time of 20 seconds when the controller is turned on, the controller
has no scanner function during this time.
1.
OK signal LED
7.
Start signal LED
2.
NG signal LED
8.
Reverse signal LED
3.
OKALL signal LED
9.
Disable signal LED
4.
Four-digit-seven-segment display for torque
value
10.
16X4 LCM display setting function
5.
ESC button (Return/Leave/Enter setting
mode)
11.
Enter button (Select/Confirm)
6.
Up、Down、Left、Right buttons
Job: Job project JS: Job sequence TP: Tightening program
TR: Tightening repeat
Time: Display screwe
Torque: Display torque value
Status: Display status (OK,NGQ,NGC,OKALL....)
