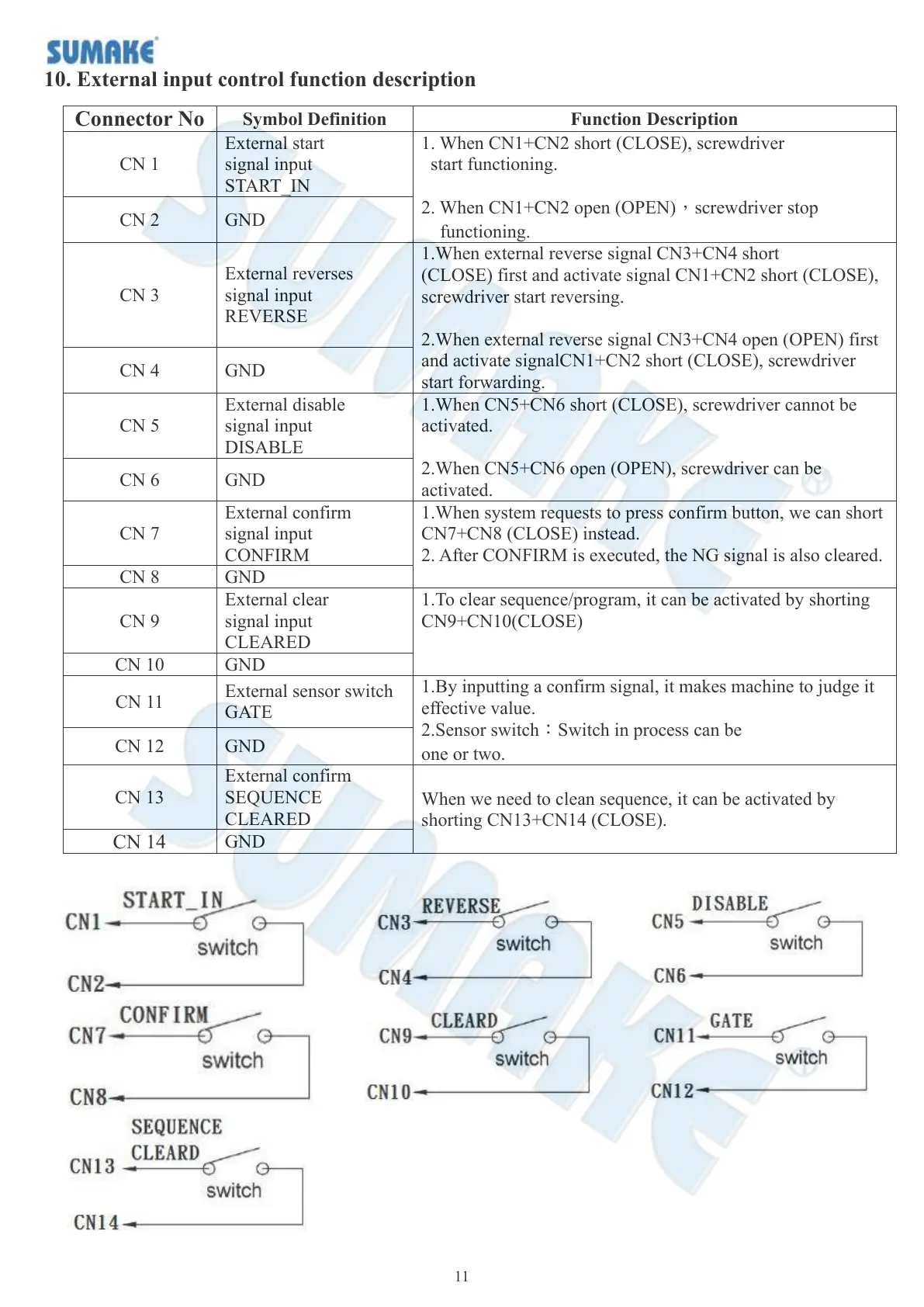

10. External input control function description
Connector No
Symbol Definition
Function Description
CN 1
External start
signal input
START_IN
1. When CN1+CN2 short (CLOSE), screwdriver
start functioning.
2. When CN1+CN2 open (OPEN)，screwdriver stop
functioning.
CN 2
GND
CN 3
External reverses
signal input
REVERSE
1.When external reverse signal CN3+CN4 short
(CLOSE) first and activate signal CN1+CN2 short (CLOSE),
screwdriver start reversing.
2.When external reverse signal CN3+CN4 open (OPEN) first
and activate signalCN1+CN2 short (CLOSE), screwdriver
start forwarding.
CN 4
GND
CN 5
External disable
signal input
DISABLE
1.When CN5+CN6 short (CLOSE), screwdriver cannot be
activated.
2.When CN5+CN6 open (OPEN), screwdriver can be
activated.
CN 6
GND
CN 7
External confirm
signal input
CONFIRM
1.When system requests to press confirm button, we can short
CN7+CN8 (CLOSE) instead.
2. After CONFIRM is executed, the NG signal is also cleared.
CN 8
GND
CN 9
External clear
signal input
CLEARED
1.To clear sequence/program, it can be activated by shorting
CN9+CN10(CLOSE)
CN 10
GND
CN 11
External sensor switch
GATE
1.By inputting a confirm signal, it makes machine to judge it
effective value.
2.Sensor switch：Switch in process can be
one or two.
CN 12
GND
CN 13
External confirm
SEQUENCE
CLEARED
When we need to clean sequence, it can be activated by
shorting CN13+CN14 (CLOSE).
CN 14
GND
