Fixing to Driven Shaft: Always engage the gearmotor with driven shaft when stopping the whirl by attachment method or
tie-rod method.
Fixing Example to Prevent Gearmotor Moving to the Machine side
(Overhead view of EHYM3-A6105)
Spacer
Stopper ring
Set screw
Bearing
Machine side
Fixing Example to Prevent Gearmotor Moving to the Machine side
(Overhead view of EHYM3-A6105)
Set screw
Stopper
ring
End plate
Spacer
Retaining ring
Machine side

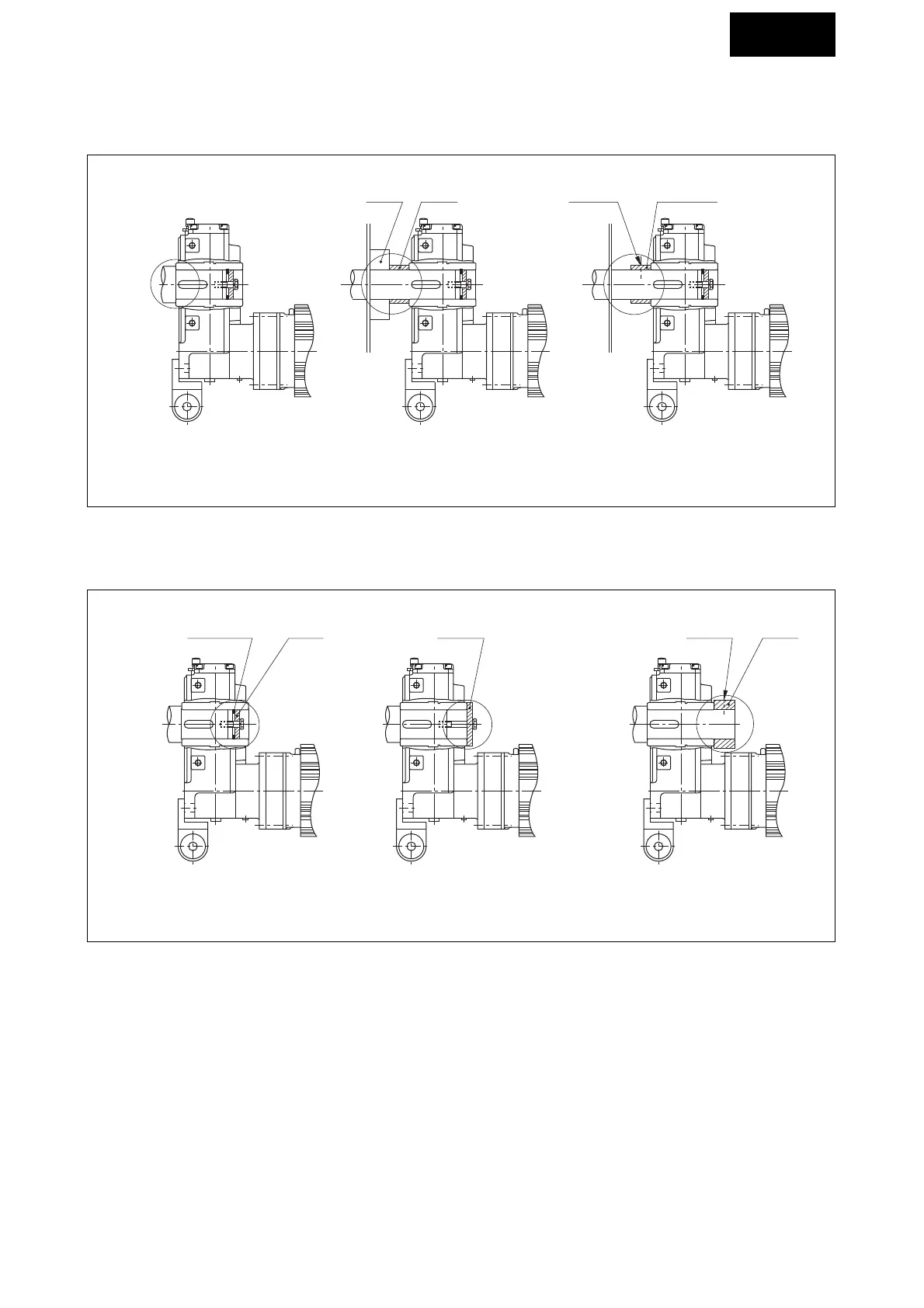

Fig.14 Securing with stepped shaft
Fig.15 Securing with spacer
(Driven shaft without steps)
Fig.16 Securing with set screw and
stopper ring
(Driven shaft without steps)
Fig.17 Securing with spacer and retaining
ring
Fig.18 Securing with end plate
Fig.19 Securing with set screw
and stopper ring
