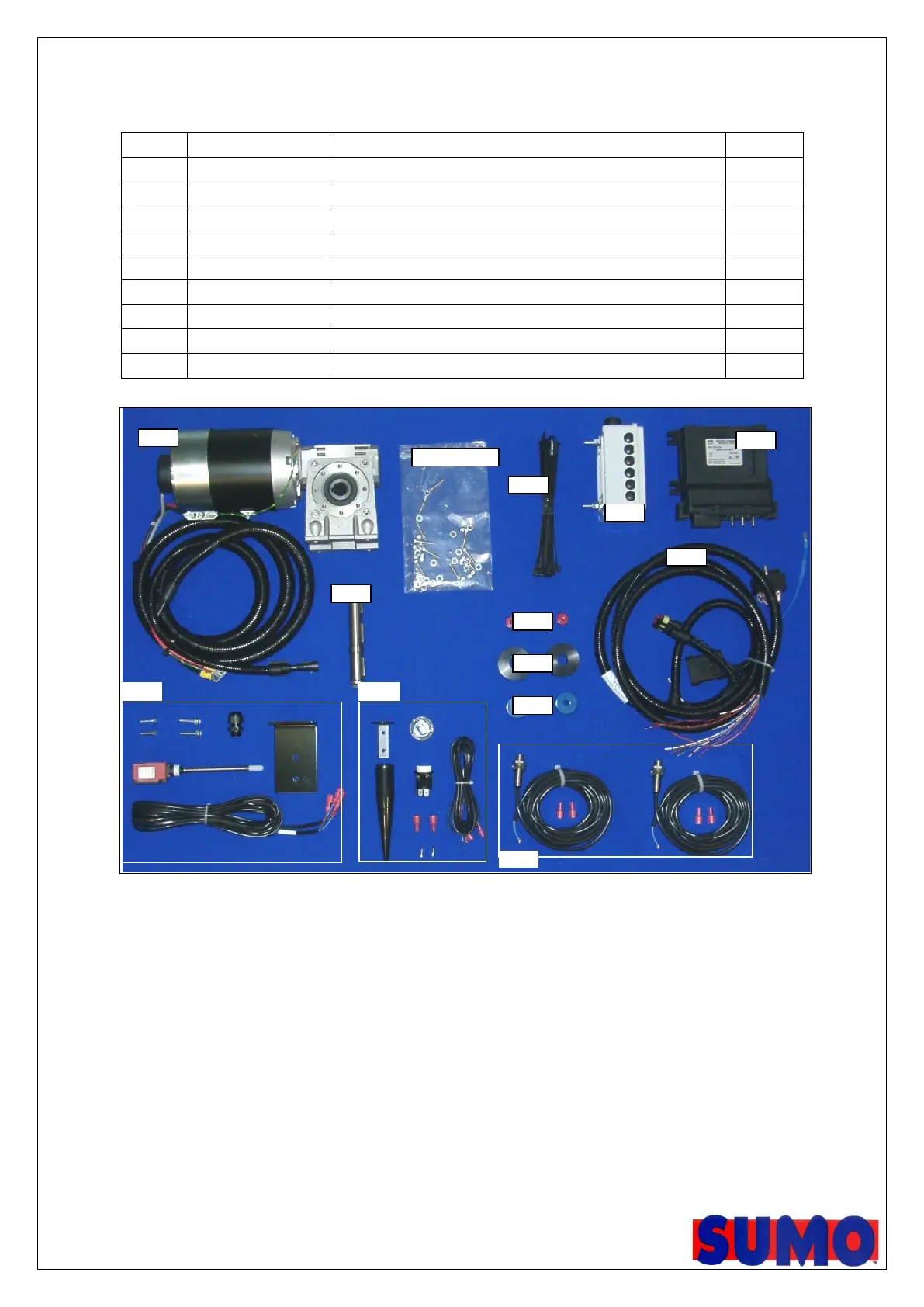

Figure 5:
Single Motor Drive – MCM related components
Item #
Part No.
Description
Qty
1
SWB295
Motor Assembly ( S/AC/268-6-043)
1
2
SWB296
CAN Module – MCM (S/HU/322-5-002)
1
3
SWB297
Wiring Harness – MCM (S/CB/322-5-021)
1
5
SWB298
Junction Box (S/AC/268-6-049)
(1 of 2)
6
SWB299
Sensor Kit – (for Seed Shaft) (K/SNR/503)
(2 of 4)
8
SWB300
Switch Kit – (for Priming - Product calibration)(K/ENT/SWCH)
1
9
SWB301
Magnet Carrier – (Seed Shaft) (S/MG/289-1-010)
2
10
SWB302
Blue Magnet - (Raise and lower) (S/MAGNET/002)
2
11
SWB303
Red magnet (Fan impeller) (S/MG/193-1-020)
2
1
2
3
4
5
K/CUT/OUT/0133
7
K/ENT/SWCH
8
10
9
11
12
13,14,15
6
K/SNR/503 (x 2)
