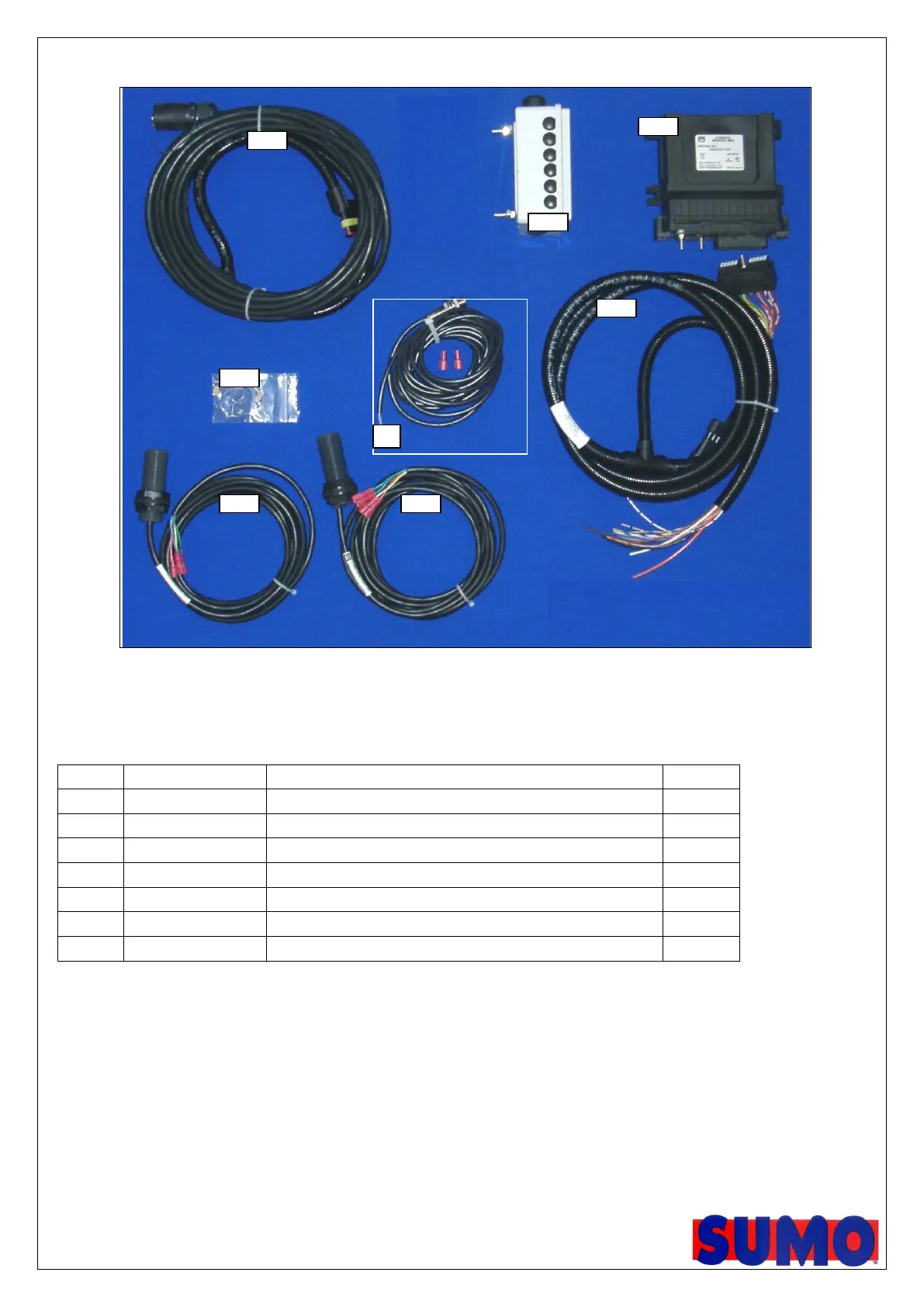

Figure 6: Single/Dual Motor Drive - HBM related components
Item #
Part No.
Description
Qty
11
SWB298
Junction Box (S/AC/268-6-049)
(1of 2)
12
SWB299
Sensor Kit – (for Fan Shaft) (K/SNR/503)
(1 of 4)
13
SWB304
CAN Module – HBM (S/HU/322-5-001)
1
14
SWB305
Wiring Harness – HBM (S/CB/322-5-020)
1
15
SWB306
Wiring Harness - Main (S/CB/268-6-046)
1
16
SWB307
Sensor – (for Hopper Level) (S/SR/201-2-001)
2
17
SWB308
10K Resistor (S/R501-097)
2
15
13
12
21
16
14
16
20
11
17
6
K/SNR/503
12
