XMD User Manual
XMD Mobile Application Intended Use
The XMD Mobile app is designed to congure the Sun Hydraulics Bluetooth congurable XMD
Amplier for single and dual proportional output applications. For ease of use during setup and
conguration, diagnostics are now accomplished using Sun’s new XMD Mobile phone app for
safe, secure and reliable wireless Bluetooth
®
4.0 connection. The app is free to download from the
Apple App store and the Google Play store. To find the app, search for “Sun Hydraulics” or “Sun
XMD Mobile.” Multiple features make the XMD Mobile app suitable for many simple and complex
applications.
The XMD Amplifier provides current to the coil in proportion to the command signal. LED indicators
provide a real-time operational overview of the unit’s status. Once configured and saved, all settings
are stored safely in the non-volatile permanent memory within the unit, even when power is
removed.
Exceptional Sun performance at a competitive price
SUN XMD Series
OVERVIEW
SAE J1939 CAN Communication
The XMD Mobile App is able to receive and
transmit custom CAN messages in addition to
transmitting system and alarm information.
Quick Setup Proles
Select between single- and dual-coil pre-dened
proles on typical pressure and ow congurations
for fast, reliable solutions.
Diagnostic Mode
Allows technicians worldwide to access alarm and
operational conditions on password protected
devices without the ability to change the
congurations.
Intelligent Visibility
The XMD Mobile app intelligently utilizes the
limited space of mobile phones, and oers greater
usability with the iPad and Tablet forms.
Input/Output Function Curves
Create a custom output curve for nely tuned
joystick control or custom ow/pressure curves
with the use of universal inputs and CAN-received
messages.

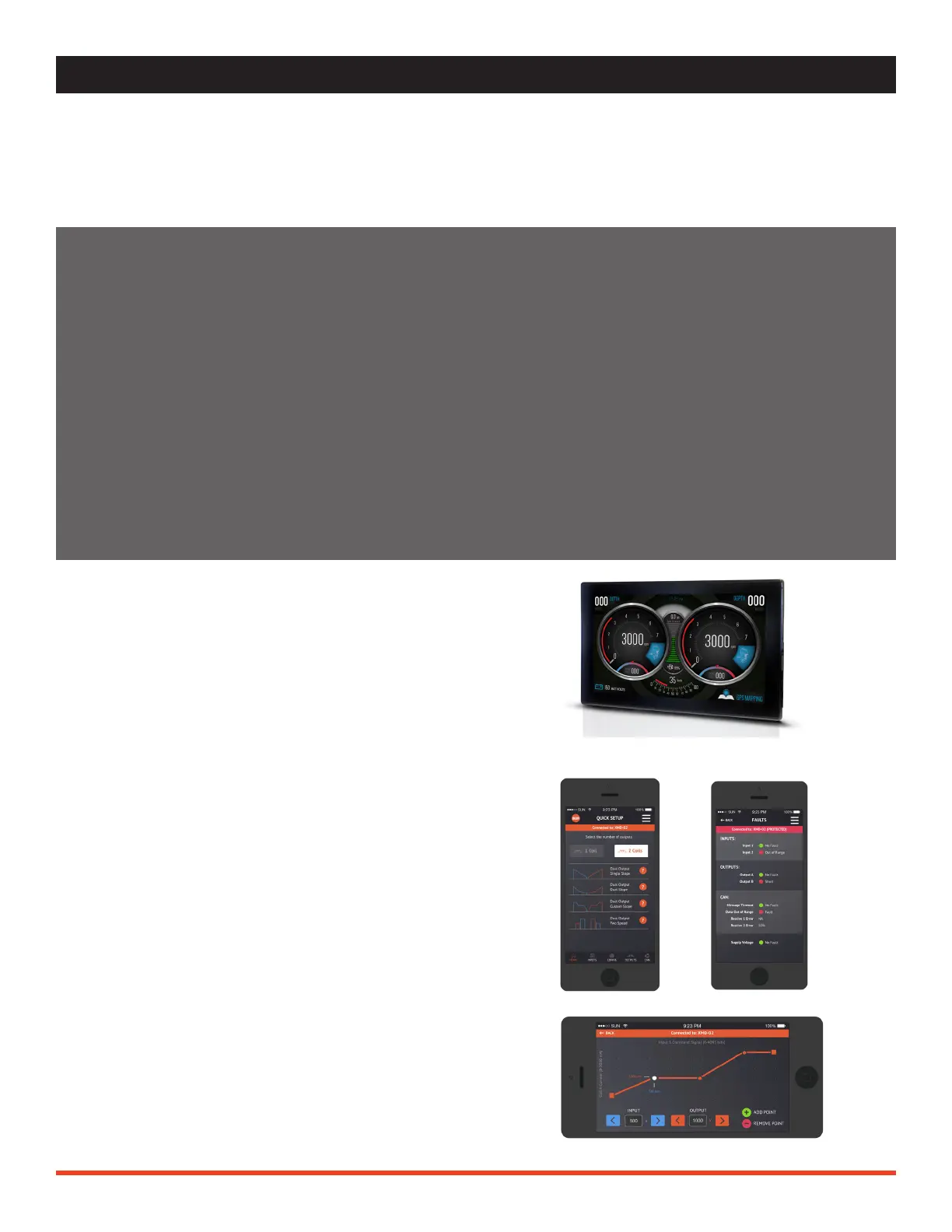

XMD Features
Quick Setup
Diagnostic Mode
Input / Output Curves
CAN Capable Display
