XMD User Manual

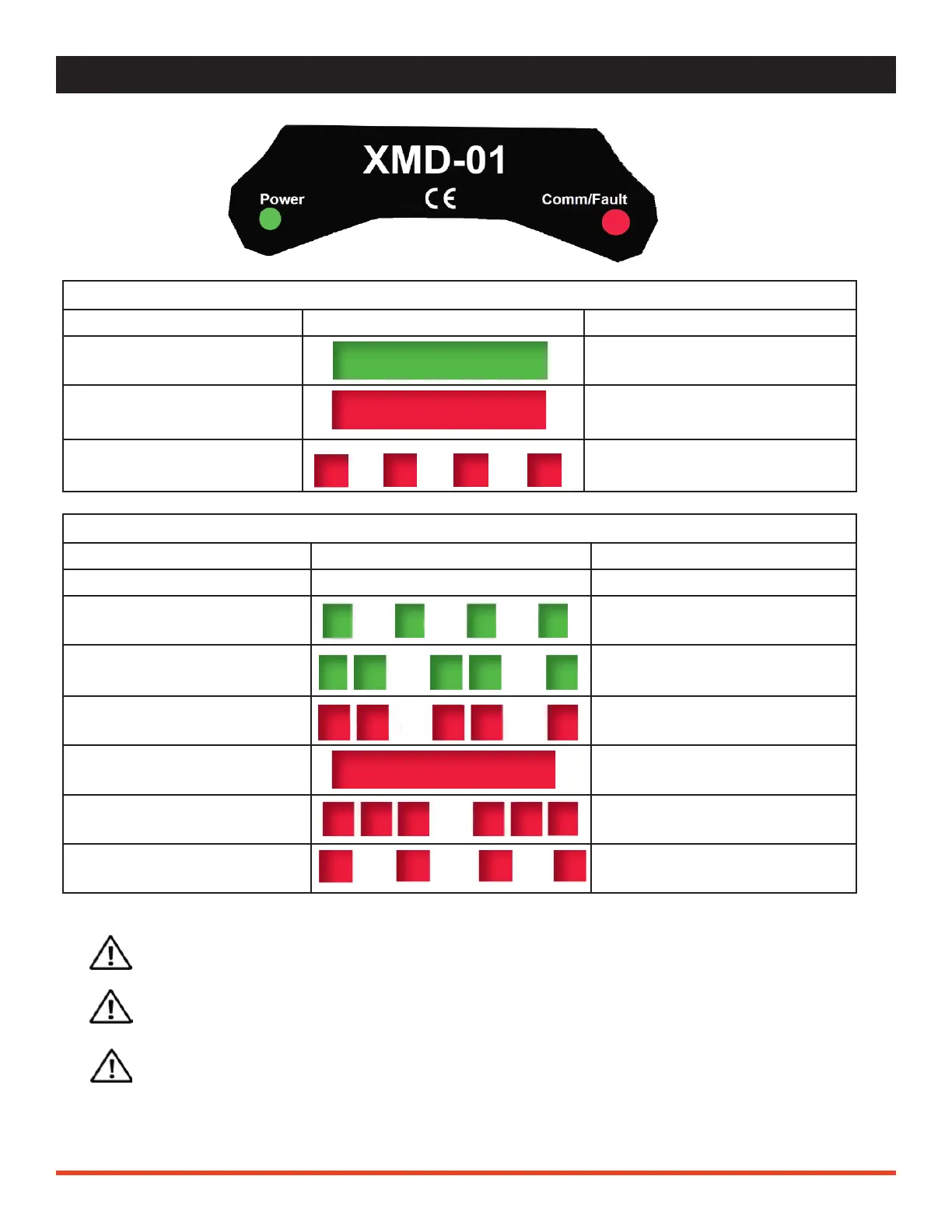

LED OPERATION
Power LED Operation
Mode of Operation Status Description
Normal Operating mode,
no faults
Solid Green On
Supply Voltage Below 9
VDC
Solid Red On
Supply Voltage Above 32
VDC
Blink / Red - 1 blink ON/ pause
OFF 500 mS
Comm / Fault LED Operation
Mode of Operation Status Description
Normal Operating mode, O O
Connected to mobile phone
app / Conguration Mode
Blink/Green - 1 blink 125 mS On/
O 500 mS
Receiving CAN messages
Blink/Green - 2 blinks 125 mS
On/ pause O 500 mS
CAN Message Timeout
Blink / Red - 2 blinks 125 mS On/
pause O 500 mS
Coil Short, ON Red On/Red
Coil Open
Blink/Red - 3 blinks 125 mS On/
pause O 500 mS
Command % out of range
Blink/Red -- 1 blink On/ pause
O 500 mS
If the equipment is used in a manner not specied by the manufacturer, the protection
by the equipment may be impaired.
This unit is intended only for connection to vehicle electrical systems and voltage above
the identied ratings should never be connected to the unit.
This equipment has not been investigated as a safety-rated component and shall not be
relied upon as a safety device. Separate emergency stop equipment must be integrated
on the machine in accordance with the machinery directive. The operator of the equip-
ment shall always be in sight of the controlled machine and be prepared to use
emergency stop equipment if any malfunction occurs.
