Sun Microsystems VAT-60 - Page 4

FRONT
PANEL

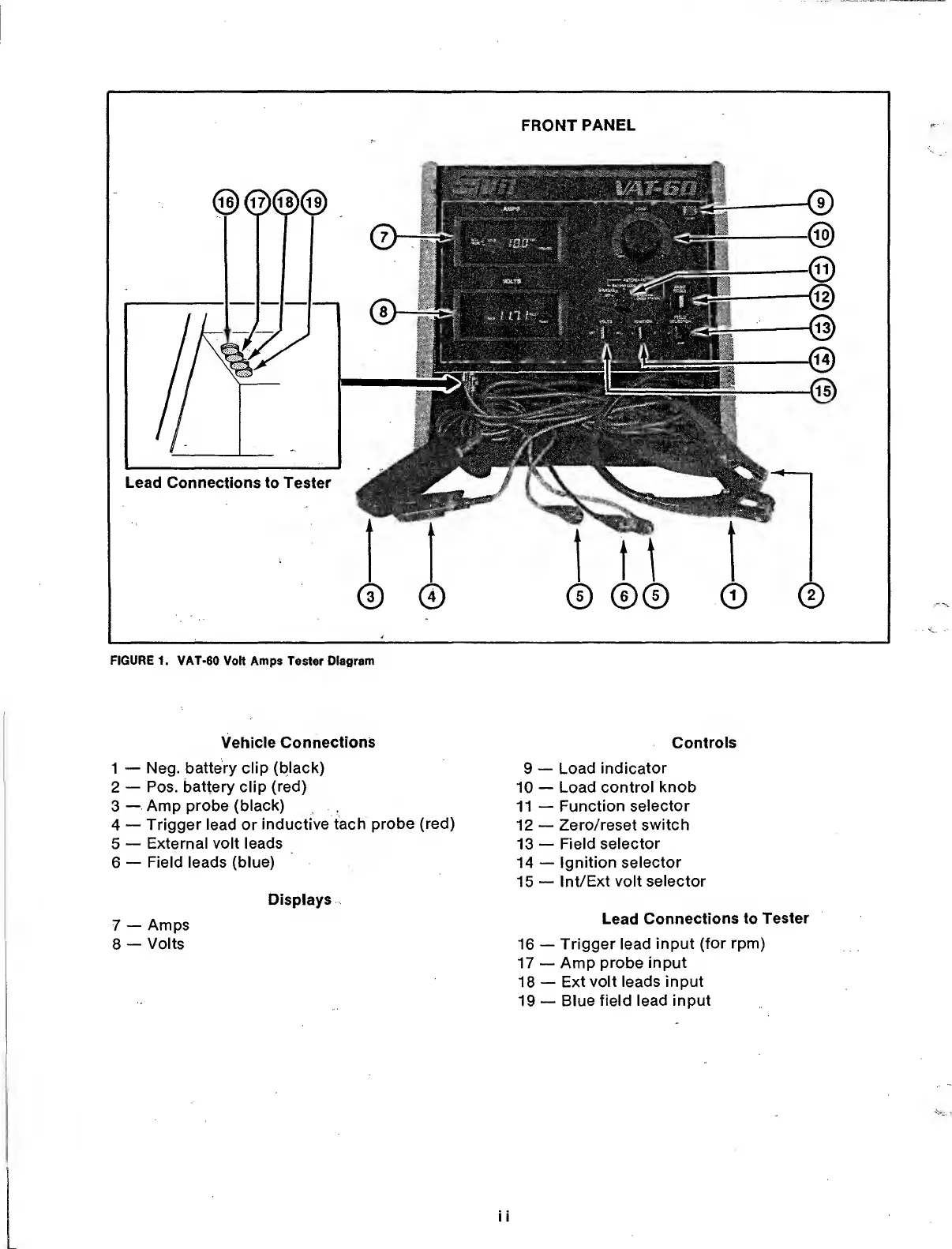

FIGURE
1. VAT-60 Volt Amps Tester Diagram
Vehicle
Connections
1
—
Neg. battery
clip
(black)
2
—
Pos.
battery clip (red)
3
—
Amp
probe
(black)
4
—
Trigger lead or
inductive tach
probe (red)
5
—
External
volt leads
6
—
Field leads (blue)
Displays
7
—
Amps
8
—
Volts
Controls
9
—
Load
indicator
10
—
Load
control
knob
11
—
Function
selector
12
—
Zero/reset
switch
13
—
Field
selector
14
—
Ignition selector
15
—
Int/Ext volt
selector
Lead
Connections to
Tester
16
—
Trigger lead
input
(for rpm)
17
—
Amp
probe input
18
—
Ext volt leads input
19
—
Blue field lead
input
