SUNBA 604-22X - Page 5

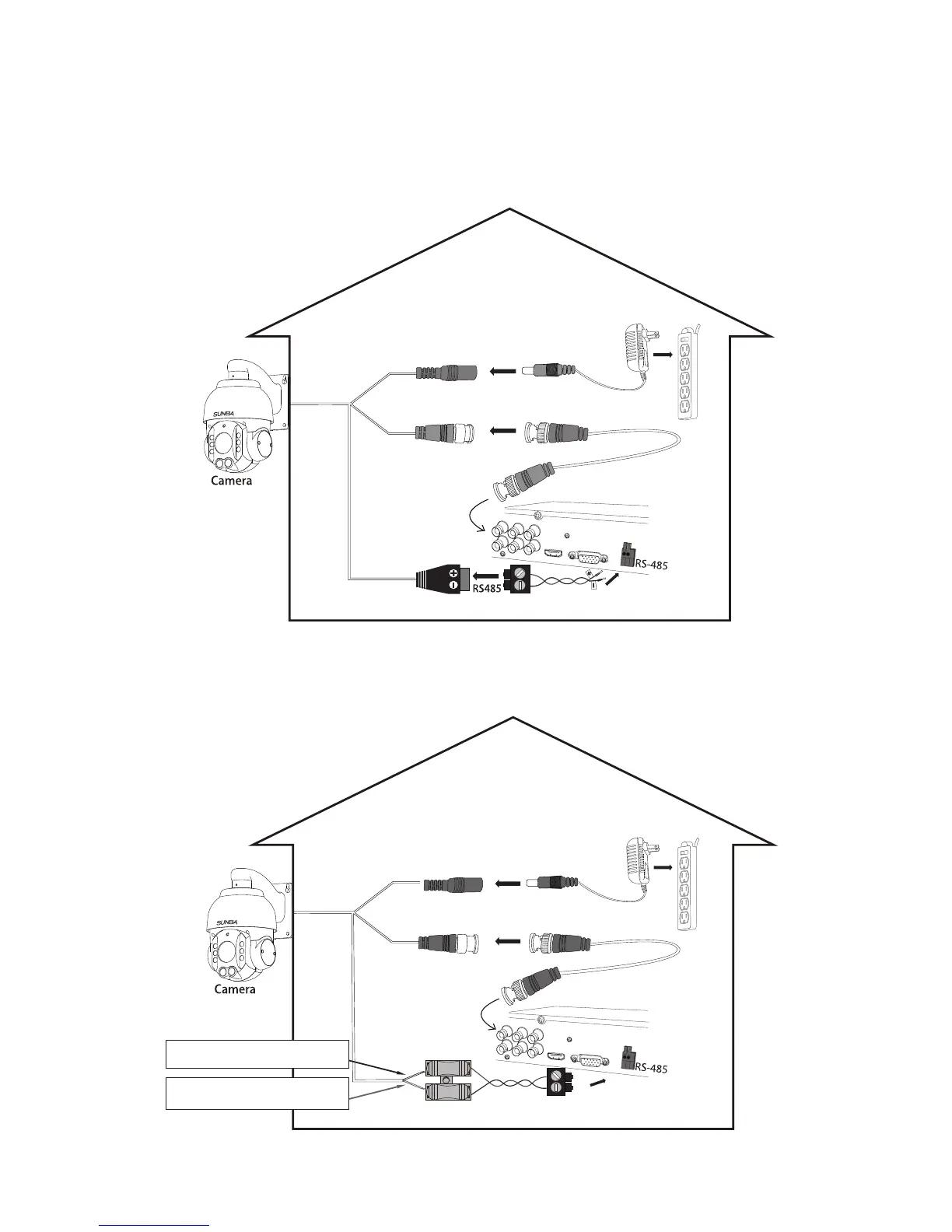

RS485 Connector Type A:
RS485 Connector Type B:
Stage2:Permanent Installation (with DVR)
A
B
A
B
Blue side goes to polar A on the
RS485 port of the DVR
Orange side goes to polar B on
the RS485 port of the DVR
Power
Video
Twisted Pair Cable
Twisted Pair Cable
BNC
DC12V
Power
Video
PTZ Control
PTZ Control
BNC
DC12V
- 04 -
