User Manual
_______________________________________________________________________________
SunComm Technologies Co., Ltd.
27

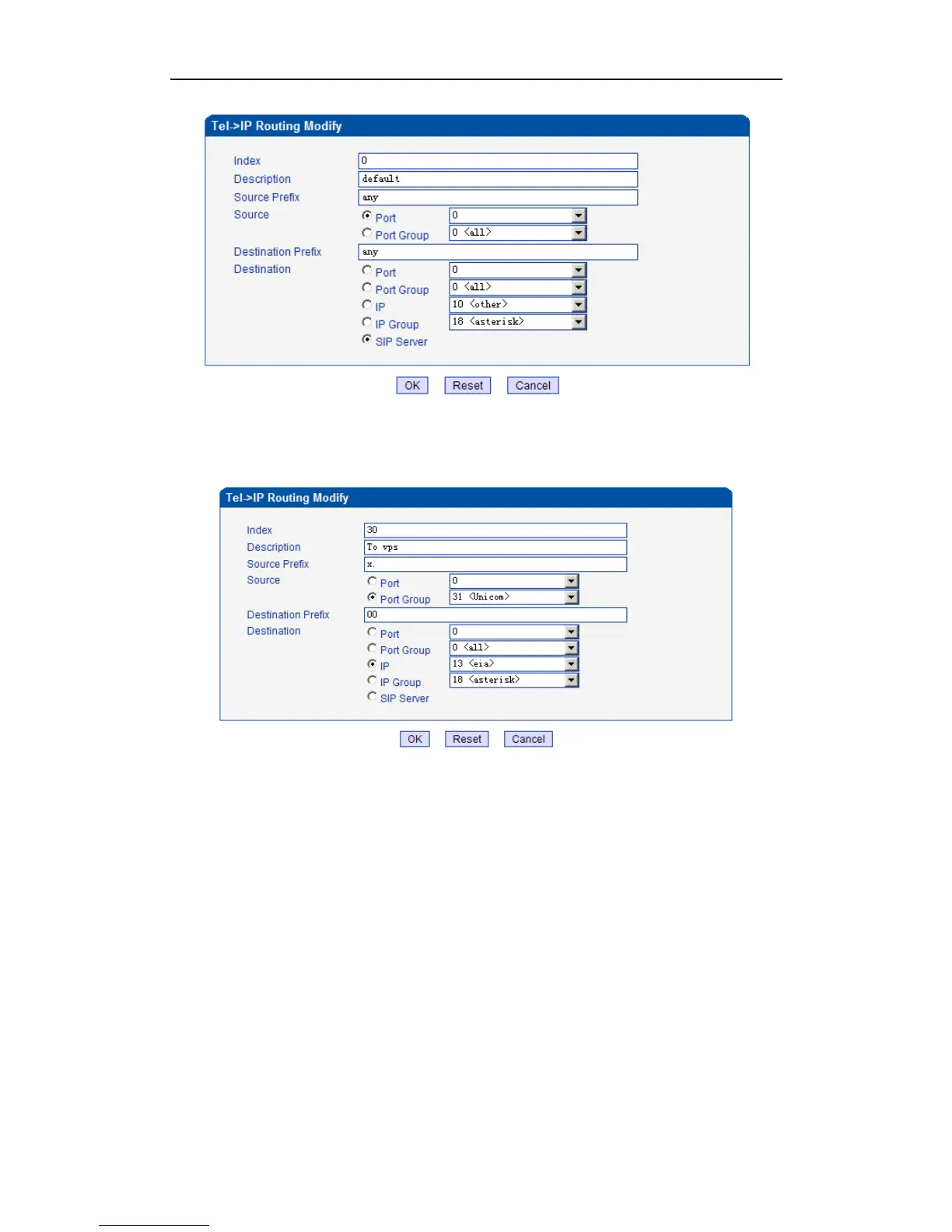

It's a default route configured in gateway. It allows any number from source port 0 send call to SIP
server with any prefix.
Figure 4-7-5 Tel to IP routing Modify
Add a GSM to VoIP route. It indicates that the calls coming from Port Group 31<Unicom> will
match the prefix ”x.”, ”x.” is a wildcard string which will match any prefix except ”anonymous”
calls. Meanwhile sending the calls destination IP 13<eia> if called number match with destination
prefix ”00”.
Figure 4-7-6 Tel to IP routing Modify
