User Manual
_______________________________________________________________________________
SunComm Technologies Co., Ltd.
35
Example
Index 31: barring the certain calling number from IP 14<elastix>

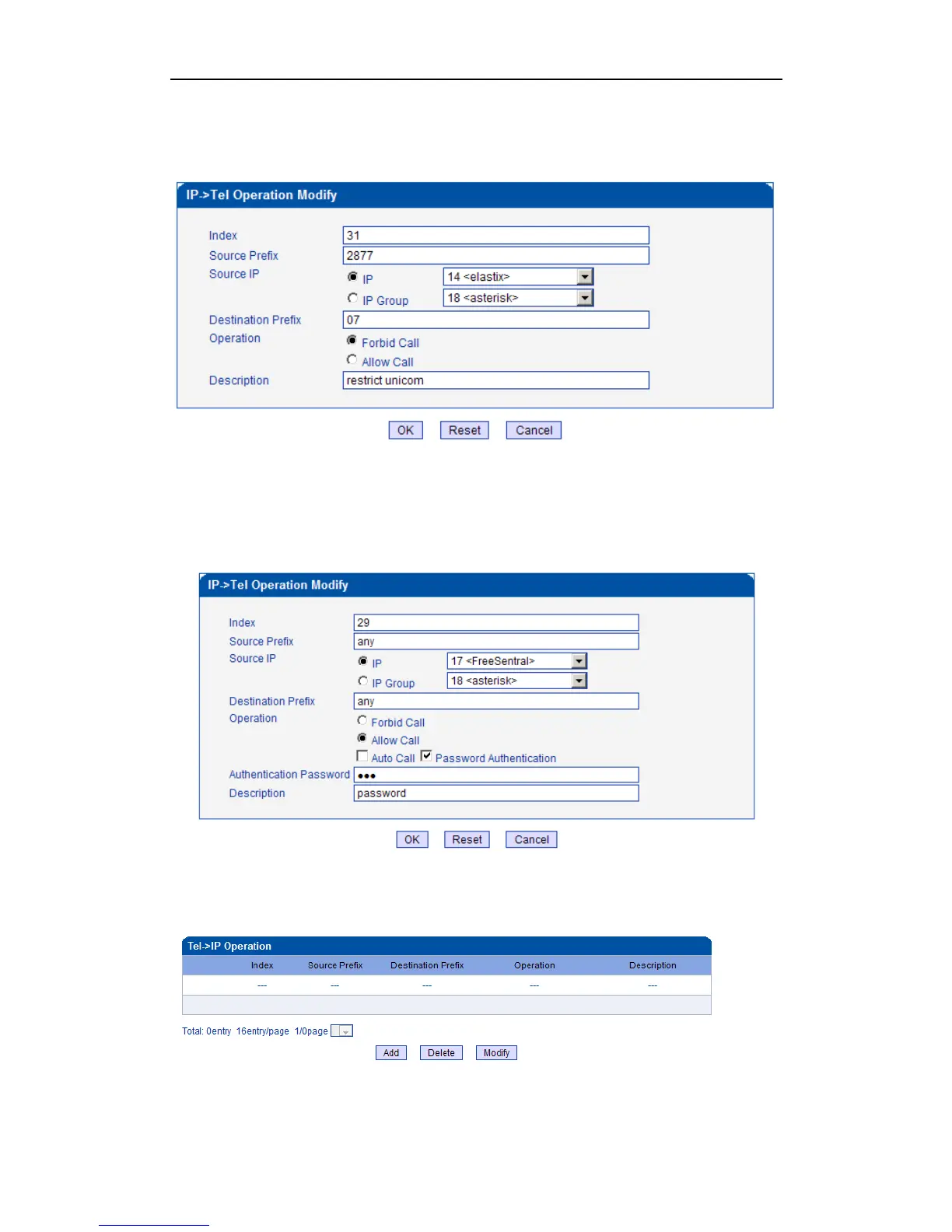

Figure 4-9-2 IP->Tel Operation Modify
It indicates that calling party from IP 14<elastix> matched prefix 2877, and also called party
matched prefix 07 are not allowed call out. The calls match this rule will be rejected by gateway.
Index 29: definite a rule for IP 17<FreeSentral> that all the calls must go with valid password
authentication.
Figure 4-9-3 IP->Tel Operation Modify
4.9.2 Tel->IP Operation
Figure 4-9-4 Tel->IP Operation
