1.1 Introduction
SC-1695i is full functions VoIP gateway based on IP and GSM wireless network, which provides a
flexible network configuration, powerful features, and good voice quality. It works for carrier
grade, enterprise, SOHO, residential users for cost-effective solution.
1.2 Scenario of Applications of Products
SC-1695i provides access of GSM network.
With the development of users and telecom service, mobile network and fixed network integration
will be steadily increasing. SC-1695i provides high quality VoIP service which perfectly meets the
requirement.
1.3 Product Appearance
The appearance of SC-1695ishows as follow

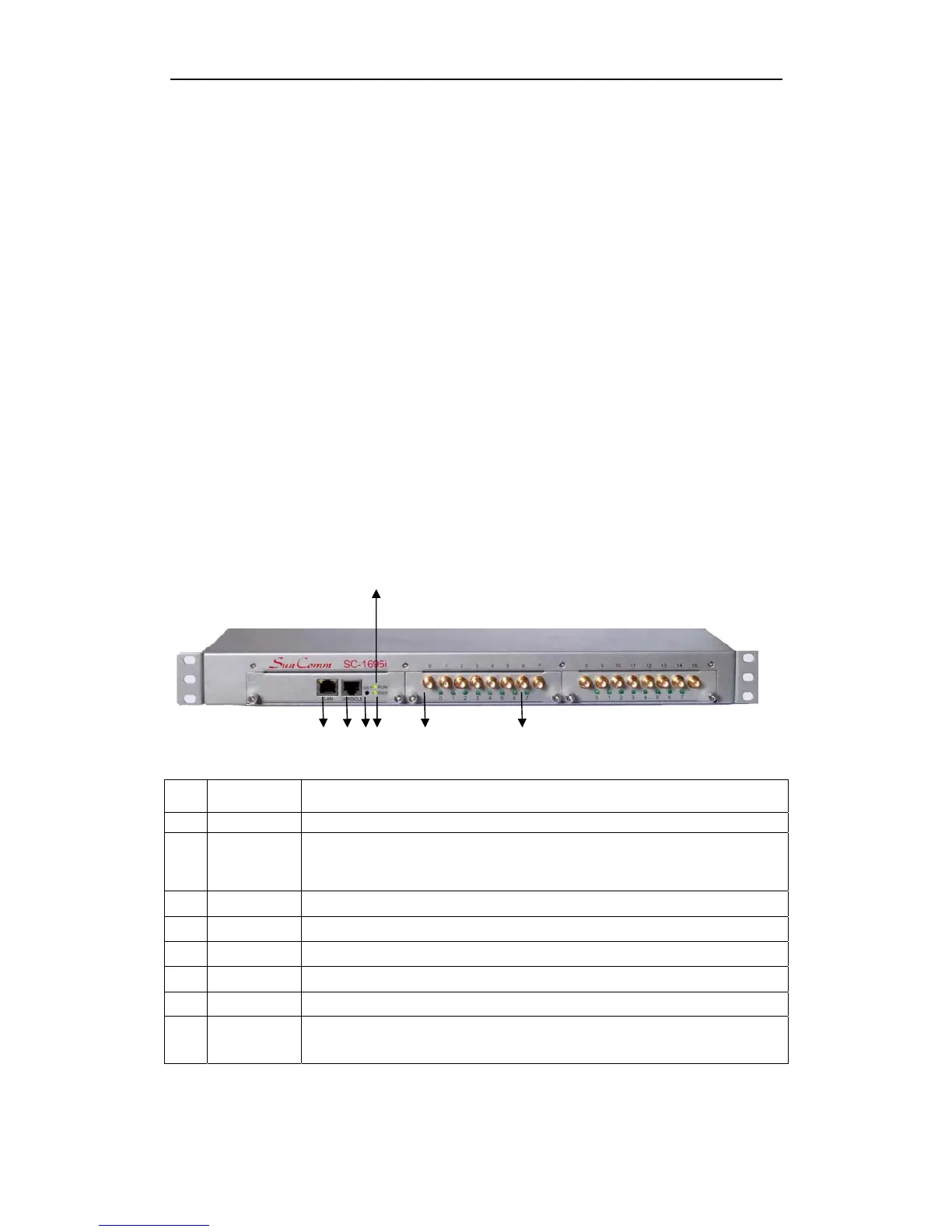

Figure 1-3-1 Front view of SC-1695i
Table 1-3-1 Description of Front view
Inde
Sign
Description
1 LAN Ethernet Interface,10/100M Base-TX, RJ-45
2 CONSOLE
Serial port is a serial communication physical interface through which information
transfers in or out one bit at a time, DB-9 connector
3 RST Used for reset the configuration to factory. Need keep press for 5 seconds
4 RUN Indicate the status of the device.
5 PWR Indicate the status of the power connection
6 ANT Interface Standard antenna interface
7 ANT indicator Indicate the status of the SIM card register
8 ANT
An antenna (or aerial) is an electrical device which converts electric currents into radio
waves, and vice versa
1 2 3 5 6 7
4
