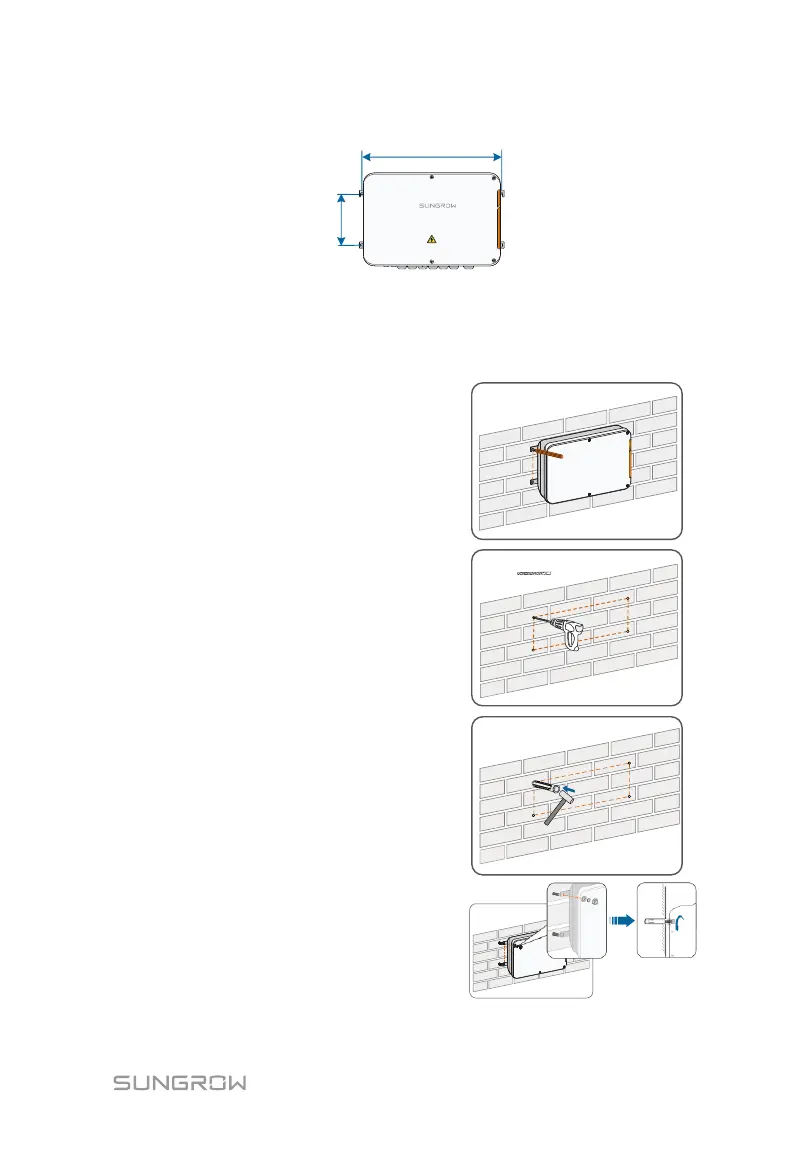

The following figure shows the installation dimensions of the COM100.
460mm
174mm
Concrete Wall
Step 1 Select an appropriate installation
surface.
Step 2 Mark positions for drilling holes with
a marker.
Step 3 Drill the holes with a drill according
to the marks made before.
φ8
Step 4 Secure all the expansion bolts into
the holes with a rubber hammer.
Step 5 Fix the COM100 onto the
installation surface with the
enclosed fasteners.
