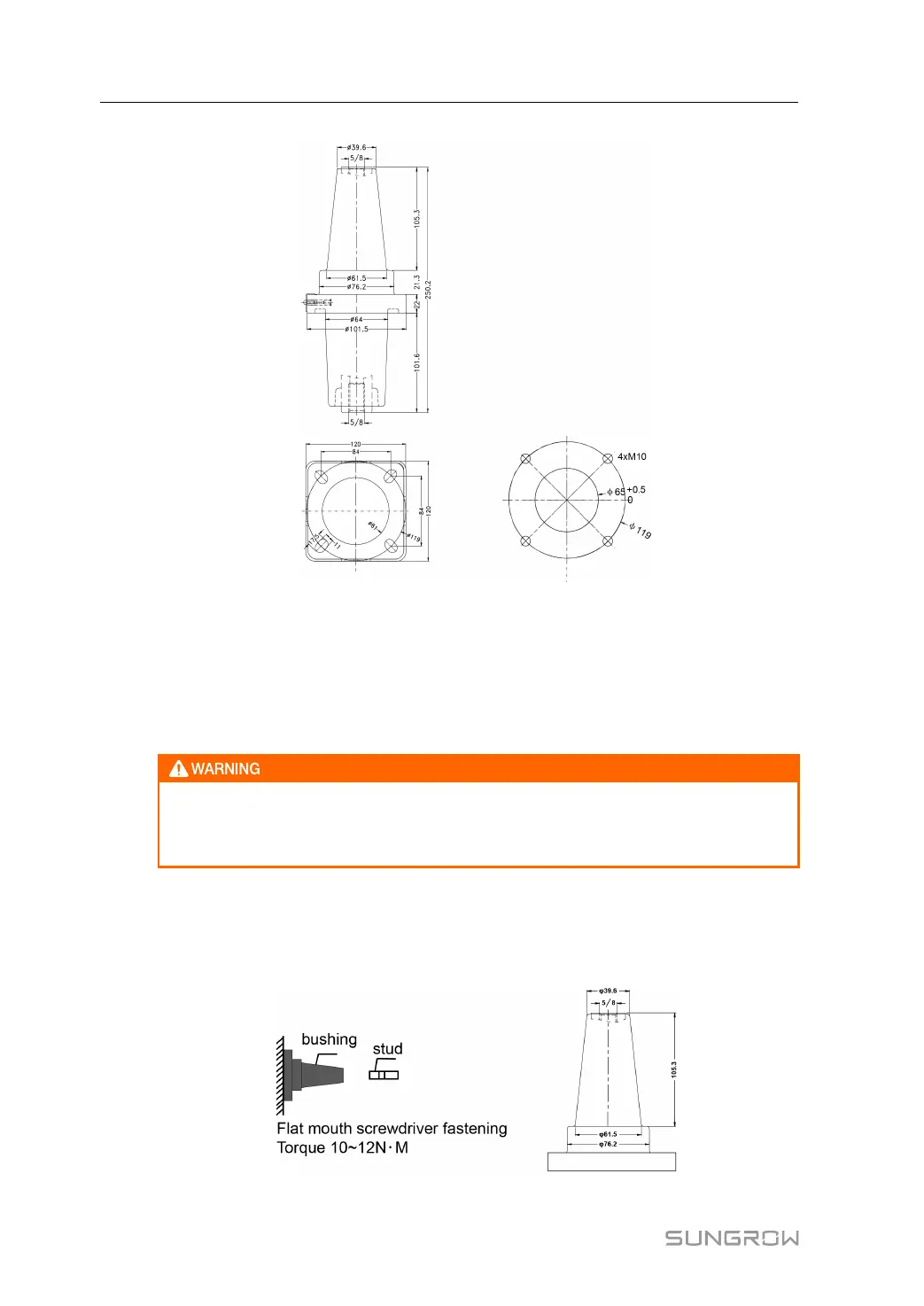

figure 3-1 Cable connection terminal
* The figure above only takes 34.5kV as an example. If the voltage level of the purchased
transformer is not 34.5kV, please contact Sungrow for corresponding information.
Requirement
The medium-voltage cables must be fitted with type C connection plugs.
Use only tined-copper threaded stud provided by Sungrow. Substitution of the
threaded stud is not allowed or shall be reviewed by SUNGROW technicians
otherwise it shall void manufacturer warranty.
3.2 Connection Procedure
Rotate threaded pin into bushing nut eye until bottom.
