Sungrow MVS4480-US - Earthing Plate; Bushing

31

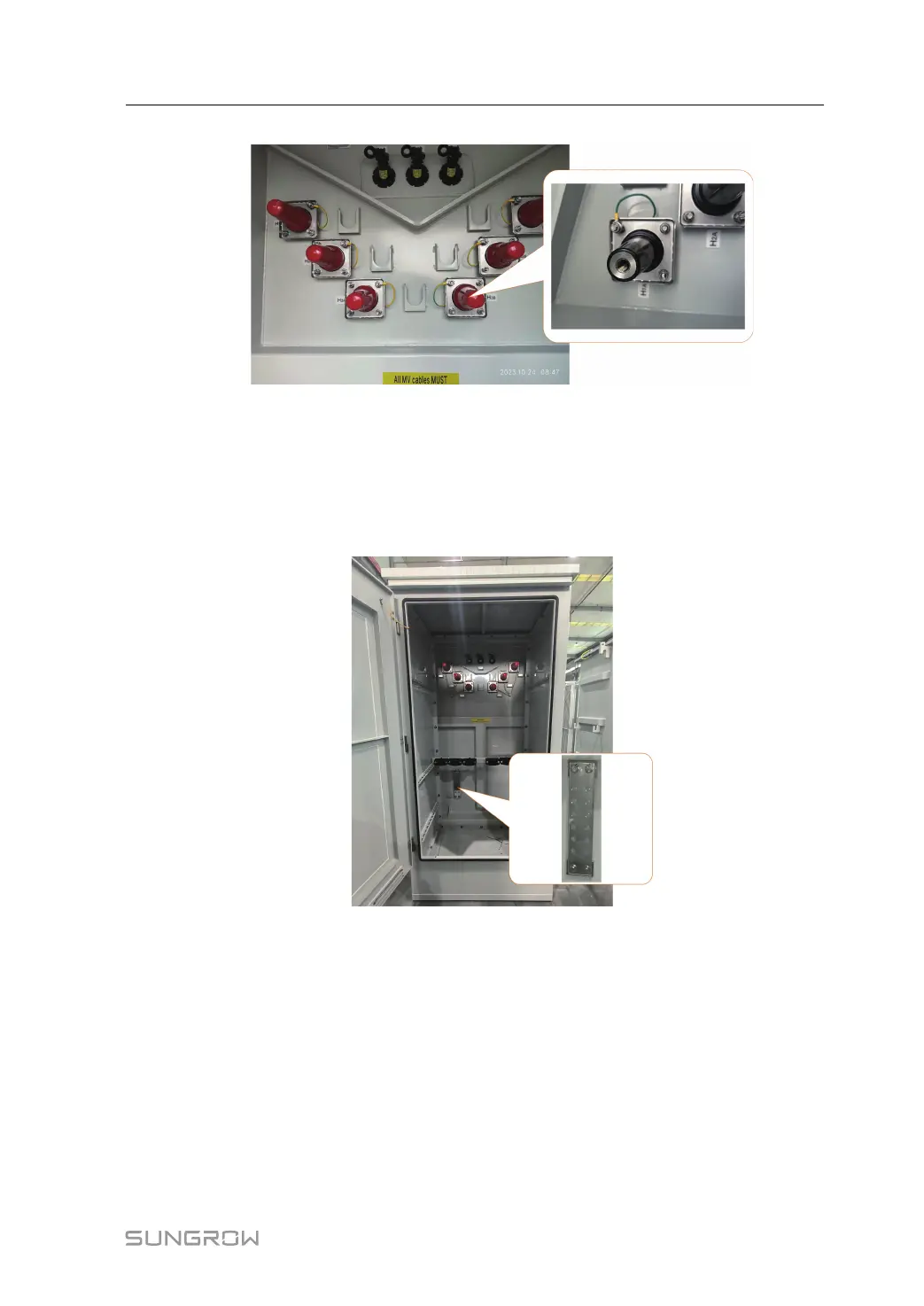

figure 8-12 HV Bushing
8.5 Earthing Plate
The earthing plate is used for grounding AC shielded cables, as shown in the following
figure.
figure 8-13 Earthing Plate
8.6 LV Bushing
The LV bushing is tined copper and used for connecting the Inverter or PCS output busbar
as below figure shows.
User Manual 8 Components and Accessories
