26

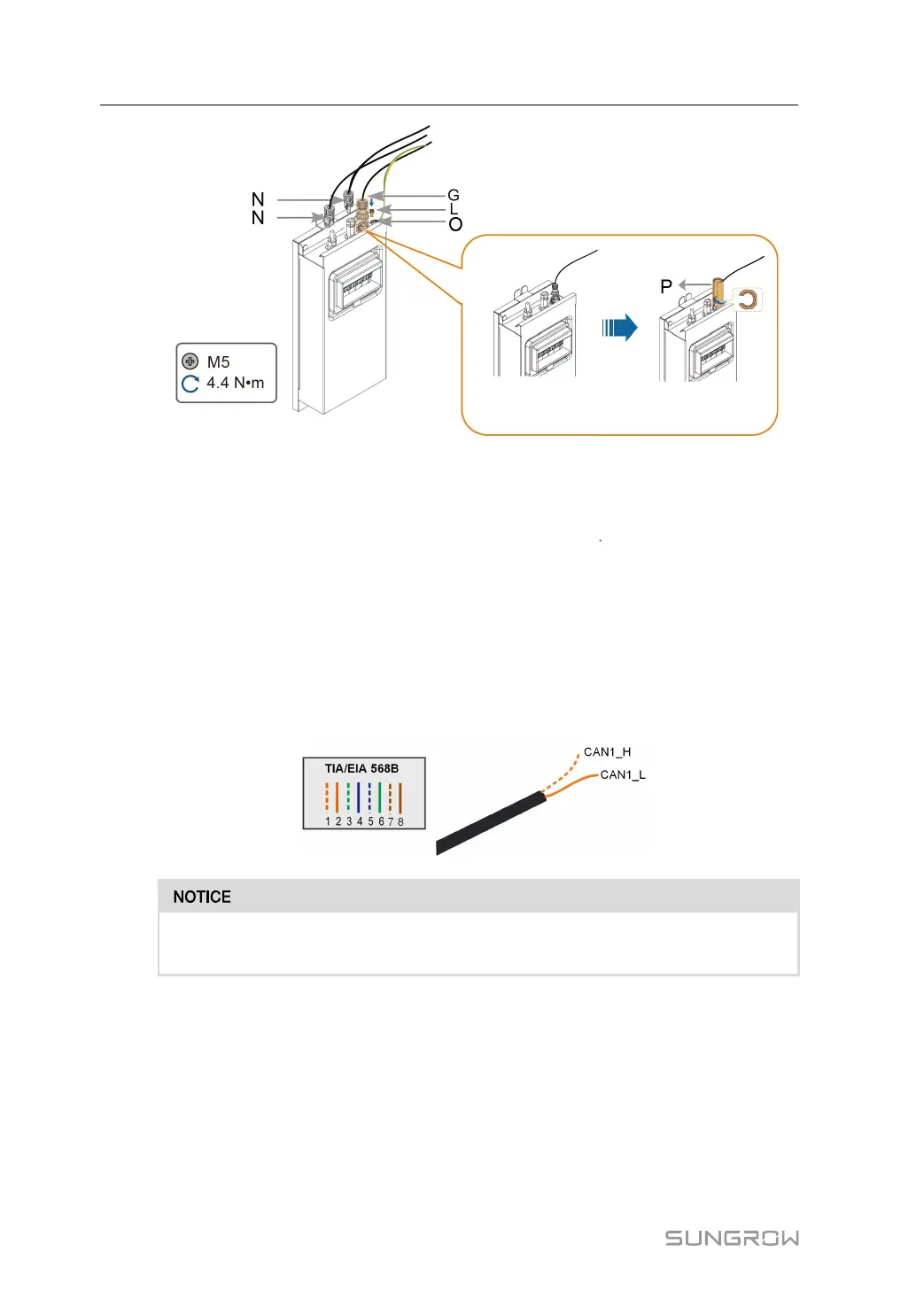

For communication between the battery and the PCS, after connecting the communication
cable to the COMM port, use the communication cable fastening tool to tighten the cable
clockwise. Then conncet to the PCS using the other end of the communication cable. Strip
the insulation layer of the communication cable with a wire stripper, and lead the corre-
sponding CAN1_H/CAN1_L signal cable out. Cut off the redundant signal cable and warp it
with a heat-shrink tubing. Signal cable 1 white and orange cable is used as CAN1_H; and
signal cable 2 orange cable is used as CAN1_L.
Please ensure that the MC4 cable are connected to same terminals, as shown
below.
4 Mounting User Manual
