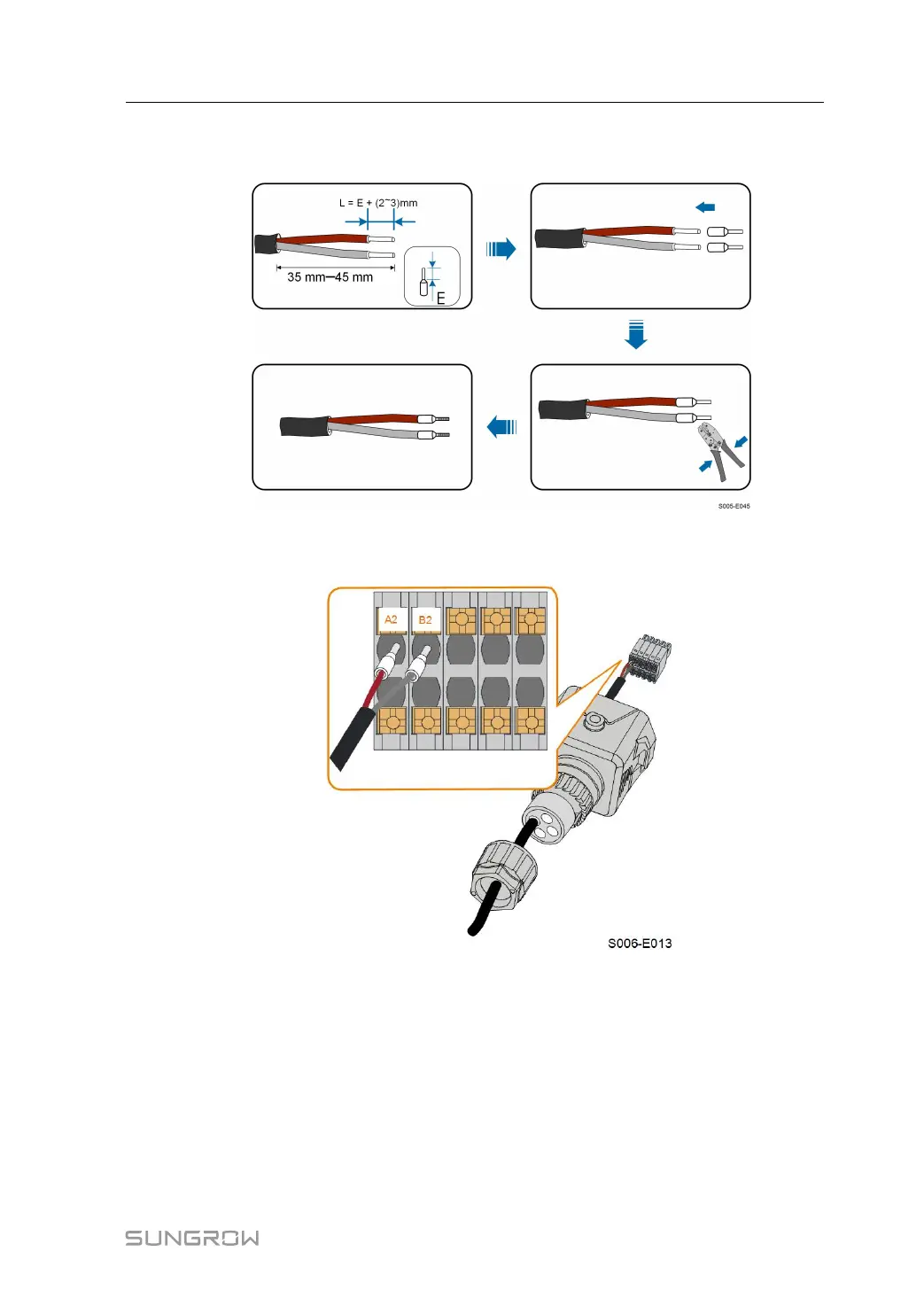

step 4 (Optional) When using a multi-core multi-strand wire cable, connect the wire head to the
cord end terminal. In case of single-strand copper wire, skip this step.
step 5 Plug the wires into the corresponding terminals as shown in the following figure. Ensure that
the wires are securely in place by slightly pulling them.
step 6 Insert the terminal plug into the COM2 terminal at the bottom side of the inverter and then in-
stall the housing.
