Sungrow SG10RS - Page 64

54

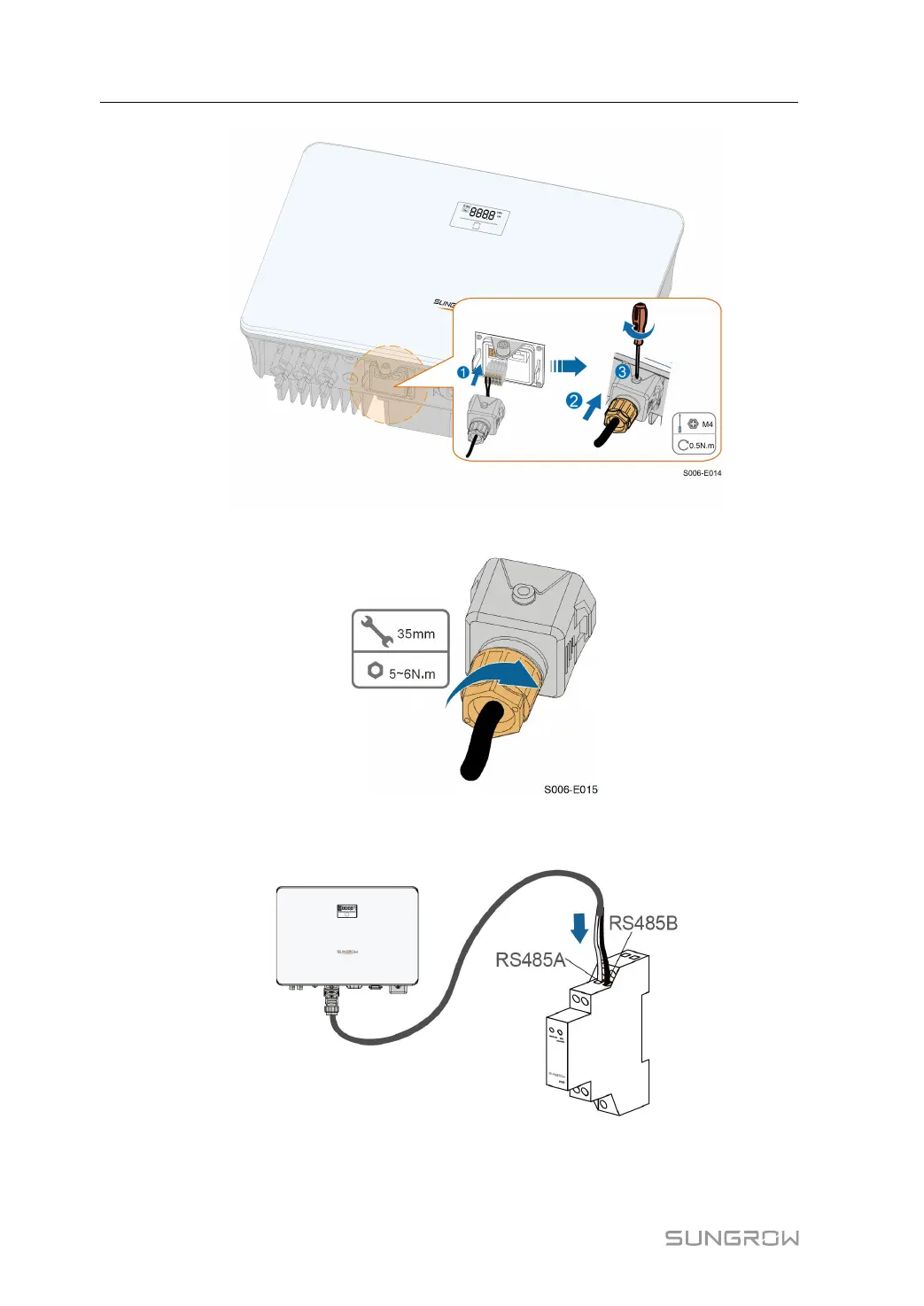

step 7 Slightly pull out the cable and then fasten the swivel nut. Lock the connector with the screw.
step 8 The other end of the communication cable is connected to the RS485A and RS485B ports
of the smart meter.
- - End
5 Electrical Connection User Manual
