Appearance
The following figure shows the appearance of the inverter. The image shown here is for
reference only. The actual product received may differ.

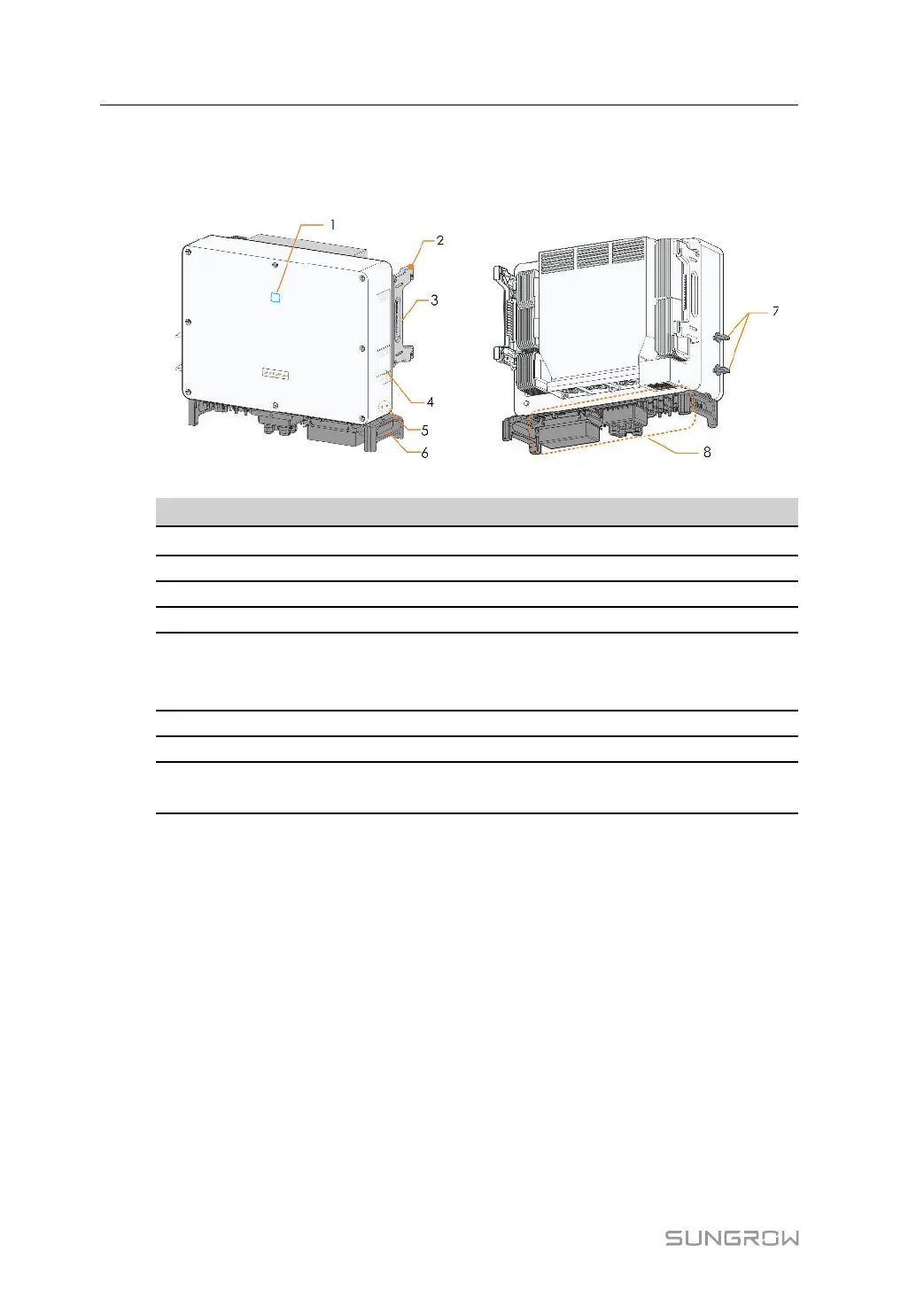

figure 2-2 Inverter Appearance
No. Name
Description
1
LED indicator
To indicate the current working state of the inverter.
2
Mounting lugs To hang the inverter onto the mounting-bracket.
3
Side handles
To move the inverter.
4
Labels
Warning symbols, nameplate, and QR code.
5
External protective
grounding
terminals
Use to ground the inverter.
6
Bottom handles To move the inverter.
7
DC switches
To disconnect the DC current safely.
8 Wiring area
AC terminals,DC terminals, and communication terminals.
For details, refer to
"5.2 Terminal Description"
Dimensions
The following figure shows the dimensions of the inverter.
2 Product Description User Manual
