Sungrow SG5.0RT-P2 - Installing the COM Connector

60

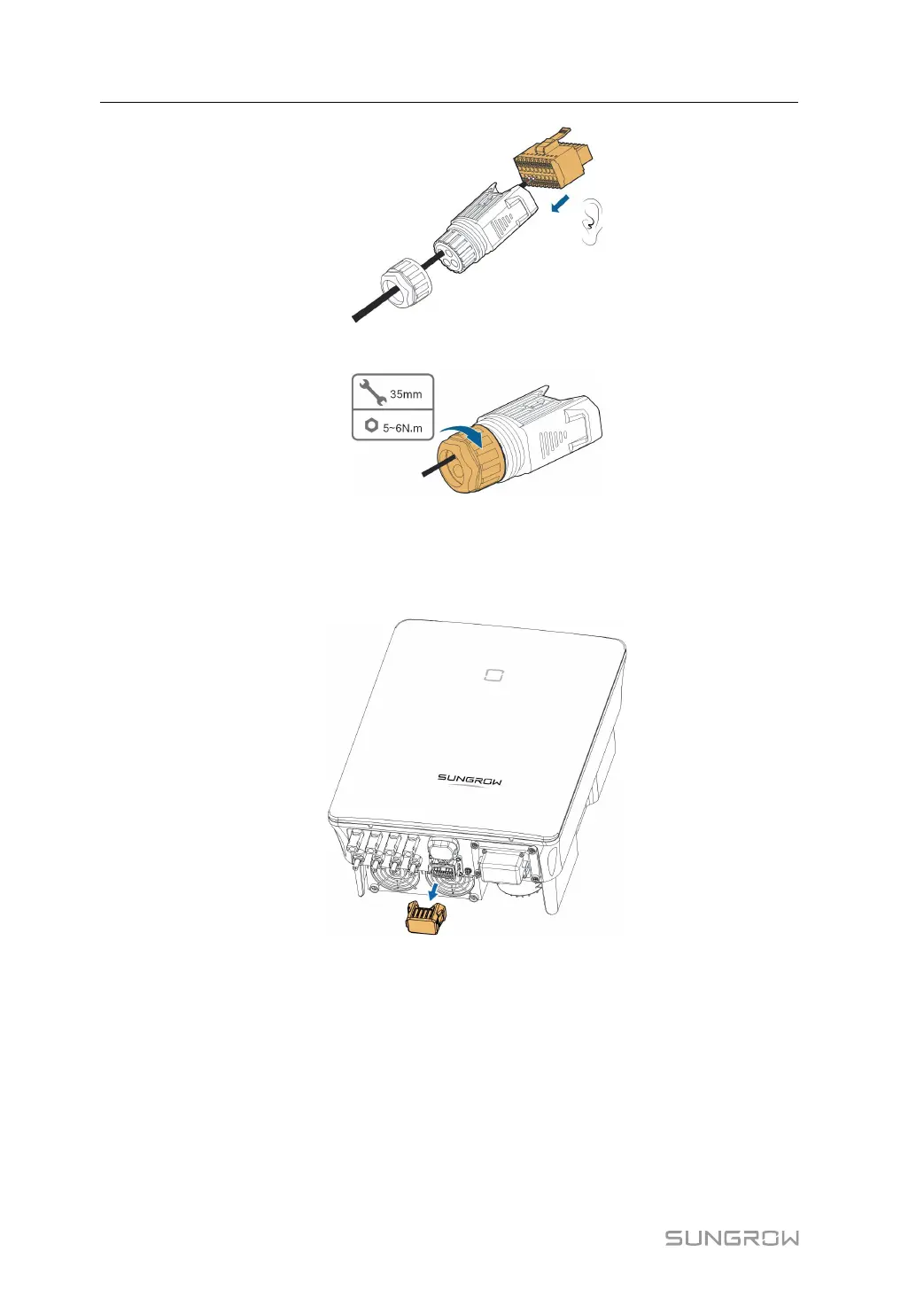

step 8 Fasten the swivel nut.
- - End
5.9.2 Installing the COM Connector
step 1 Remove the waterproof lid from the COM2 connector.
step 2 Insert the COM connector into COM2 terminal on the bottom of the inverter until there is an
audible click.
5 Electrical Connection User Manual
