2 Mounting Inverter onto the metal
frame
Select the installation location and regulate the clearances of multiple inverters,
referring to the user manual.
Move the inverter to the installation site with the help of another person or the
lifting device by means of the handles.
Install the inverter onto metal frame as following procedures.
Step 1 Remove the backplate and fasteners from the packaging.
Step 2 Place the backplate to the chosen metal frame and adjust it to proper
position and height.

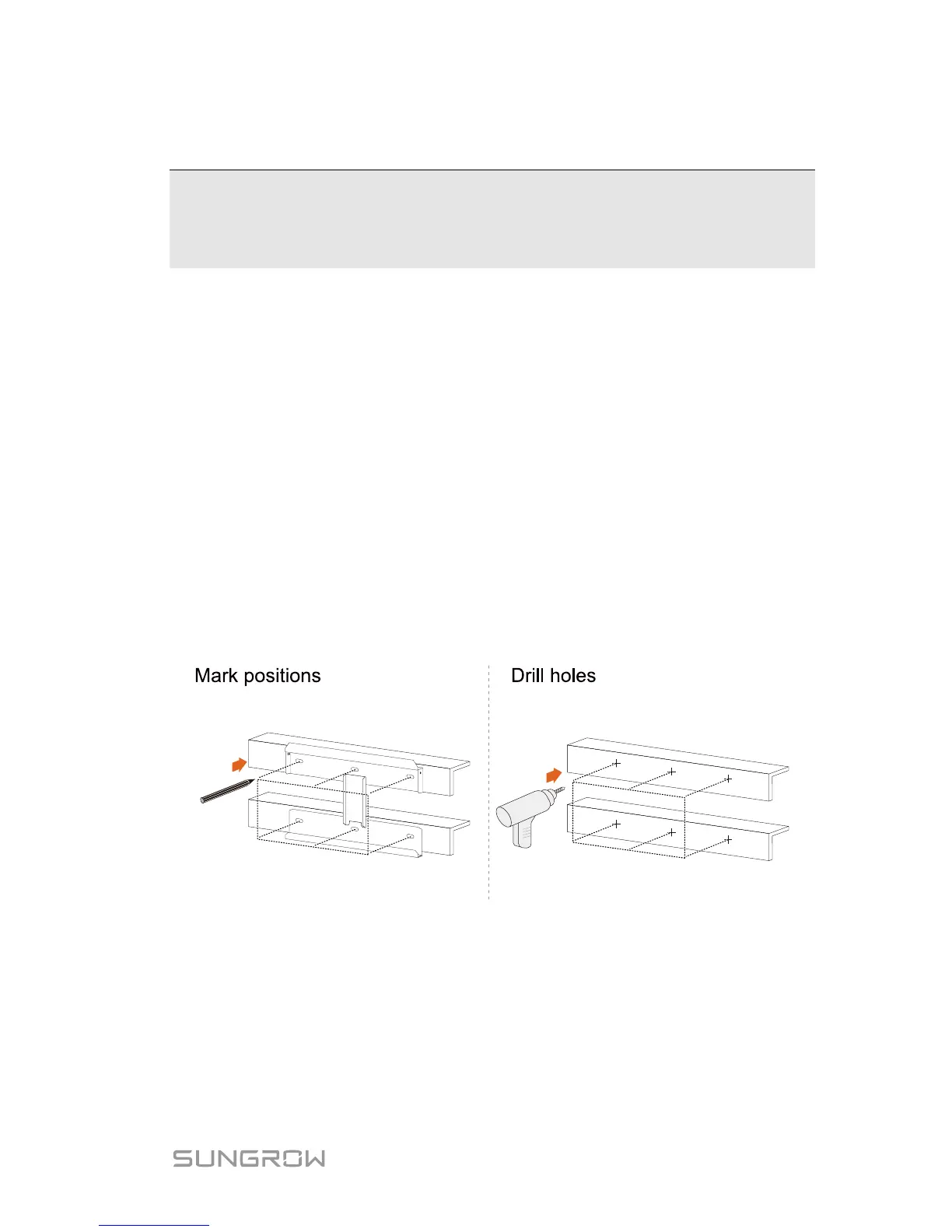

Step 3 Mark the position for holes drilling according to the holes position of the
backplate.
Step 4 Drill holes according to the marks make before. If the shape of the metal
frame does not match the backplate, re-drill holes on the backplate
according to the metal frame chooden.
