Sungrow SG80KTL Quick Installation Guide

5
3 Electrical Connection
Death hazards due to high voltage existing inside the inverter!
Make sure that all the DC and AC cables to the inverter are not live before you
start the electrical work.
Do not turn on the AC side or DC side circuit breaker until all inverter electrical
connections have completed.

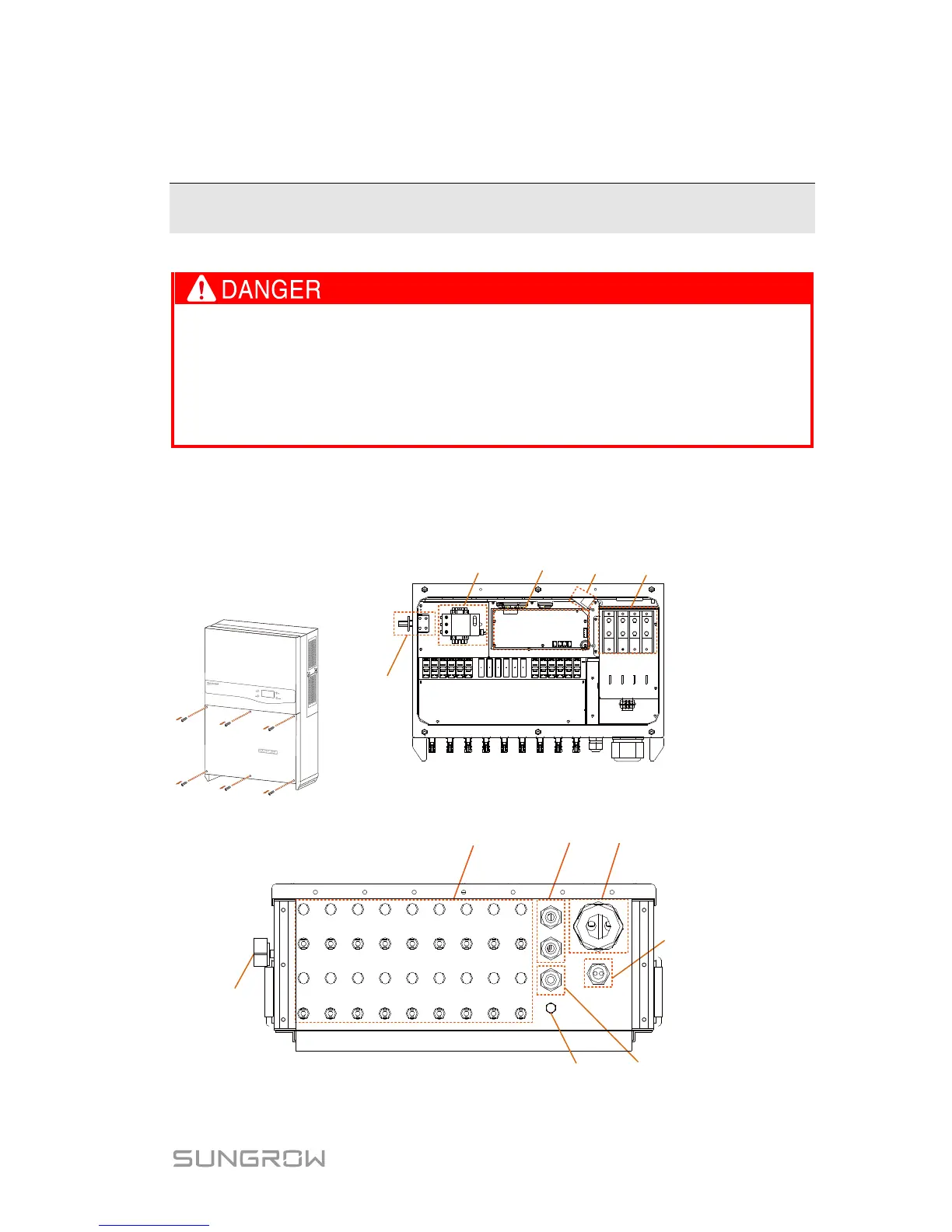

3-1 Open the Connection Cabinet
Loose the six screws on the front cover of the connection cabinet and remove the
front cover to see the internal layout of the connection cabinet.
Configuration
circuit board
DC switch
DC SPD Cooling fan
AC crimping
terminal
Front view
AC cable gland
DC switch
Waterproof
air valve
Communication
cable glands
DC input plug-in
terminal
Bottom view
DI/DO cable
gland
AC cable gland for
connecting Tracker
control cabinet
