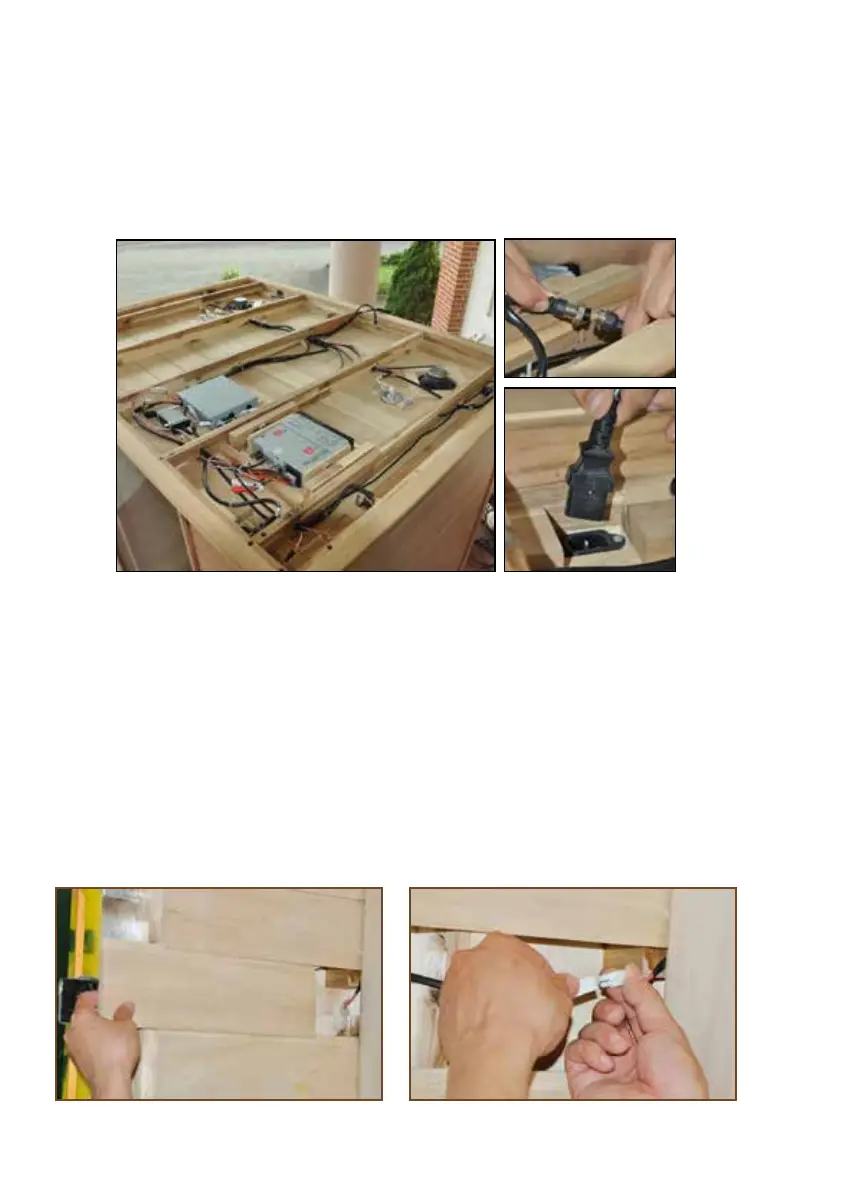

8. MAKING ROOF CONNECTIONS
Feed all power cords from walls into the roof panel, plug in the four power
connectors (F) into the top of each of the 4 walls. Then connect the two
barrel type connectors (E). Replace wooden “dust covers”.
9. MAKING WALL TO FLOOR CONNECTION
Access wires by first removing the floor heater cover, then sliding a board
(located towards the back right of the opening) over to access the connector.
It should slide easily, and be directly next to where the wires are coming out
of the bottom of the wall panel. You will find a two-pin connector - which will
click together with the male connector coming from the bottom of the wall
panel when properly connected.
