TOP VIEW
FRONT VIEW SIDE VIEW

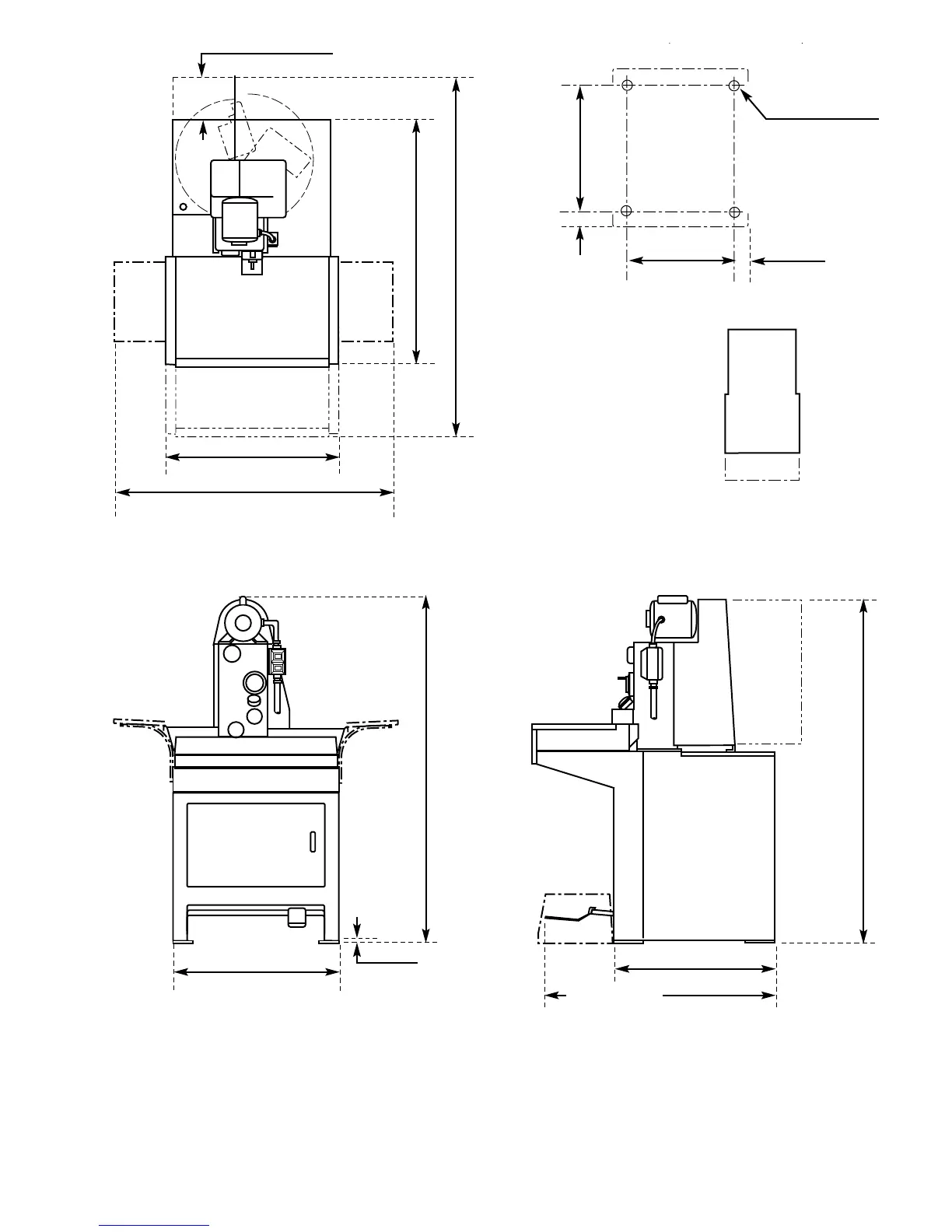

OUTLINE LAYOUT
Scale:
1 mm = 48 mm
1/4 in. = 1 ft.
Weight Installed:
Approximately 287 kg. (630 lbs.) including coolant.
Floor Loading:
Less than 739 kg/sm (151 lbs/sf).
152 mm (6 in.)
WITH DOOR OPEN
1524 mm (60 in.)
WITH PAN EXTENDED
1054 mm 41.5 in.)
WITH PAN RETRACTED
813 mm
(32 in.)
730 mm
(28.75 in.)
700 mm
(27.5 in.)
6,5 mm
(0.25 in.)
1600 mm
(63 in.)
FRONT
587,4 mm
(23.125 in.)
72 mm
(2.8125 in.)
15,9 mm (0.625 in.)
DIA. (4 HOLES)
533,4 mm
(21 in.)
83 mm
(3.25 in.)
ADJUSTABLE
1575 mm
(62 in.)
1250 mm
(49 in.)
OPTIONAL
WORK TRAY
OPTIONAL
WORK TRAY
