Installation-Assembly Procedures
Attaching Hinge Brackets to Bench

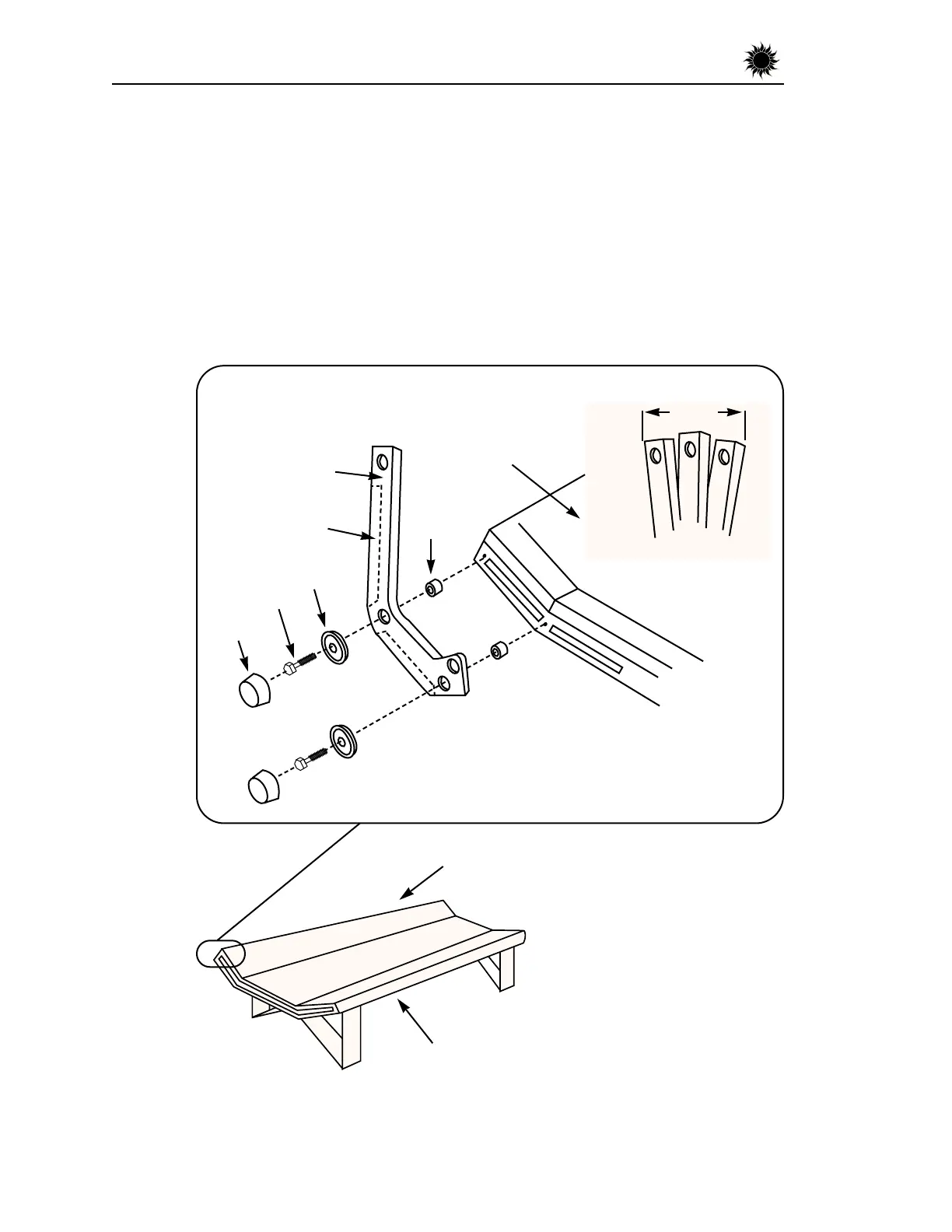

Locate the two hinge brackets and attach to the bench as shown below.
1. Attach the left and right hinge brackets to each side of the bench as shown below,
making sure that the flanges of the hinge brackets face the bed frame. Tighten the
bolts on one of the brackets until seated, then an additional half turn. Leave the
other bracket loose to allow for 1/2" to 3/4" of travel at the hinge point.
ELECTRICAL CONNECTIONS SIDE
FRONT OF BENCH
1/2" to 3/4"
BENCH
SPACER
HINGE
BRACKET
SAUCER
WASHER
PLASTIC
CAP
5/16" X 2"
BOLT
FLANGE
