Installation-Assembly Procedures
Attaching Legs to Bench

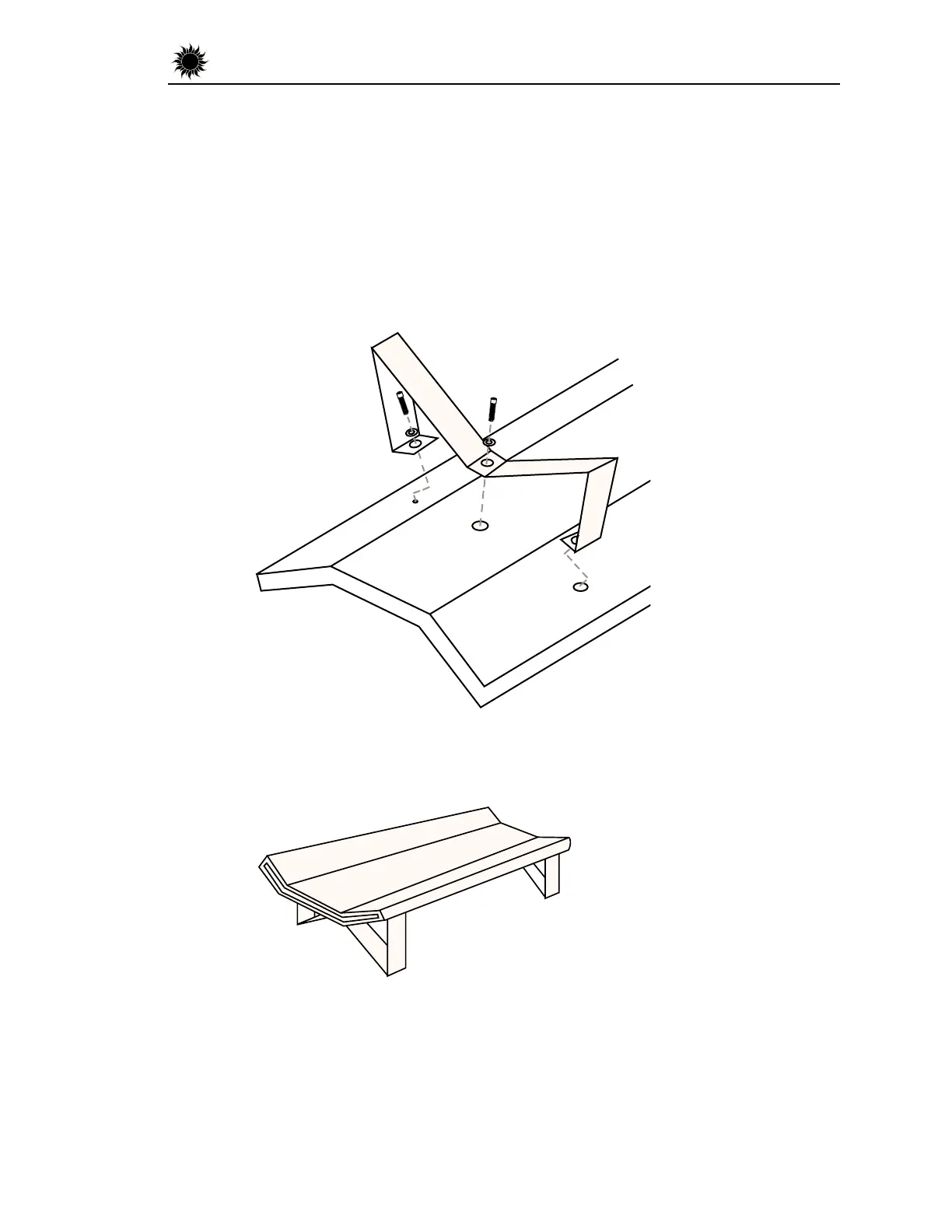

Lay the bench upside down on the floor. Locate the two legs and attach to the
bench as shown below.
1. Using the 5/16" x 1" bolts and the 5/16" washers, attach the legs to the bed as
shown. Install center bolt first. You may have to gently push sides of legs in to align
holes. Tighten with wrench.
2. Turn bench right side up on floor. Place so that power cord connector is facing
toward wall outlet.
