5.1 Attention
● Prevent air, dust and other sundries from going into the water pipes.
● Fix the whole system before install the water pipes.
● Water inlet and outlet pipes shall be protected by the insulation layer.
● Stable water velocity shall be ensured, so that excessive throttling can be avoid.
● When moving, water inlet and outlet pipe shall not be used for hanging, only the holes on the beam
of the base can be used, please refer to Figure 9

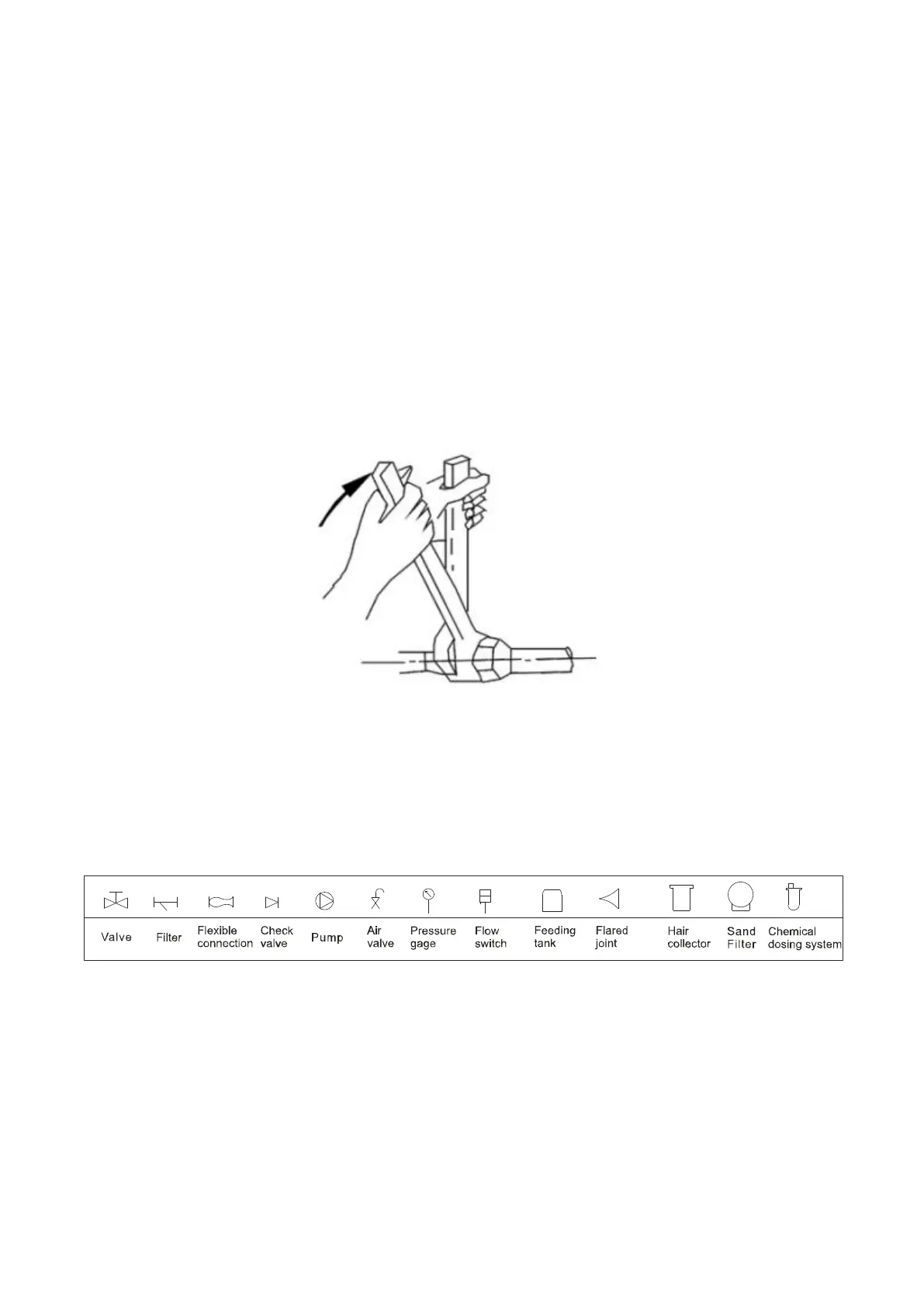

● When connect the water inlet and outlet pipes, two pipe wrenches shall be used to control the two
parts of the pipes, and ensure the water inlet and outlet pipes not turning around, please refer to the
Figure 7
Figure 7
5.2 Instruction
5.2.1 Marginal data
5.2.2 Pipeline installation diagram
