4.5 Reserve the installation base for the heat pump

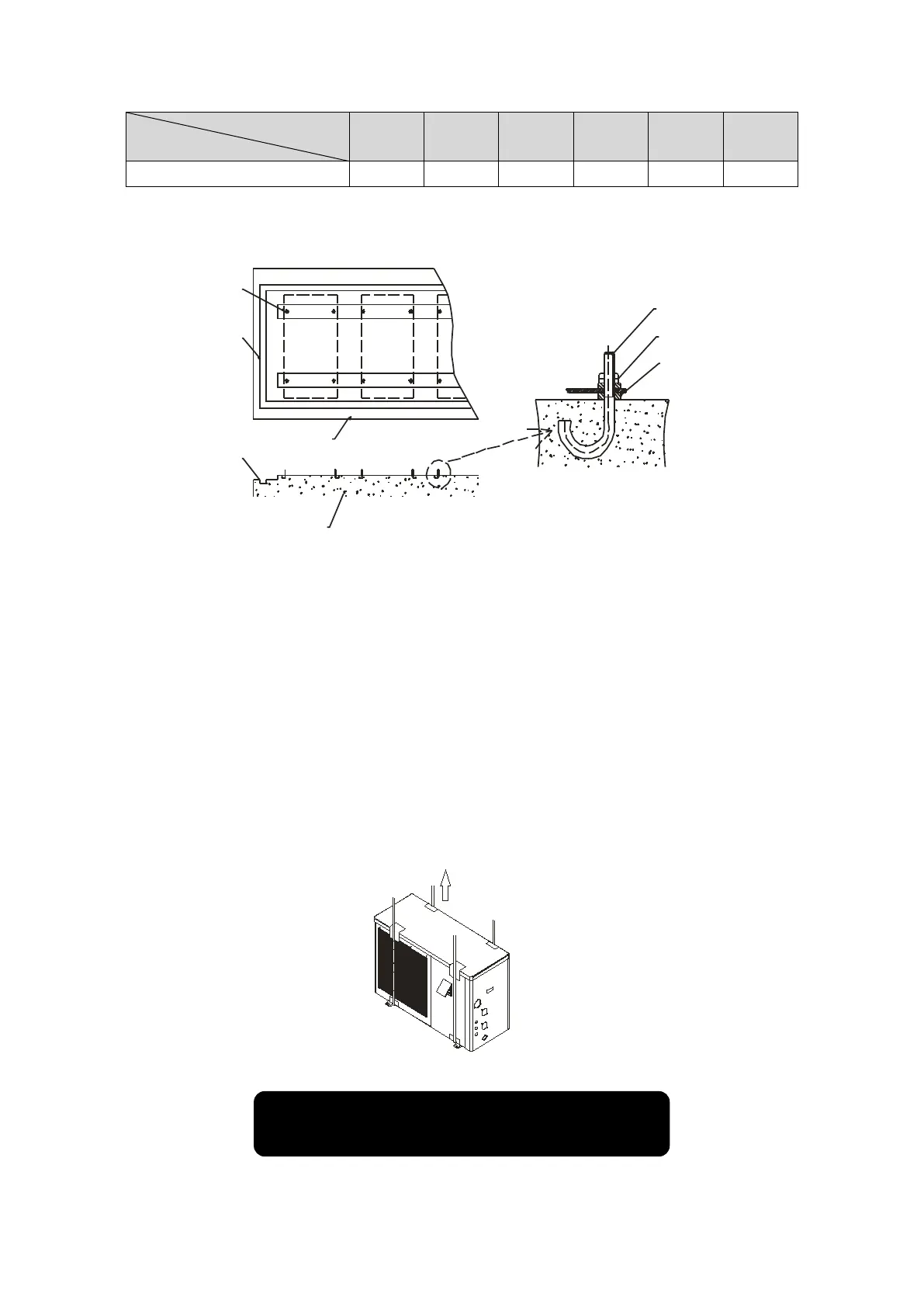

Please refer to Figure 5.
A n c h o r b o lt
Drainage tray
Heat Pump
Installation base
Concrete
Anchor bolt
Screw nut/washer
Shock absorb
Heat Pump
Drainage tray
Figure 5 Reserved installation base
4.6 Hoisting attention
● Please use four or more soft lifting belts to move the sets Figure 6.
● Please use protective plate on the surface of the sets when moving, to avoid scratch and
deformation.
● Recheck whether the foundation is correct before hoisting the unit.
● The heat pump will produce condensation water,please consider the drainage channel when make
the installation base.
● Please put shock absorb on base surface.
Figure 6 Hoisting diagram
5. Installation of the pipeline
