Sunsation Instructions Manual
15
Splice Kit Option
Entering an elevator or shallow staircase with a long awning is not always possible. The
awning may be provided (requested by the customer) in two pieces and will need to be
assembled at installation location.
The splice kit is a set of components that will enable you to connect the awning proles and
the hood.
You're now ready to insert the fabric to the top roller and the front prole.

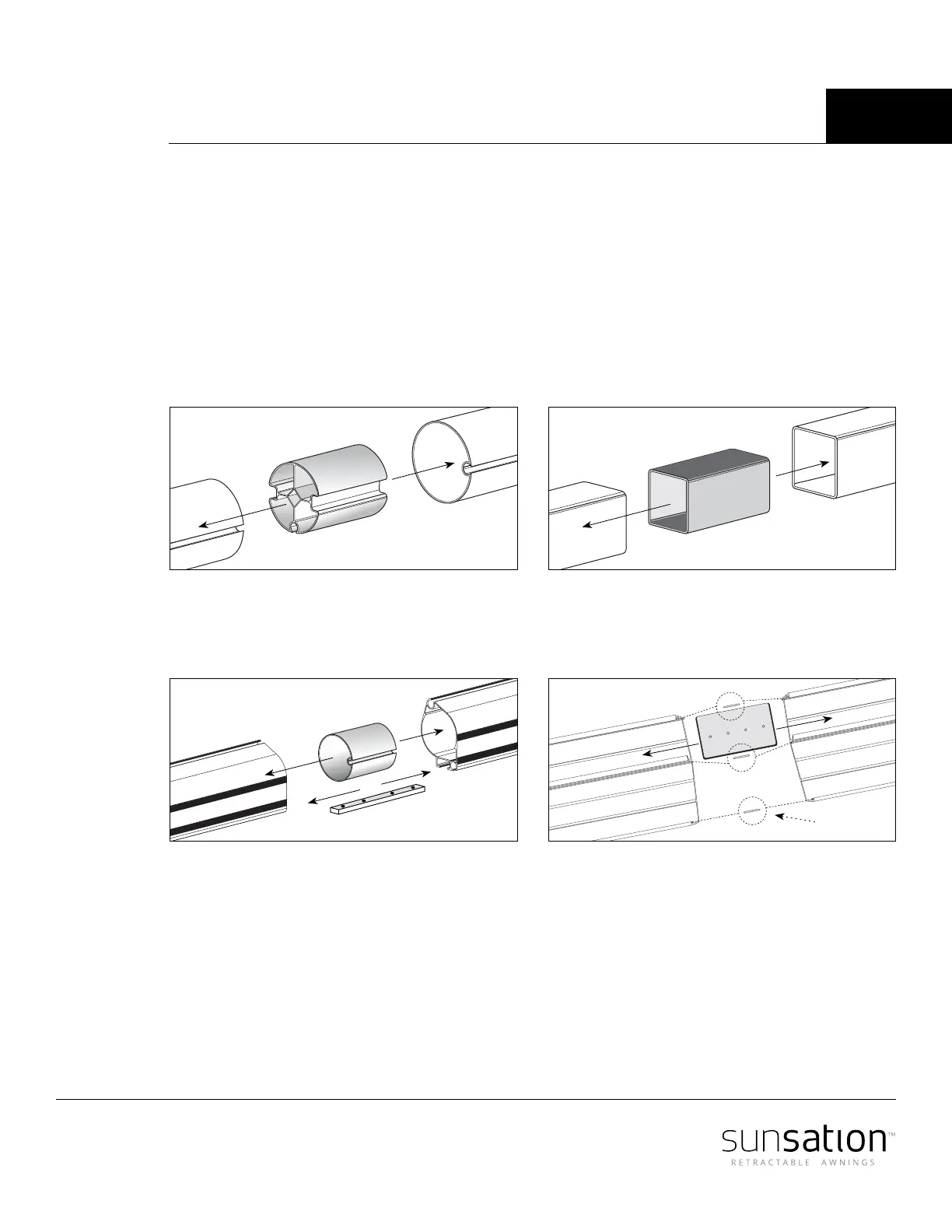

Insert the roller tube connector approx 10" on each
side and then fasten it with (SS64) rivets.
Insert the joint plate and fasten the Allen screws
(2 on each side). Insert the roller tube connector
approx 10" on each side and then fasten it with
(SS64) rivets.
Insert the Squre bar connector approx 10" on each
side and then fasten it with (SS64) rivets.
Insert the 3 provided pins, then glide in the joint
plate (placed half on each side) and fasten the Allen
screws (2 on each side).
Roller tube
Front prole
joint plate
Insert 3 pins
Squre bar
Hood (upside down)
