SunSetter 1000XT Homeowner’S Operation And Maintenance Manual

9
12
FIGURE 7
CAUTION: Be sure that both Rafters are
unlocked.

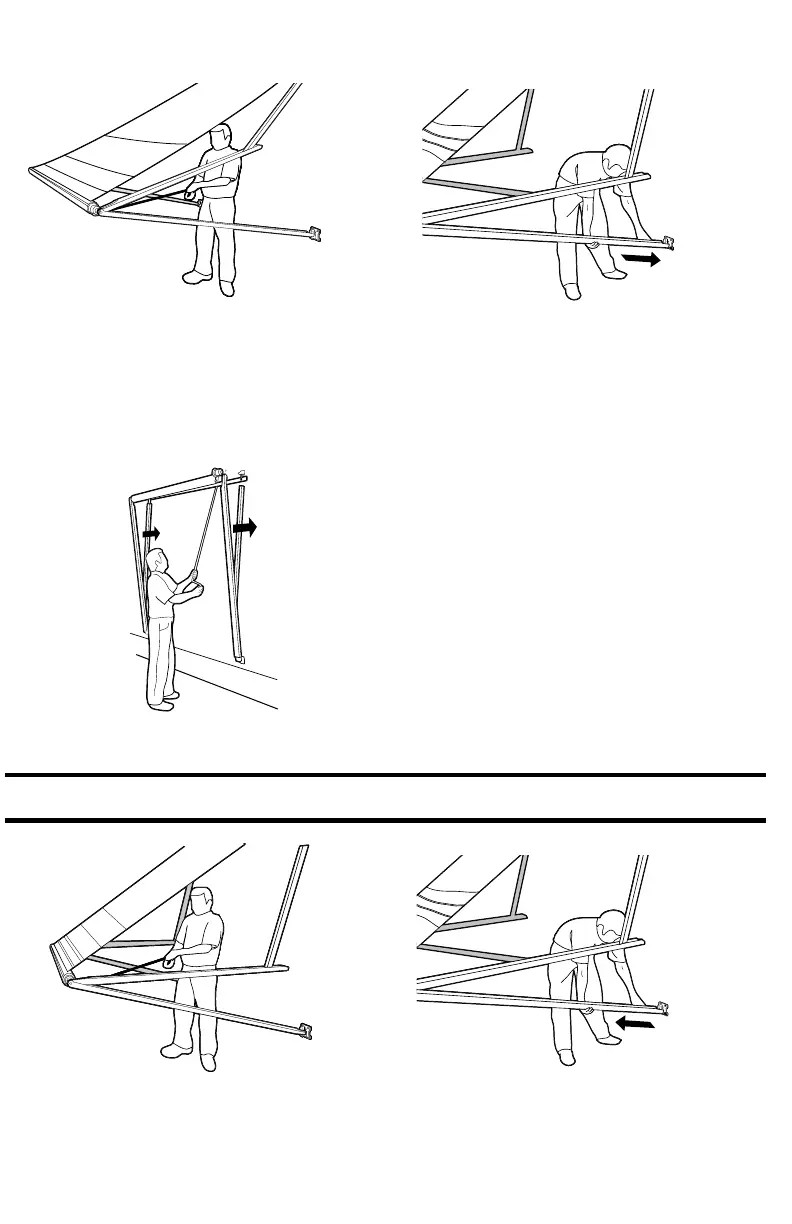

Using the hand crank, roll up the awning
until the front roller reaches head height.
FIGURE 8
Lower both arms all the way down.
Left arm vertical, right arm angled
OPEN:
FIGURE 1
Using the hand crank, unroll the
awning until the front roller reaches
waist height.
FIGURE 2
Extend both arms until the front roller
reaches head height.
FIGURE 2
Release the LEFT arm from the deck
plate by lifting the ground bracket
handle and rotating approximately
1/4 turn counter-clockwise to unlock.
FIGURE 3
Extend this arm until the height of the
lift handle reaches waist height.
FIGURE 4
Swing the LEFT arm back towards the
house and secure it in the wall bracket.
CLOSE:
FIGURE 1
Lower the RIGHT arm until the front
roller reaches head height.
FIGURE 5
Lower both arms until the front roller
reaches waist height.
FIGURE 6
Unlock both rafters by pressing the
rafter lock latch.
Rafter lock
Latch
Deck Plate
UNLOCK
FIGURE 9
Using the hand crank, roll up the awning
until it is completely against the house.
CAUTION: Once the awning is closed
against the house, do not continue
cranking.
We recommend that the hand crank wand
be removed from the crank loop when it
is not in use to prevent damage to your
house.
