SunSetter 1000XT Homeowner’S Operation And Maintenance Manual

8
13
FIGURE 7
CAUTION: Be sure that both Rafters
are unlocked.
Using the hand crank, roll up the
awning until the front roller reaches
head height.
FIGURE 8
Lower both arms all the way down.
Both arms vertical, (a helper is needed for this position)
OPEN:

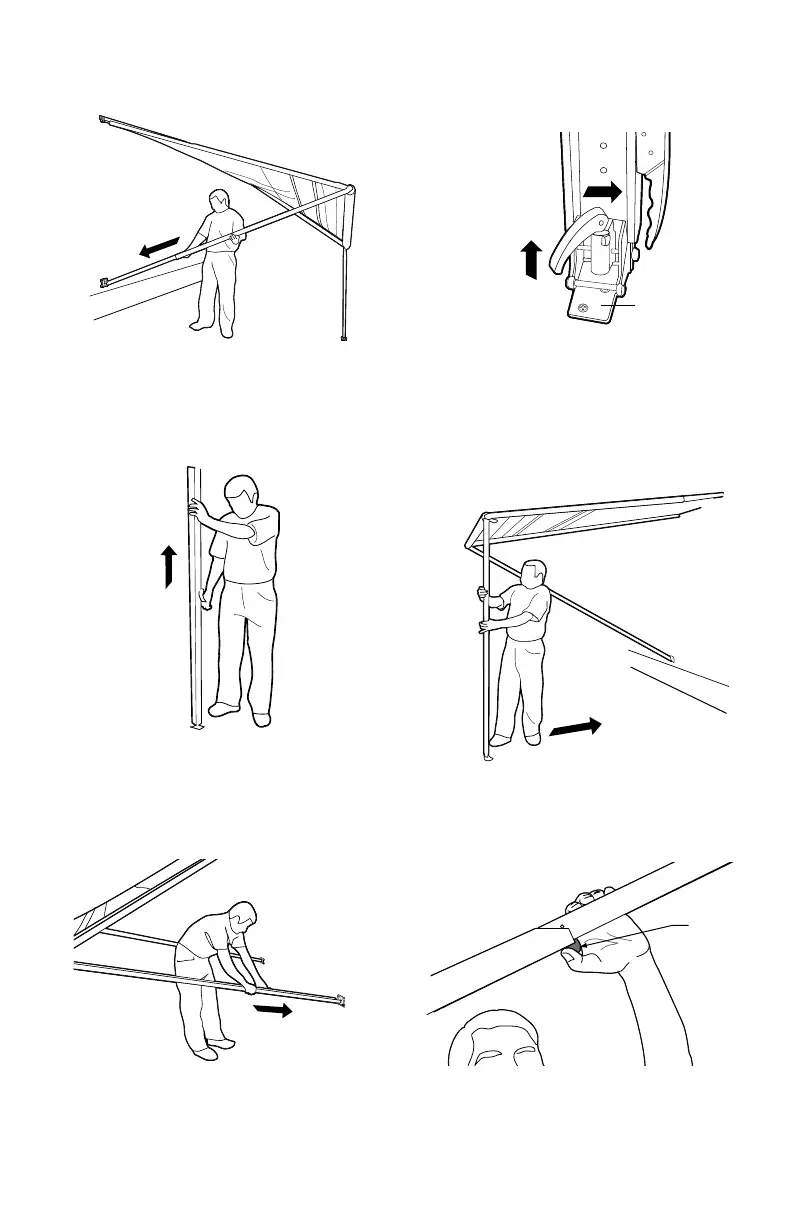

FIGURE 1
Using the hand crank, unroll the
awning until the front roller reaches
waist height.
FIGURE 2
Extend both arms until the front roller
reaches head height.
FIGURE 5
Lower both arms until the front roller
reaches waist height.
FIGURE 1
Lower the LEFT arm until the front
roller reaches head height.
FIGURE 2
Release the RIGHT arm from the deck
plate by lifting the ground bracket
handle and rotating approximately
1/4 turn counter-clockwise to unlock.
FIGURE 3
Extend this arm until the height of the
lift handle reaches waist height.
FIGURE 4
Swing the RIGHT arm back towards the
house and secure it to the wall bracket.
CLOSE:
FIGURE 6
Unlock both rafters by pressing the
rafter lock latch.
Deck Plate
UNLOCK
Rafter lock
Latch
FIGURE 9
Using the hand crank, roll up the awning
until it is completely against the house.
CAUTION: Once the awning is closed against
the house, do not continue cranking.
We recommend that the hand crank wand
be removed from the crank loop when it is
not in use to prevent damage to your house.
